NI High-Speed Digitizers Getting Started Guide

28

ni.com

Appendix C: Accessory Front Panels

This appendix describes the front panel and signal connections for the digitizer accessory.

NI 5900 Front Panel

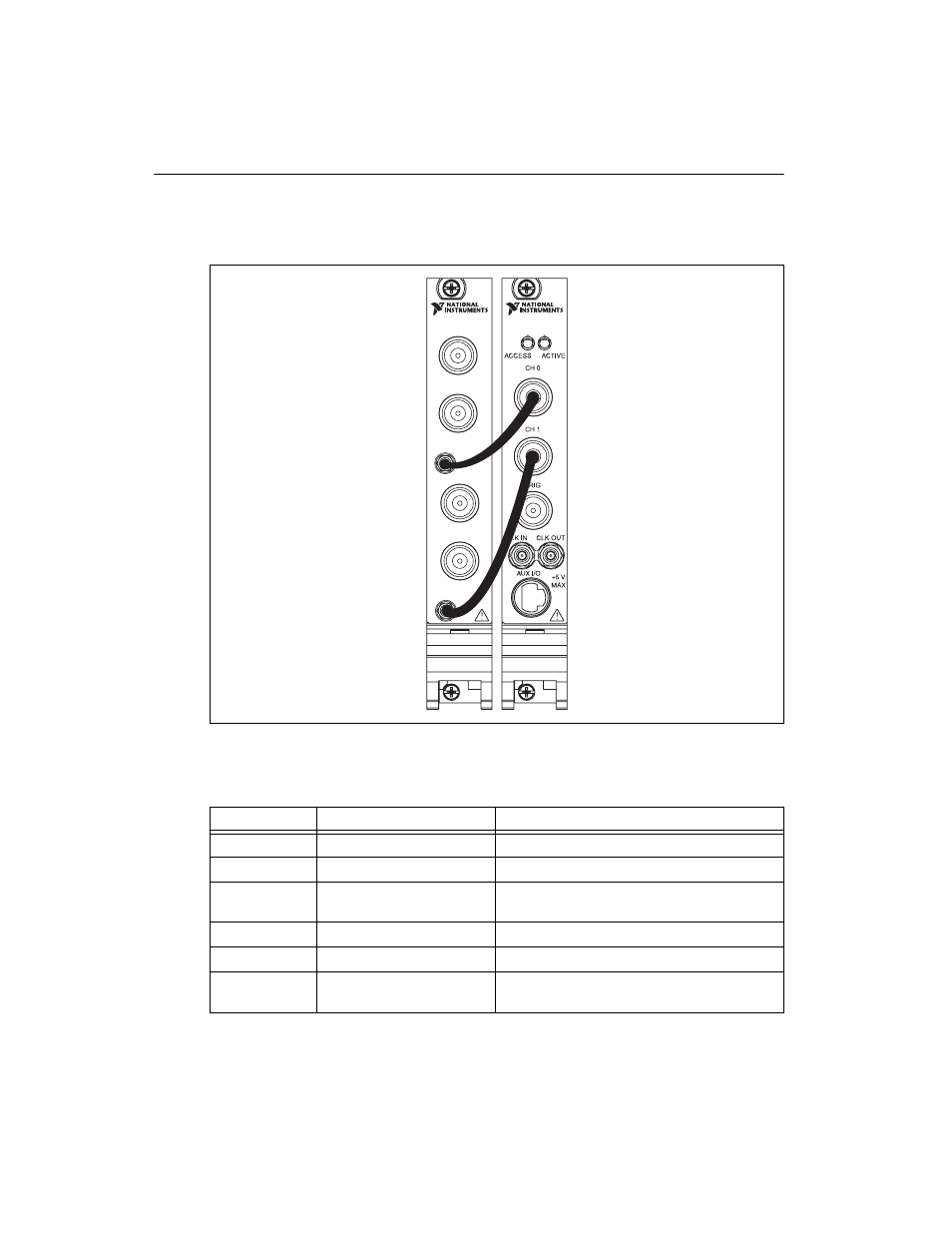

Figure 24 shows the NI PXI-5900 differential amplifier front panel and the connections to the NI 5922.

Figure 24.

NI 5900 Front Panel

Table 12 describes the signal connections for the NI 5900.

Table 12.

NI 5900 Front Panel Signal Connections

Connector

Description

Function

CH 0+

Standard BNC female connector

Differential analog input signal for channel 0

CH 0–

Standard BNC female connector

Differential analog input signal for channel 0

CH 0 OUT

Standard SMB jack connector

Single-ended analog output for channel 0;
approximately ((CH0+) – (CH0–)) / 4

CH 1+

Standard BNC female connector

Differential analog input signal for channel 1

CH 1–

Standard BNC female connector

Differential analog input signal for channel 1

CH 1 OUT

Standard SMB jack connector

Single-ended analog output for channel 0;
approximately ((CH1+) – (CH1–)) / 4

NI PXI-5922

CH 0 +

CH 0 -

OUT 0

NI PXI-5900

CH 1 +

CH 1 -

OUT 1
