NI 5132/5133 Front Panels

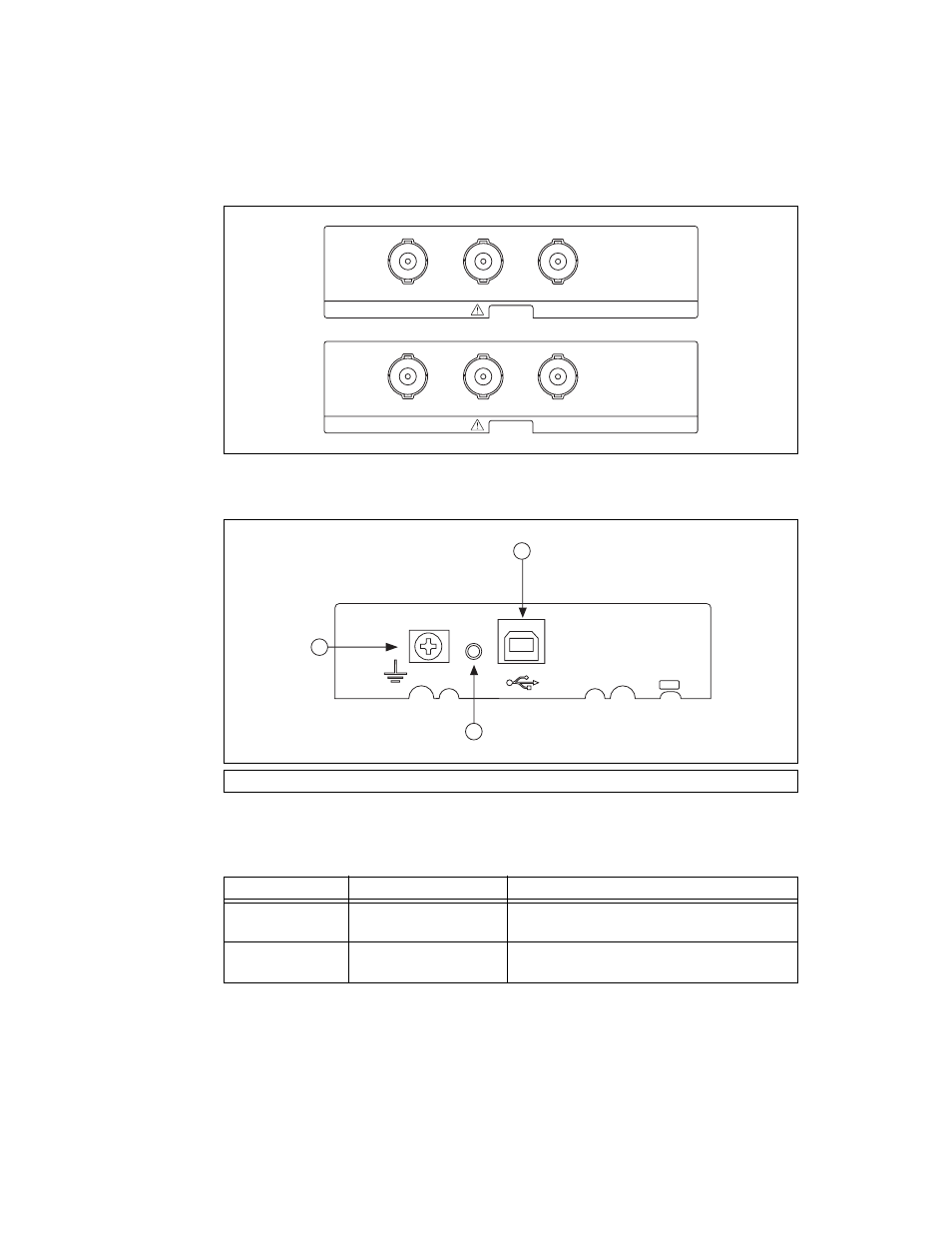

Figure 14 shows the NI USB-5132 and NI USB-5133 front panels.
Figure 14. NI 5132/5133 Front Panels
Figure 15 shows the NI 5132/5133 back panel.
Figure 15. NI 5132/5133 Back Panel
Table 4 describes the signal connections for the NI 5132/5133.
1 Recessed USB port 2 LED 3 Ground
Table 4. NI 5132/5133 Front Panel Signal Connections
Connector Description Function
CH 0,
CH 1 Standard BNC connector Analog input connection; digitizes data and triggers
acquisitions.
PFI 1 Standard BNC connector Multipurpose PFI line for sample clock in, digital
trigger in/out, and probe compensation.
CH 0
NI USB-5133
CH 1 PFI 1
8-bit, 100 MS/s Digitizer
CH 0
NI USB-5132
CH 1 PFI 1
8-bit, 50 MS/s Digitizer
