Mounting the USB-513x
You can use the USB-513x on a desktop or mount it to a standard DIN rail or a panel.
Desktop Use
The USB-513x has plastic guides on the underside that allow it to be stacked on top of other USB-513x
devices.
For secure desktop use, you can adhere the supplied rubber non-skid feet to the underside of the device,
as shown in Figure 7.
Note
Do not apply the rubber feet if you are panel mounting the USB-513x or stacking it on top of
another USB-513x device.

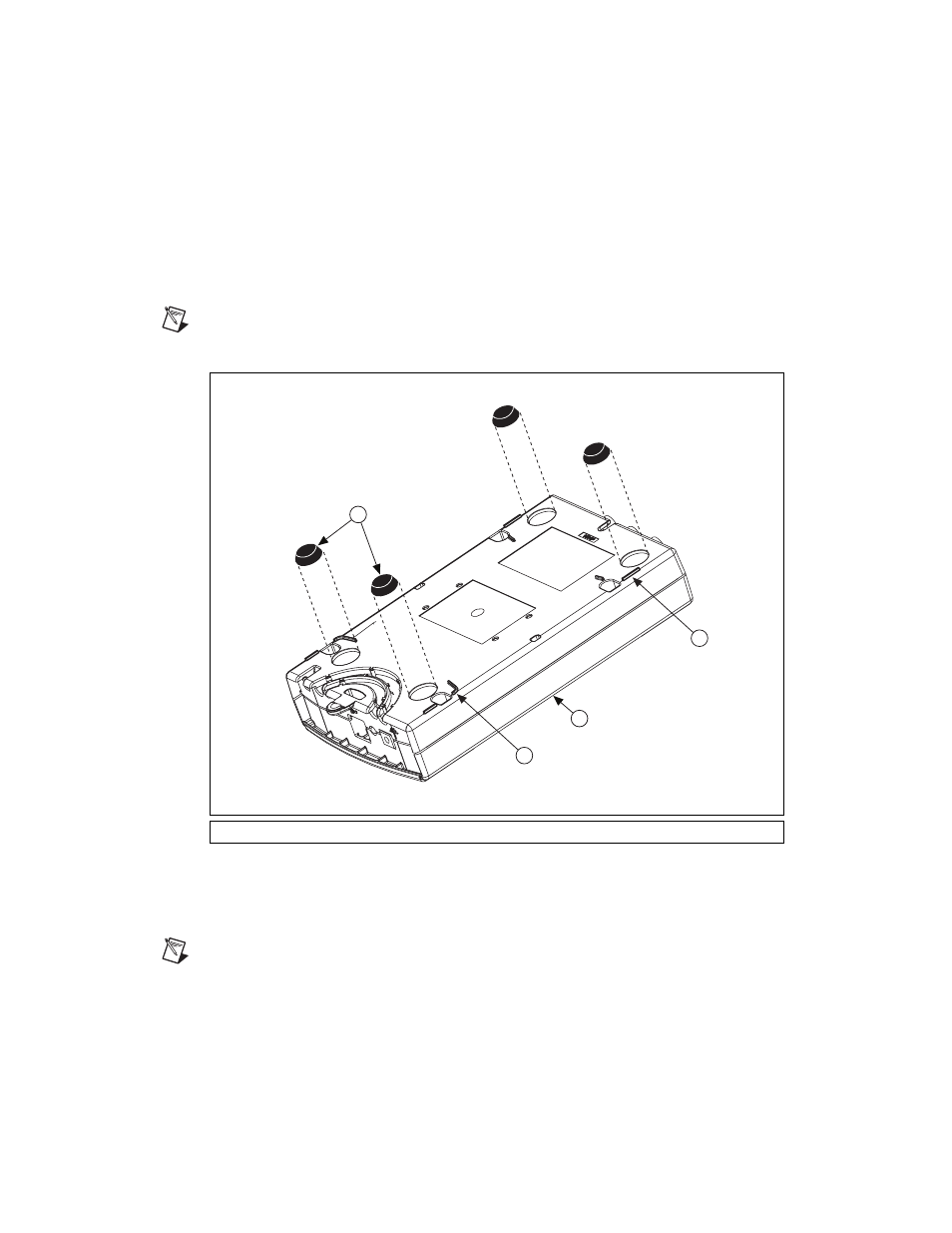

Figure 7.
Applying Rubber Feet to the USB-513x
DIN Rail Mounting
The DIN rail mounting kit (part number 779689-01, not included in your USB-513x kit) is an accessory
you can use to mount the USB-513x family of products to a standard DIN rail.
Note
Apply strain relief, as described in the
section, before mounting the
USB-513x to a DIN rail.
1
NI USB High-Speed Digitizer
2
Plastic Guides
3
Rubber Feet
3
2
2
1
