148

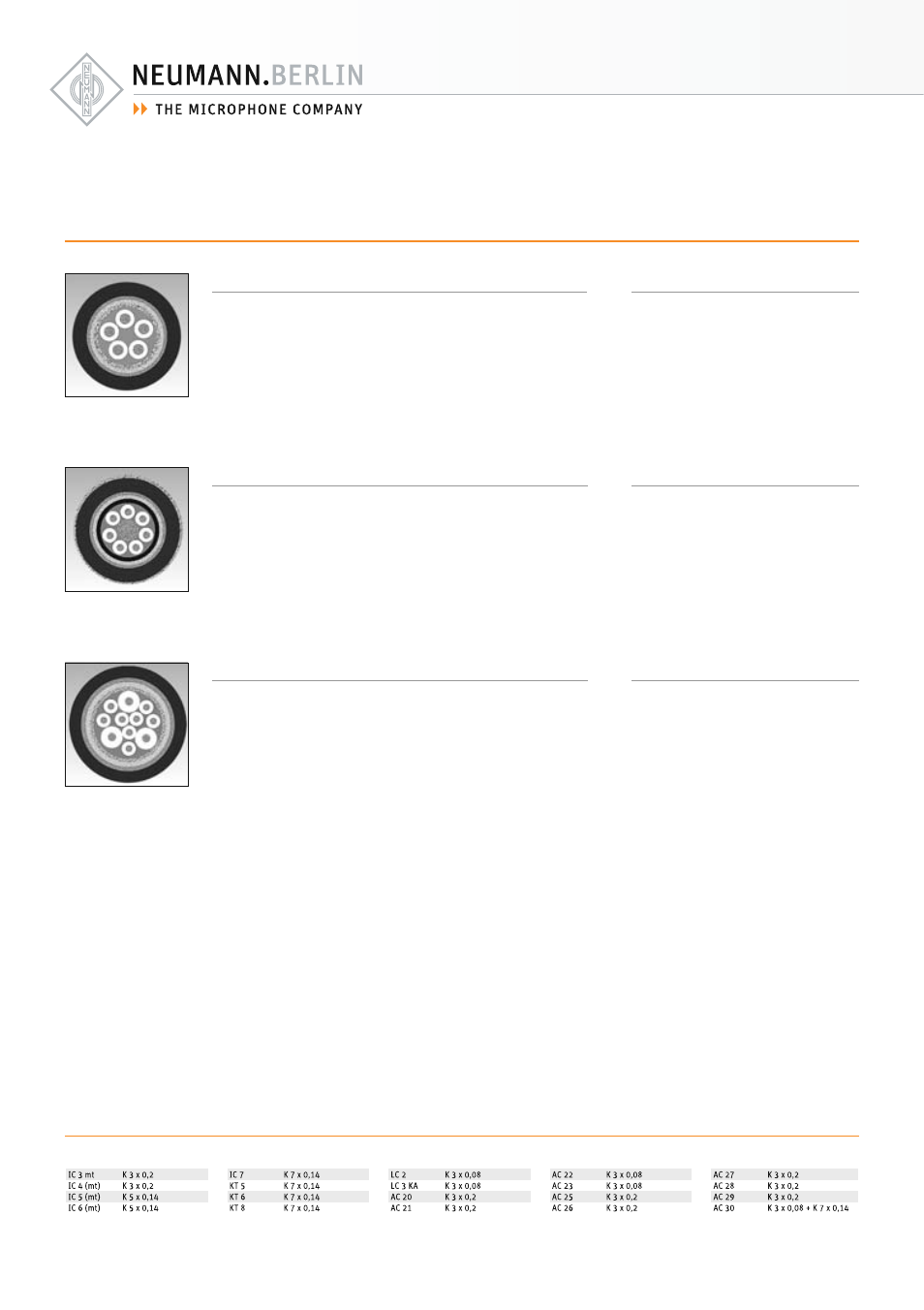

Cable Material for General Use
Conductor resistance .............. < 138 ohms/km
Insulation resistance ............ > 20 Mohms x km
Capacitance core/core ....... 110 nF/km (1kHz)
Test voltage core/core ........................... 1.2 kV
Test voltage core/shield ....................... 0.6 kV
Temperature range ................... –20° to +70°C
K 7 x 0,14 ............ blk ........ Cat. No. 062729
Conductor resistance
0.14 mm² .............................. < 138 ohms/km
0.5 mm² ................................... < 38 ohms/km
Insulation resistance ............ > 20 Mohms x km
Capacitance core/core .......... 95 nF/km (1kHz)
Test voltage core/core ........................... 1.2 kV
Test voltage core/shield ....................... 0.6 kV
Temperature range .................. –20° to +70°C
K 11 ..................... blk ........ Cat. No. 062699
Cable Material K 7 x 0,14
• 7 conductors 0.14 mm² copper wire 72 x 0.05 mm²
• Insulation: special thermoplastic
• Shielding: 2 layers of counterwound bare copper wire
• Jacket: special pvc matte charcoal-grey and round
• Printing “Georg Neumann GmbH Berlin - Made in Germany”
• Overall diameter: 5.0 mm
Cable Material K 11
• 3 conductors 0.5 mm² copper wire 256 x 0.05 mm²
• 8 conductors 0.14 mm² copper wire 72 x 0.05 mm²
• Insulation: special thermoplastic
• Shielding: 2 layers of counterwound bare copper wire
• Jacket: special pvc matte charcoal-grey and round
• Printing “Georg Neumann GmbH Berlin - Made in Germany”
• Overall diameter: 7.5 mm
Material used for Individual Cables
Conductor resistance .............. < 138 ohms/km
Insulation resistance ............ > 20 Mohms x km
Capacitance core/core .......... 40 nF/km (1kHz)
Test voltage core/core ........................... 1.2 kV
Test voltage core/shield ....................... 0.6 kV
Temperature range ................... –20° to +70°C
K 5 x 0,14 ............ blk ........ Cat. No. 062707
Cable Material K 5 x 0,14
• 5 conductors 0.14 mm² copper wire 72 x 0.05 mm²
• Insulation: special thermoplastic
• Shielding: 2 layers of counterwound bare copper wire
• Jacket: special pvc matte charcoal-grey and round
• Printing “Georg Neumann GmbH Berlin - Made in Germany”
• Overall diameter: 5.0 mm
