Installing the ARN
114200-E Rev 00 1-31
Installing the Flash Memory Card
Nortel Networks ships the router software on a PCMCIA flash memory card
(Figure 1-26) . The flash memory card provides storage for the Nonvolatile File
System (NVFS) in the ARN.

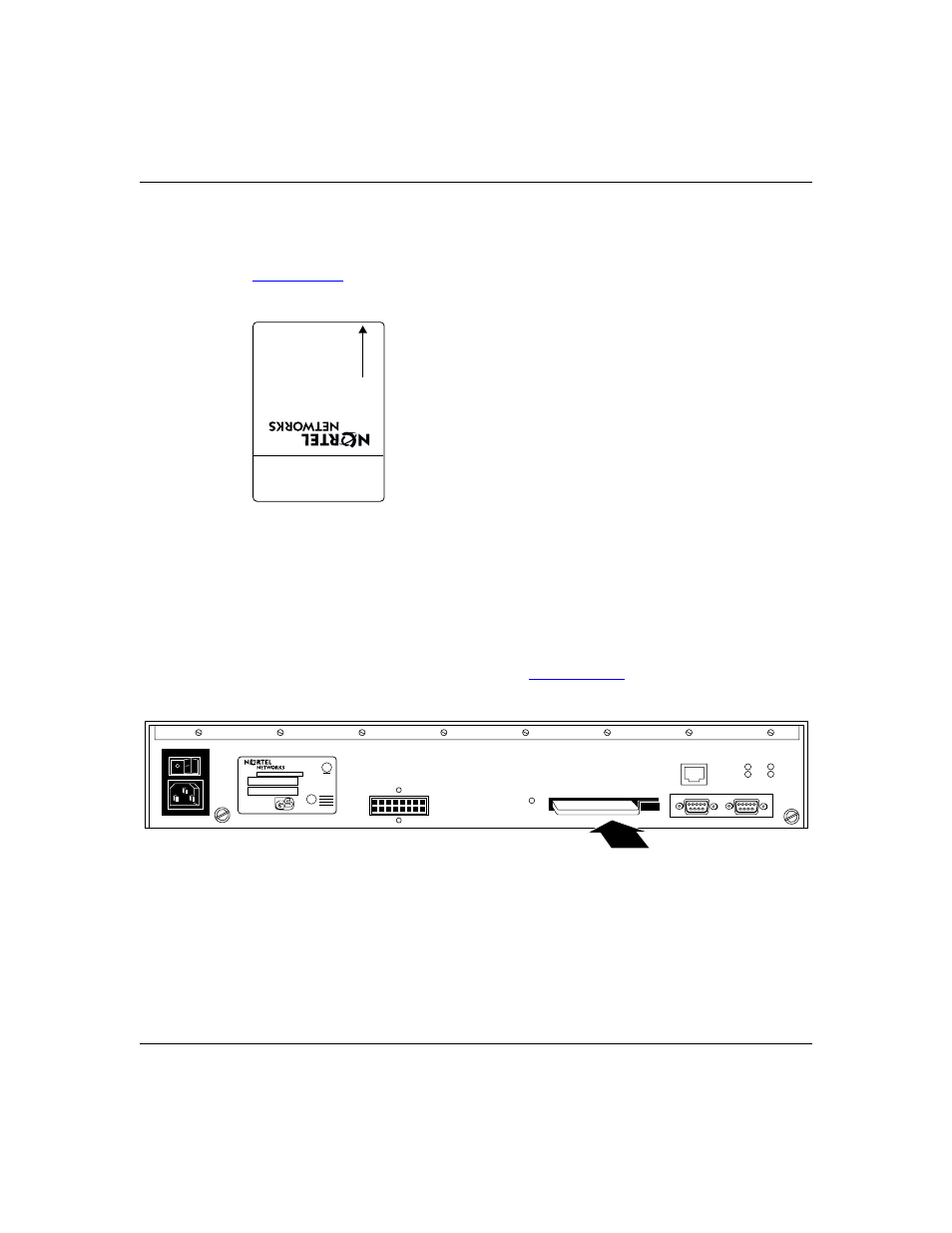

Figure 1-26. Flash Memory Card
Before starting the ARN, install the flash memory card supplied with the router:
1. Position the card with the label facing up and the INSERT arrow
pointing toward the card receptacle.
2. Insert the card into the receptacle (Figure 1-27) and gently push the card
until it fits snugly into place.
Figure 1-27. Inserting the Flash Memory Card in the ARN Receptacle
INSERT
AN0060A
ARN0018A
