Installing the ARN
114200-E Rev 00 1-29

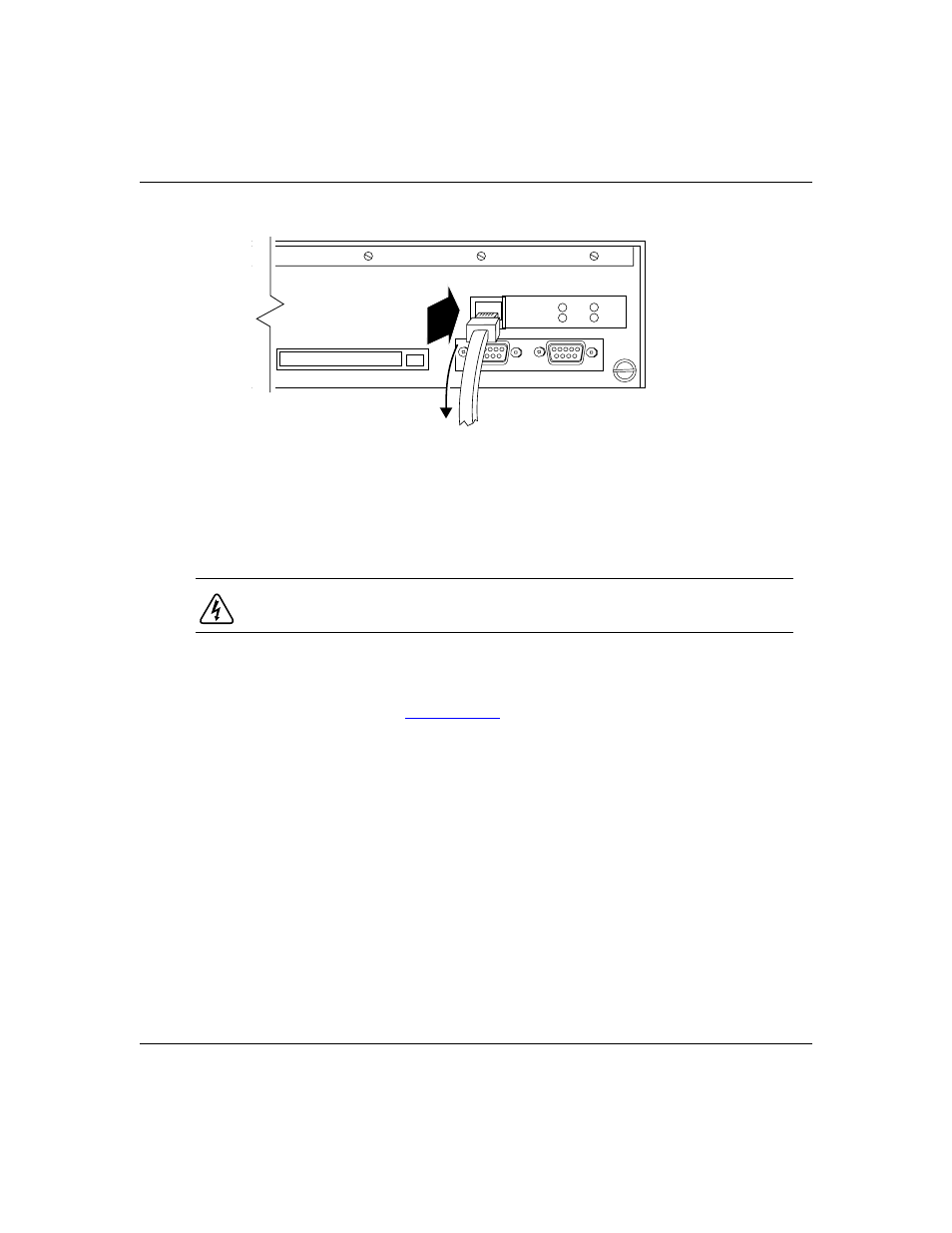

Figure 1-24. Connecting to an Integrated Console Modem
Connecting the Power Cable
To connect the power cable to the ARN, complete these steps:
1. Connect the power cable to the power connector on the left side of the
ARN back panel
(Figure 1-25) .
Danger: Be sure that the power switch on the ARN back panel is in the OFF
(0) position before you connect the power cable.
ARN0072A
Console
Modem
To
RJ-11 telephone
receptacle
Back-panel V.34 Modem Interface
Modem
Tx
Rx
RLSD
DTR
