Installing the ARN
114200-E Rev 00 1-25

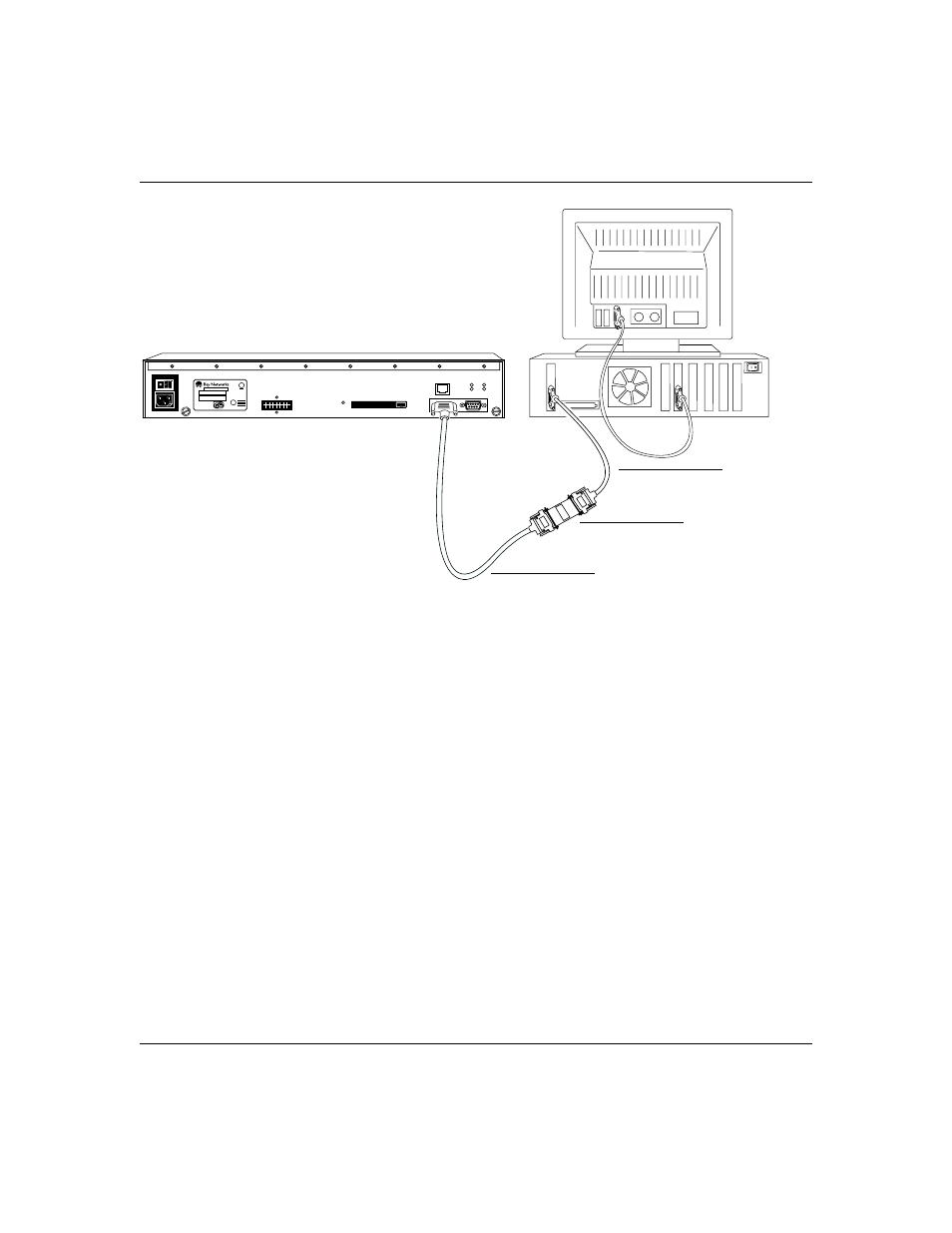

Figure 1-21. Connecting a PC Console to an ARN
Connecting a Terminal Console
To connect a terminal console to the ARN, you need both of these pieces in the
ARN console/modem cable kit (Order No. 110310):
• Serial console/modem cable with 9-pin receptacle to 25-pin plug connectors
(Order No. 110307)
• Null modem crossover adapter with two 25-pin receptacle connectors
(Order No. 110308)
Console cable
Null modem adapter
PC cable
ARN0056A
Modem
UL
UL
100-240~ 1.2A 50-60Hz
Redundant Power
