i2021 ISDN Teleset
58
Key Mapping
The i2021supports a local feature called Key Mapping. The purpose of the
Key Mapping feature is to allow features that have Feature Activators
higher than Key 16 to appear on a hardkey.
For example, the North American ISDN Users Forum (NIUF) recommends
using Key 57 as a Call Forward key. Key 57 defaults as a softkey on the
i2021 Teleset. Key Mapping will allow Feature Key 57 to be “mapped” to a
hardkey on the i2021. This may be useful, since the Teleset would now
light the hardkey’s adjacent LED when Call Forward Feature Key is active.

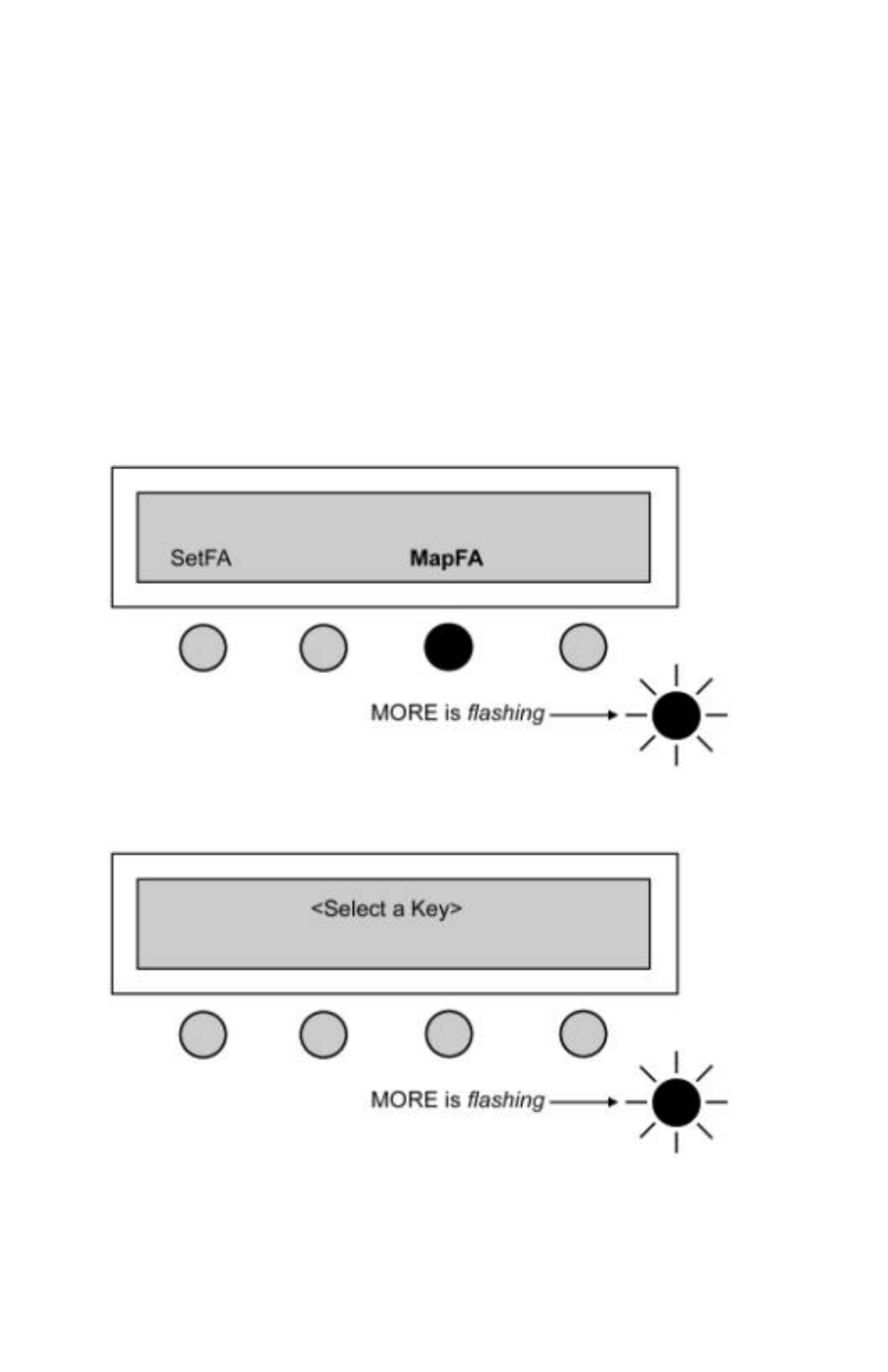

To remap a hardkey press MENU, MORE, MORE, Config, SetKey. The
display will now be:
Press MapFA and the display will be as shown below.
Press the hardkey that you would like to remap. If you select a key that is
not available you will be prompted to “Try Another Key.” When you select
an available key the display will show:
