Power Supply

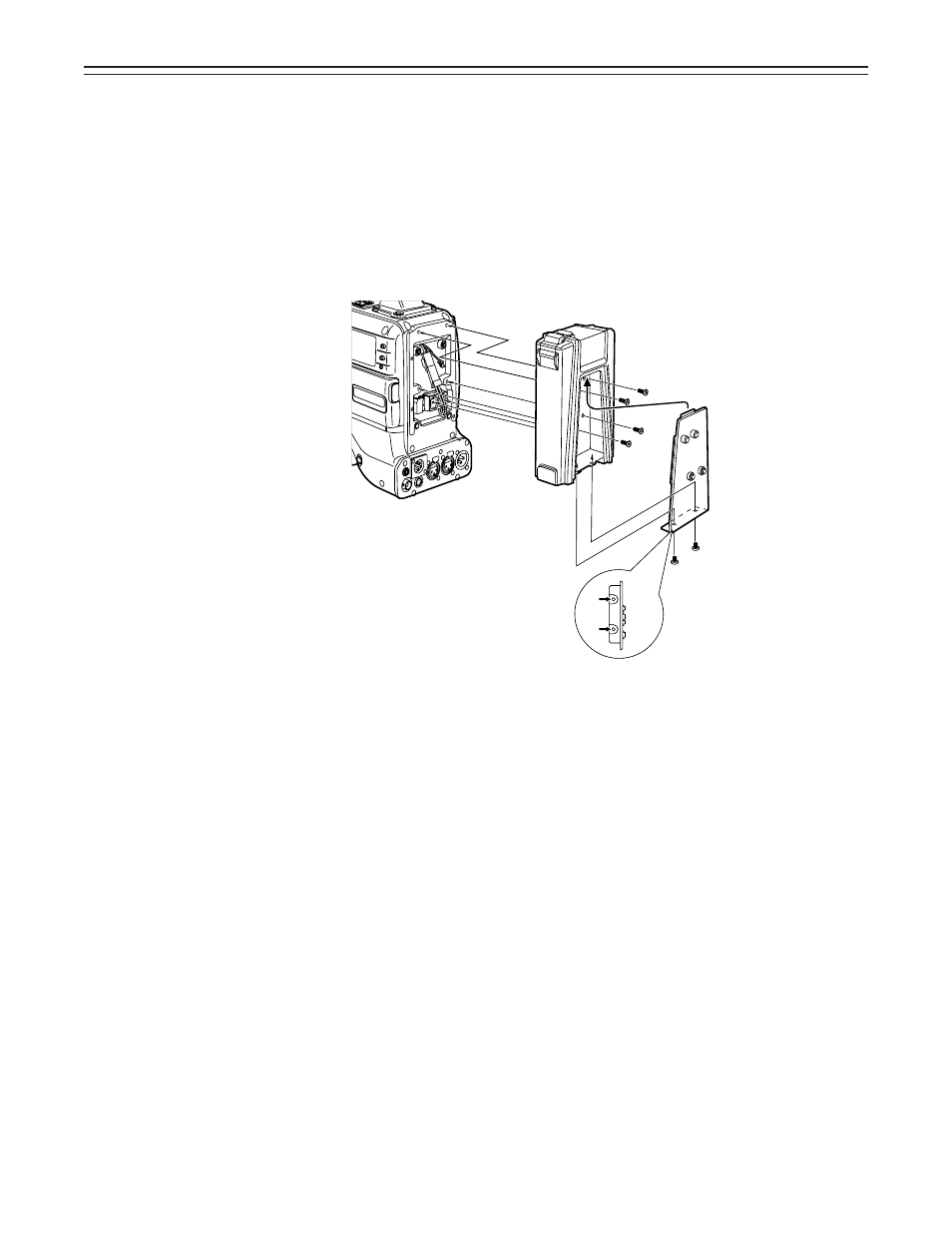

Using the Sony BP-90 Battery Pack
1
Mount the accessory battery mounting connector.
(See the preceding page.)
2
Mount the BP-90 battery case.
A Tighten the mounting screws.
B
Tichten the power supply contact screws.
C
Insert the top of the detached cover in the direction of the arrow.
D Align the hole at the bottom (metal part) of the cover with the bottom of the case and
mount the cover to the battery mounting connector with the screw.
| Notes {
Á
The unit’s power must be set to OFF before the plug is inserted or removed.
Á
Take care when attaching the battery case that the wires are not pinched.
