ENGLISH – 15
Getting Started

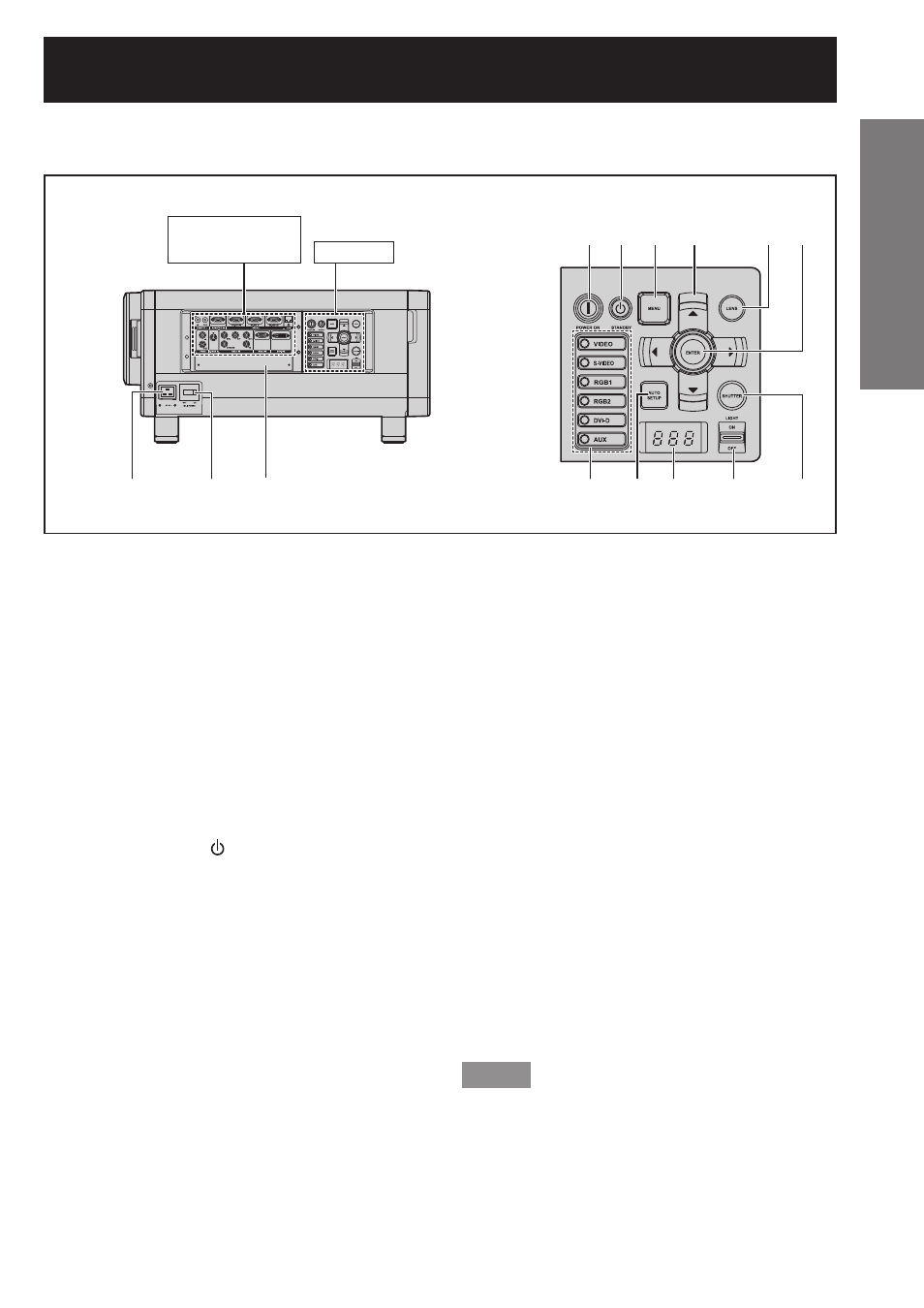

Controls
„
Side
„
1 AC IN terminal
(p. 37)
Connect the supplied line power cord into this
receptacle.
Do not connect any other cable to this socket.
2 MAIN POWER switch
(pp. 37-39)
Use this switch to turn on “I” and off “○” the
commercial line power applied to the projector.
3 Slot cover
(p. 31)
Install the optional input modules here.
4 POWER ON ( I ) button
(pp. 37, 38)
When the projector is in standby mode with the
MAIN POWER switch of the projector at the
“ l ” side, this button switches the projector to
projection mode.
5 POWER STANDBY ( ) button
(pp. 37, 39)
When the projector is in use, pressing this button
twice puts the projector into the Standby mode.
6 MENU button
(pp. 51, 53)
Use this button to return to the previous screen
when the sub menu is displayed. If you hold it
down for at least 3 seconds while the on-screen
indication is OFF, the OFF state is canceled.
7 Arrow ▲▼◄► buttons
(pp. 53, 88)
Use these buttons to select menu items,
change settings, adjust levels, and to enter the
“SECURITY” password.
8 LENS button
(p. 40)
Toggles through the lens Zoom, Focus, and Shift
(H & V) adjustment modes.
9 ENTER button
(p. 53)
Press to activate a menu selection or to initiate a
function.
j Input select (VIDEO, S-VIDEO, RGB1, RGB2,
DVI-D, AUX) button (p. 48)
Used to select the VIDEO, S-VIDEO, RGB1, RGB2,
DVI-D and AUX (optional input module) input
ports.
k AUTO SETUP button
(p. 49)
Pressing this button while projecting an image
automatically corrects the picture positioning
on the screen. While the auto setup feature is
active, a message “PROGRESS...” appears on the
screen.
l Self-diagnosis display
(pp. 118-119)
m LIGHT ON/OFF button
This switch is used for illuminating the connection
terminals and controls.
n SHUTTER button
(p. 48)
Pressing this button toggles the projector’s
internal mechanical shutter to black out the
projected image.
Note
The AUX input select button is enabled only when •
an optional input module is installed.
Connection
terminals (p. 16) Controls
1 2 3
4
j
5
k
6
l
7
m
8
n
9
