Location and function of each part
Front
„

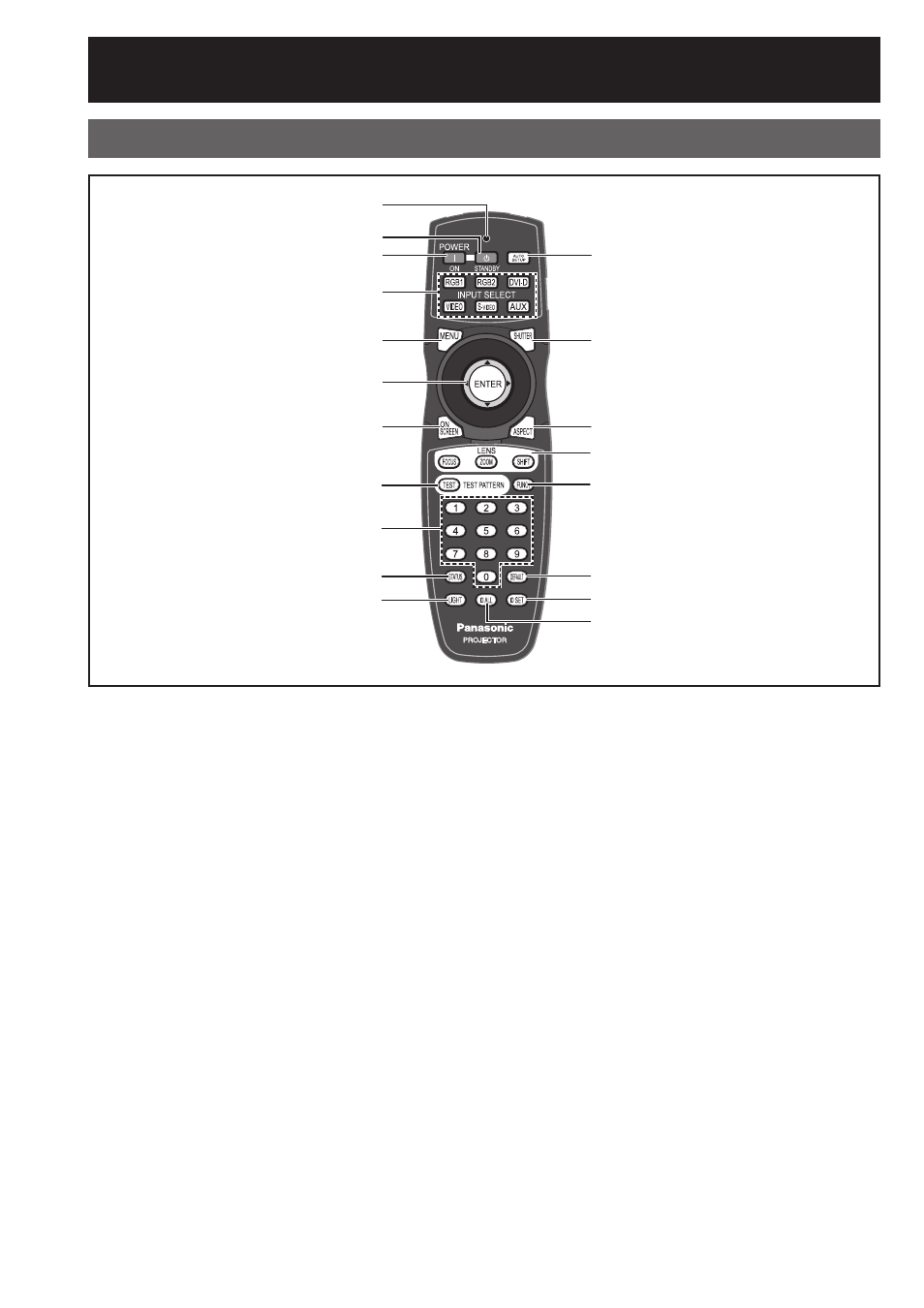

Remote control unit
1 Remote control operation indicator lamp
This LED flashes when any button is pressed. If
it doesn’t, check the side Lock switch and the
batteries.
2 POWER STANDBY button
(pp. 37, 39)
When the projector is operating, use this key to
enter the Standby mode.
3 POWER ON button
(p. 38)
When the projector is in standby mode with the
MAIN POWER switch of the projector at the
“ l ” side, this button switches the projector to
projection mode.
4 Input select (RGB1, RGB2, DVI-D, VIDEO,
S-VIDEO, AUX) button (p. 48)
These buttons select the RGB1, RGB2, DVI-D,
VIDEO, S-VIDEO and AUX (optional input module)
input ports.
5 MENU button
(pp. 51, 53)
Use this button to return to the previous screen
when the sub menu is displayed. If you hold it
down for at least 3 seconds while the on-screen
indication is OFF, the OFF state is canceled.
6 Arrow ▲▼◄►buttons
(pp. 53, 88)
Use these buttons to select menu items,
change settings, adjust levels, and to enter the
“SECURITY” password.
ENTER button (p. 53)
Press to activate a menu selection or to initiate a
function.
7 ON SCREEN button
(p. 48)
This buttons toggles the display of the onscreen
menus.
8 TEST PATTERN button
(p. 49)
Use this button together with the arrow keys to
display the internal test patterns.
9 Numeric (0-9) buttons
(pp. 18, 84)
These buttons are used in systems with multiple
projectors to enter projector ID numbers. They
may also be used to enter user-adjustment values
and by service personnel.
j STATUS button
(p. 48)
Press this button to display projector information.
It can also be used to send information about the
projector’s status via E-mail.
k LIGHT button
(p. 49)
Press this button to illuminate the remote control
buttons. The backlight will be extinguished
10 seconds after the last key press.
