X . C A R E A N D M A I N T E N A N C E
WARNING! Make sure the tire is completely
deflated before attempting repair.
Follow these easy steps for a quick and safe repair:
1. Completely deflate the tire if pneumatic.
2. Use a 3/4-in. socket wrench to remove the drive wheel nut from
the center hub of the wheel. See figure 47.
3. Pull the wheel off of the axle.
4. Remove the bolts that hold the wheel halves together.
5. Remove the old tube and/or tire and replace it with a new tube
and/or tire.
6. Reassemble the wheel.
7. Slide the wheel back onto the shaft.
8. Install the drive wheel bolt into the center hub and tighten.
9. Inflate the tire to 30 – 35 psi.

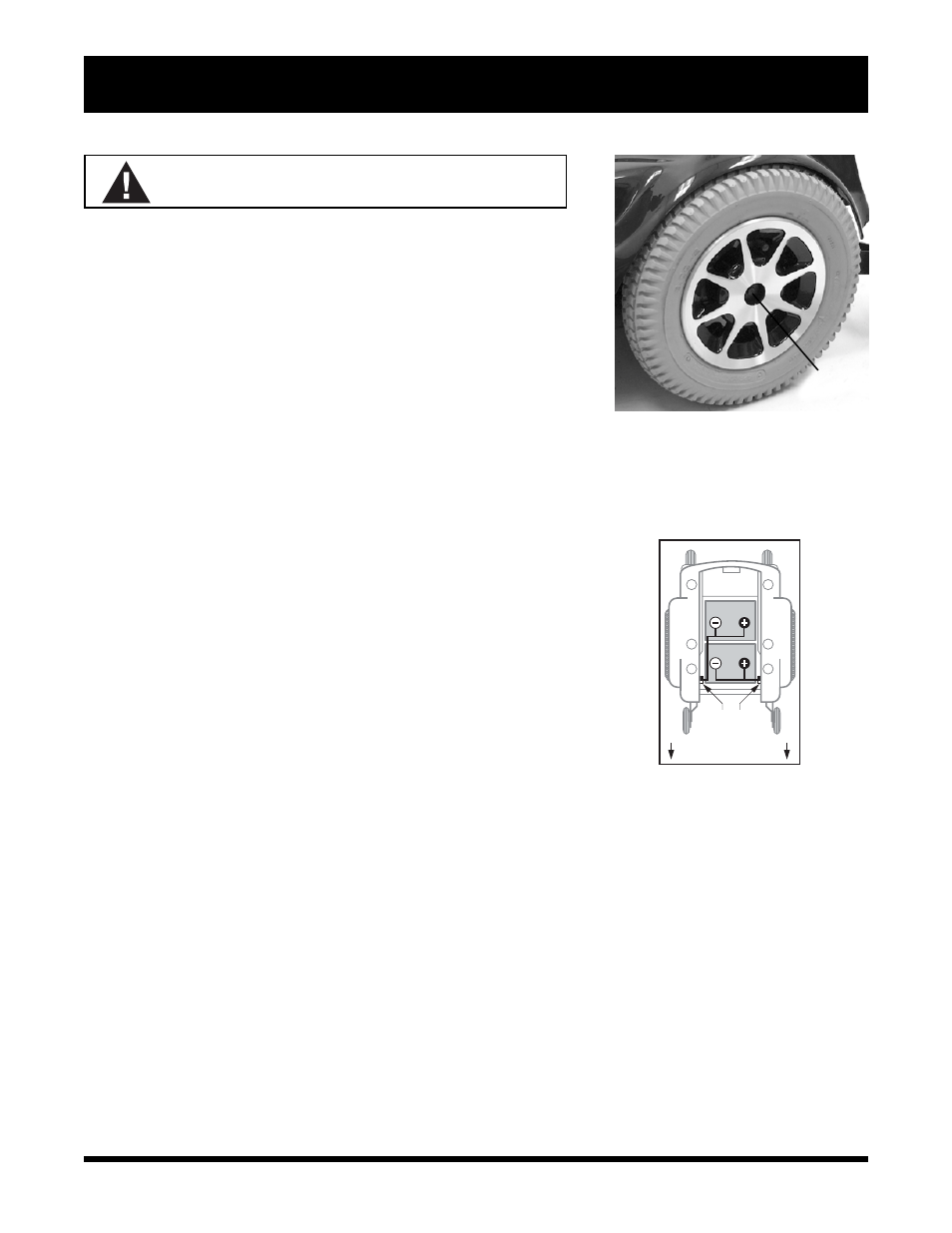

Figure 47. Drive Wheel
DRIVE
WHEEL NUT
BATTERY REPLACEMENT
To replace the battery:
A diagram is printed on a decal on the Jazzy 1120
2000
frame near the bat-
tery tray. See figure 48.
1. Remove 5/16-in.detent pin from the bottom of the foot frame.
2. Lift the foot frame straight up.
3. Locate the two wiring harnesses that will be attached to your batteries.
4. Disconnect these two harnesses from their respective quick discon-
nects by pulling the quick disconnects toward you.
5. Remove batteries from the powerbase assembly.
6. Disconnect the battery harnesses from the positive and negative terminals.
7. Replace old batteries with new ones. Figure 48. Battery Connections
FRONT
BATTERY
BATTERY
QUICK
DISCONNECT
NOTE: It is easier to connect the harnesses to the batteries when you have the batteries away from your Jazzy.
This gives you more room to work.
8. Connect the wire labeled BAT (+) to a battery’s positive (red) terminal. Connect the wire labeled BAT (-) to the
negative (black) terminal. Install the battery in the rear of your Jazzy’s battery tray with the battery’s terminals
facing inward, towards the center of the Jazzy. Plug the wiring harness into a quick disconnect.
9. Connect the wire labeled BAT (+) to the other battery’s positive (red) terminal. Connect the wire labeled BAT
(-) to the negative (black) terminal. Install the battery in the front of your Jazzy’s battery tray with the battery’s
terminals facing inward, towards the center of the Jazzy. Plug the wiring harness into a quick disconnect.
10. Replace the foot frame using the 5/16-in. detent pin to secure.
NOTE: It is important to be sure that your battery connections are tight and secure.
