UTILITY TRAY
The utility tray is located on the rear of your Jazzy. The utility tray is located underneath the rear sliding door. The
utility tray consists of the ammeter, the battery charger plug, the main circuit breaker, accessory connector (op-
tional equipment), and the controller harness connectors. See figure 6.
n Ammeter: The ammeter displays the charger’s current output in amps. See figure 6. For more information,
see IX. “Batteries and Charging” in this manual.
n Battery Charger Plug: This plug is used whenever your battery needs recharging. See figure 6.
n Main Circuit Breaker: The main circuit breaker is a safety feature built into your Jazzy. See figure 6. When
the batteries and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to
prevent damage to the motors and the electronics. If the circuit trips, allow your Jazzy to “rest” for approxi-
mately one minute. Next, push in the circuit breaker button, turn on the joystick controller, and continue normal
operation. If the main circuit breaker continues to trip repeatedly, contact your authorized Pride provider.
n Accessory Connector (Optional): This is where the optional harness connects to the controller (power seat,
lighting).
n Controller Harness Connectors: This is where the joystick connects to the motors, batteries, and charger.
If your Jazzy is equipped with a Remote Plus or Europa controller, there is only one connector on the tray. If
your Jazzy is equipped with a Pilot controller, there are two connectors on the tray. See figures 3 through 5 to
view the controller harness connectors.
n Power Seat Connector (Optional): This is for the optional power seat switch. See figure 6.

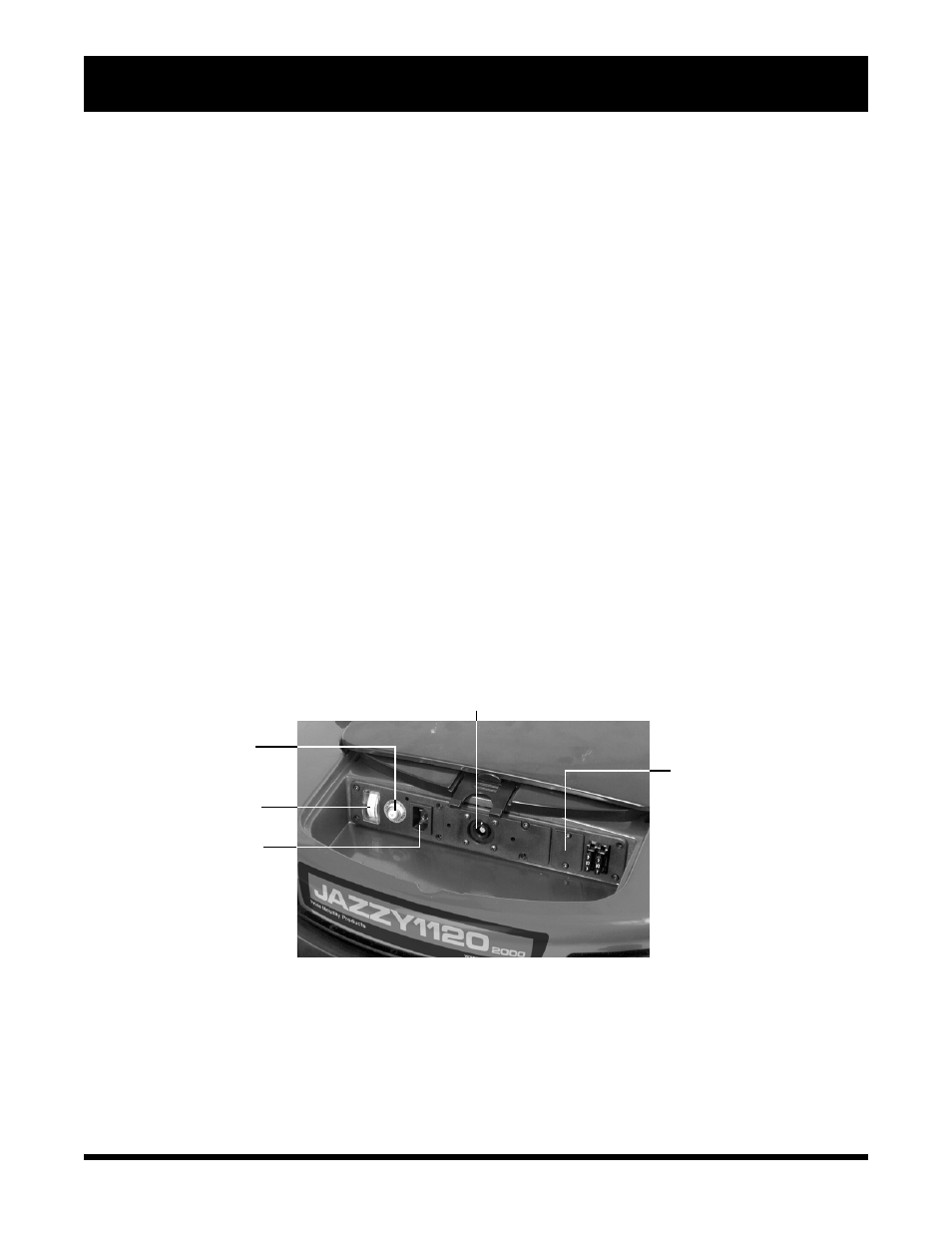

Figure 6. Utility Tray
AMMETER
OPTIONAL POWER SEAT
CONNECTOR LOCATION
REMOTE PLUS CONTROLLER HARNESS CONNECTOR
BATTERY CHARGER PLUG
MAIN
CIRCUIT
BREAKER
