EUROPA REMOTE CONTROLLER
The Europa Remote controller system consists of the joystick (see
figure 42) and the power module. This means that all of the pro-
gramming is done within the joystick and the power module reacts
accordingly. The power module is located underneath the front of
the power base. The Europa joystick is typically located at the end
of either the right or the left armrest.
Joystick Functions
The joystick function is similar for all controller configurations. The
joystick controls the direction and speed of the wheelchair. See
figure 43. When you move the joystick from the neutral (center)
position, the electromagnetic brakes release and allow the wheel-
chair to move. The further you push the joystick from its neutral
position, the faster your Jazzy moves. When you release the joy-
stick and allow it to return to the neutral position, you engage the
electromagnetic brakes. This causes the chair to decelerate and
come to a complete stop. If your Jazzy begins to move in an unex-
pected manner, immediately release the joystick. Unless the joy-
stick is damaged, this action should stop your Jazzy.
WARNING! Do not use the on/off key to stop
the chair. This may cause injury.
Battery Condition Meter
The battery condition meter consists of six LEDs arranged in an arc
over the battery level indicator icon. See figure 42. From left to
right, the first two are red, the second two are orange, and the last
two are green. These lights are an accurate indication of your us-
able battery capacity. If the battery has at least 85% of its rated
capacity, all of the LEDs will be on. As the battery voltage drops,
the number of LEDs reduces from right to left. When the battery
capacity drops to 10% or below, all of the LEDs flash at the rate of
one per second.
Magnetic Locking Area
The Europa keypad is equipped with a feature that enables you to
“lockout” unauthorized users. For this function, you need the mag-
netic key supplied with your Jazzy. If you lose this key, contact your
authorized Pride provider.

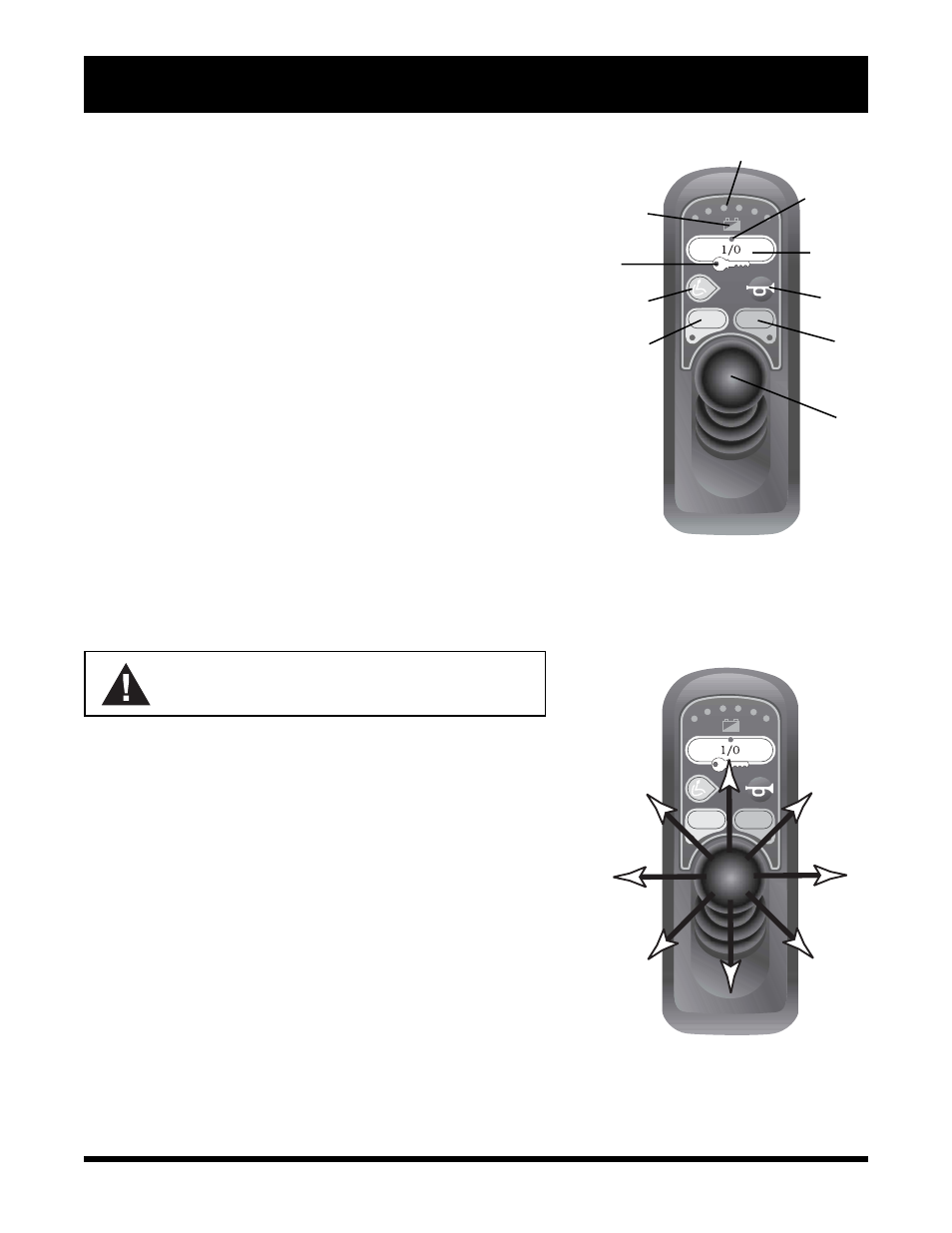

Figure 42. Europa Remote
Controller
Figure 43. Joystick Movement
ON/OFF
KEY
SYSTEM
STATUS
INDICATOR
BATTERY CONDITION METER
MAGNETIC
KEY
DRIVE MODE
SELECT KEY
ACTUATOR
KEY
HORN KEY
ACTUATOR
KEY
JOYSTICK
BATTERY LEVEL
INDICATOR
