WAN Circuit Configuration—Modify
Clicking on the Configuration link in the T1/E1 Link Activity window displays the WAN Circuit Configura-
tion—Modify window. From this window, you can change line interface settings, signalling settings, test set-
tings, and change the T1/E1 pulse shapes.

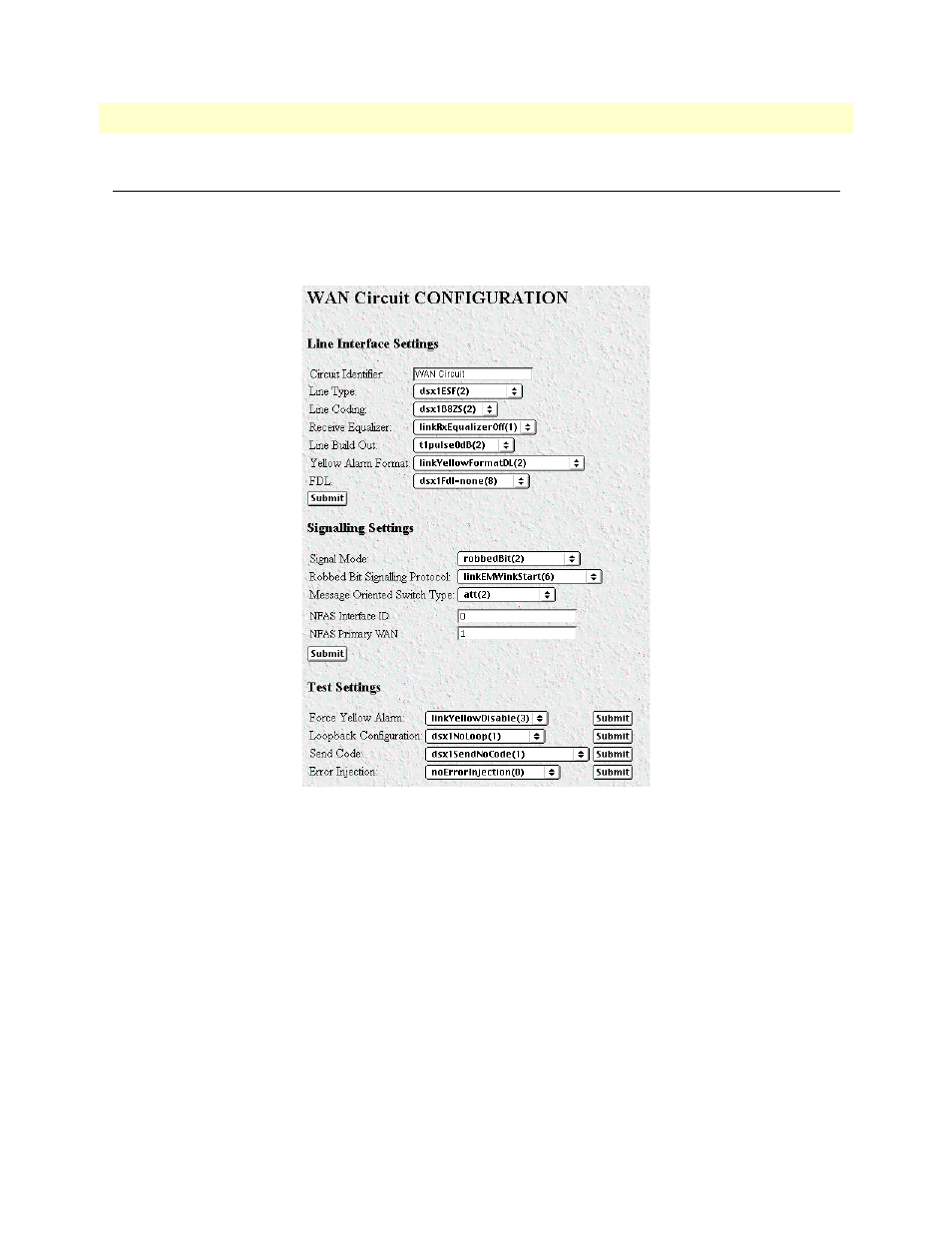

Figure 106. WAN Circuit Configuration—Modify window
Note Use the DAX menu to view clock source for the Model 29XX series access
servers.
Line Interface Settings
This portion of the WAN Circuit Configuration window contains information described in the following
sections.
Circuit ID (dsx1CircuitIdentifier)
This variable contains the transmission vendor’s circuit identifier, for the purpose of facilitating
troubleshooting.
