Introduction 232
Access Server Administrators’ Reference Guide 20 • System
Introduction
The System main window (see figure 94 ) contains general setup information about the access server. System
parameters are Patton Enterprise MIB object identifiers, though some are contained in RFC 1213, Manage-
ment Information Base for Network Management of TCP/IP-based internets: MIB-II. Click on
System under the
Configuration Menu to display the System main window.

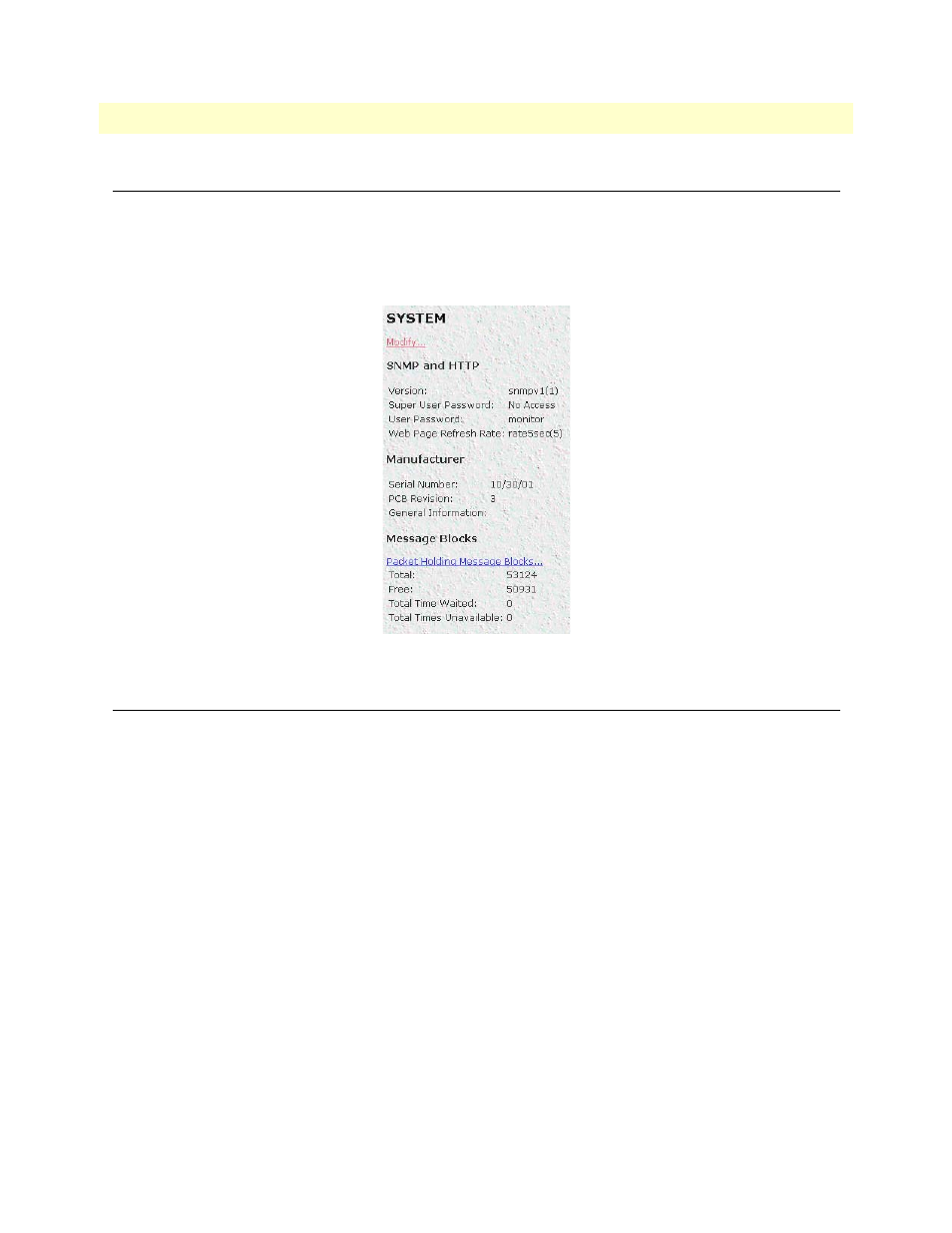

Figure 94. System main window (SNMP and HTTP, Manufacturer, and Message Blocks)
System main window
From this window you can view SNMP and HTTP, manufacturer, and message block information.
The main window also has the following links:
• Modify—click on this link to change SNMP and HTTP, payable features, country of installation, and other
parameters (see
“System—Modify window” on page 237)
• Packet Holding Message Blocks—click on this link to view message block statistics (see “System—Packet
Holding Message Blocks...” on page 239)
This section describes certain CPU utilization parameters.
SNMP and HTTP
This portion of the System main window contains information described in the following sections (see
figure 94 on page 232).
Version (boxSnmpVersion)
This parameter indicates the SNMP version number supported by this unit (for example snmpv1(1) means
SNMP version 1 is supported). SNMP2 is not currently supported.
