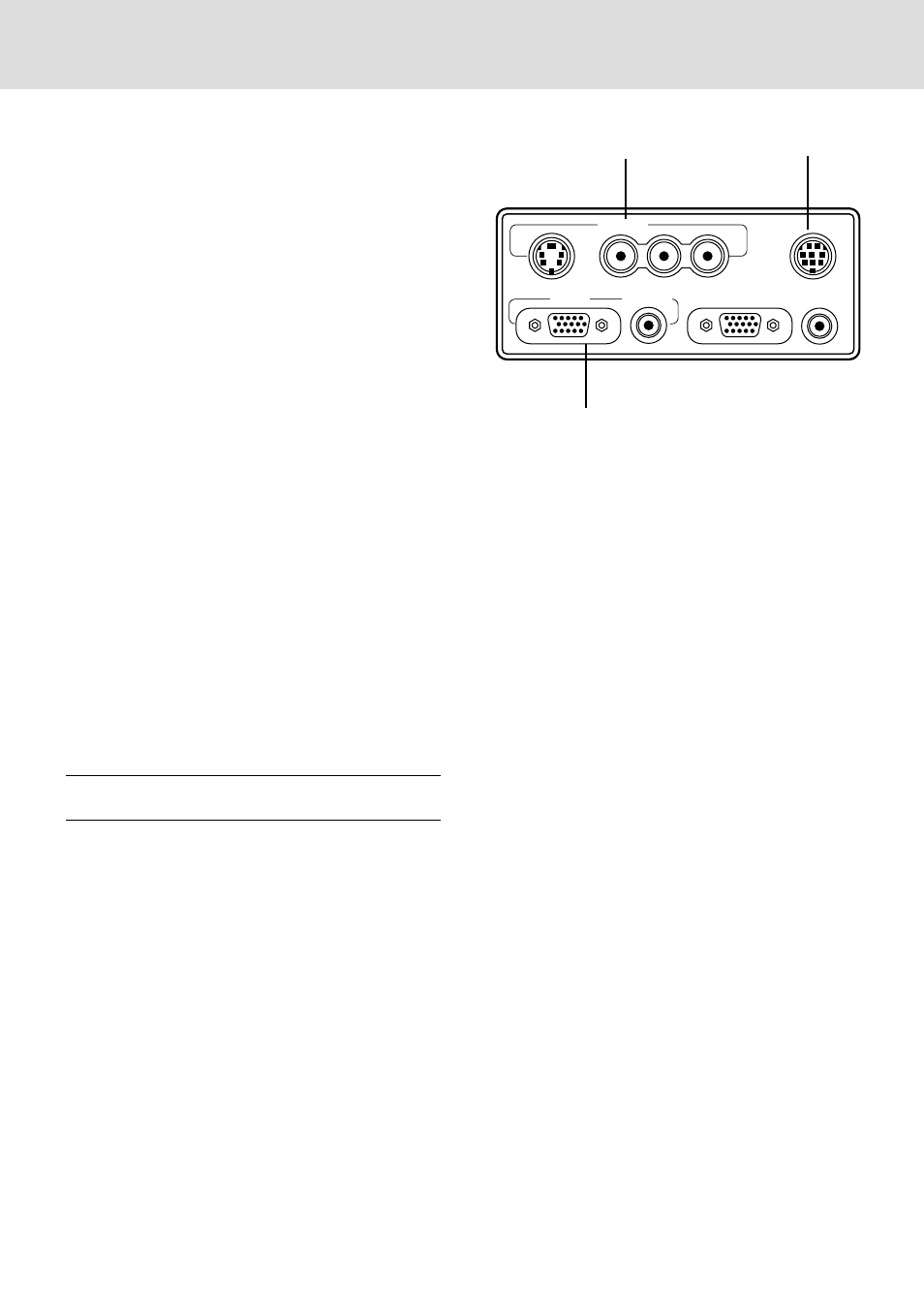

Terminal Panel Features
This panel is located in the side and is where you connect your
cables.
1 Video Input
Connect a VCR, laser disk player, or document camera
here to project video.
Left Channel/Mono Audio Input Jack
This is your left channel audio input for stereo sound
coming from video equipment or audio system. This also
serves as your monaural audio input.
Right Channel Audio Input Jack
This is your right channel audio input for stereo sound.
S-Video Input
Here is where you connect S-Video input from an exter-
nal source like a VCR.
2 PC Control Port
Port for settings at time of shipment from factory.
3 RGB Input Connector (D-Sub 15 pin)
Connect your PC or other RGB equipment such as IBM
or compatible computers. Use the signal cable that's sup-
plied to connect to a PC.
RGB Audio Input Mini Jack
This is where you connect RGB audio output from a
computer or another RGB source.
NOTE: S-Video provides more vivid color and higher resolution
than the traditional composite video format.
