E – 13
2
350
300
250
200
150
100
50
0
0.0 6.56 13.12 19.69 26.25 32.81 39.37 ft.
(2.0) (4.0) (6.0) (8.0) (10.0) (12.0) (m)
Projection Distance
Diagonal
Size
(inch)

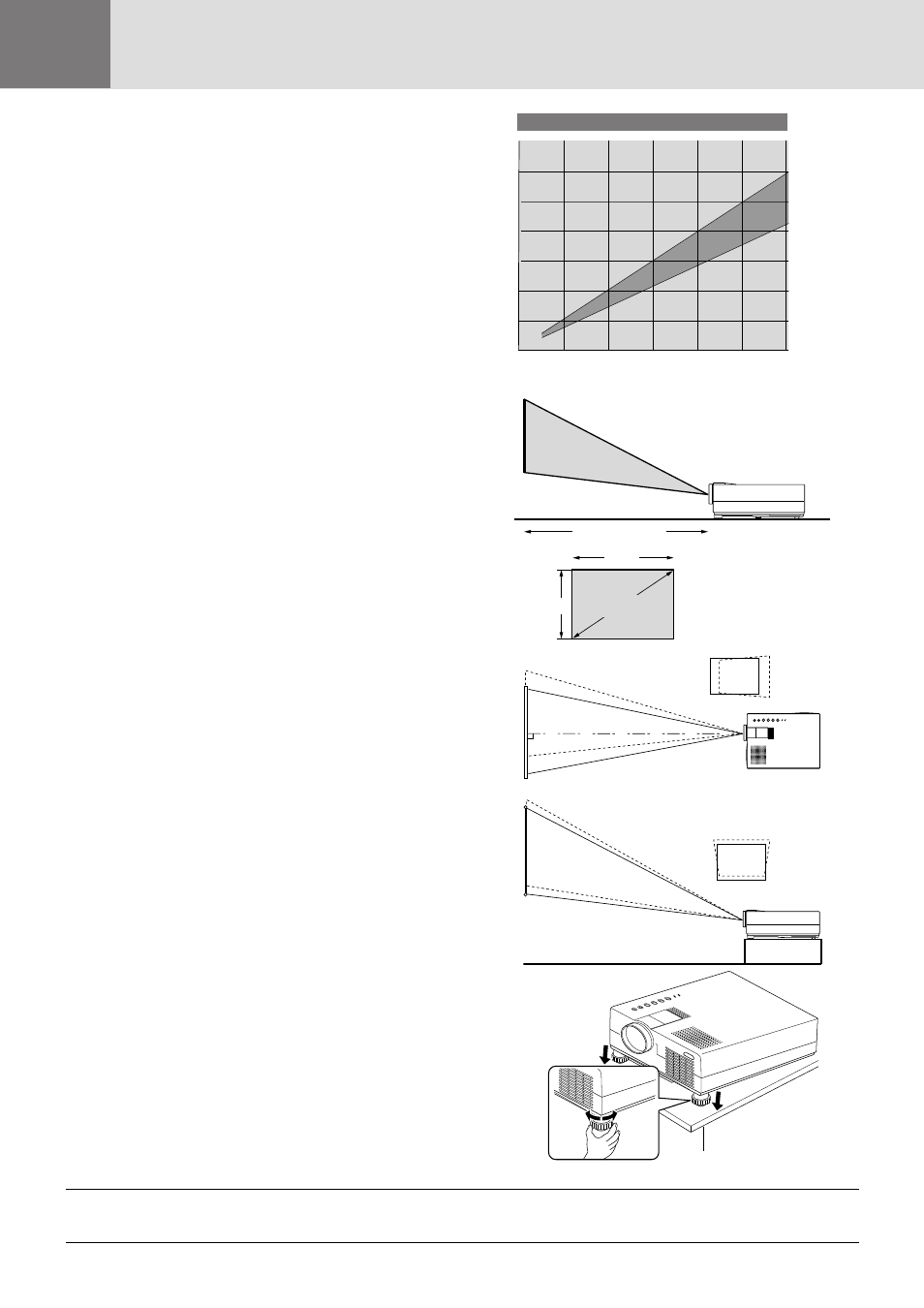

Projection Distance and Image Size
300”
235”
WIDE
TELE
27”
Width
Height
Screen size
(diagonal)
Projection distance
Using A Tabletop Or Cart
1. Place your Data projector on a flat level surface at the
optimal distance from the screen or wall so you realize
the size image you want. (Avoid having bright room
lighting or sun light directly on the screen or wall where
you'll be projecting the image.)
2. Connect the power cable, remove the lens cap and turn
the projector on. (If no input signal is available, the
projector will display a background image.)
3. Make sure that the projector is square to the screen.
4. Move the pr ojector left or right to center the image hori-
zontally on the screen. (A)
5. To center the image vertically (B),
6. To fine tune the image's position vertically on the screen,
rotate each front foot.
7. Adjust the size of the screen with the zoom ring lever on
the projector main unit.
Adjustment method
1. Set the adjuster to the most tight state.
2. If the screen is at an angle, turn the two adjusters to tilt
the main unit and adjust until the main unit and screen are
parallel.
(A) Top view
(B) Side view
Screen
Screen
PL US
UP DOWN
This section describes how to set up your UP-800 Data
projector and how to connect video and audio sources.
Setting Up Your UP-800 Data Projector
Your UP-800 Data Projector is simple to set up and use. But
before you get started, you must first:
1. Determine the image size
2. Set up a screen or select a non-glossy white wall onto
which you can project your image.
Carrying The Data Projector Always carry your Data projec-
tor by the carring case. Ensure that the power cord and any
other cables connecting to video sources are disconnected
before moving the projector. When moving the projector
or when it is not in use, cover the lens with the lens cap.
Selecting A Location The further your Data projector is
from the screen or wall, the larger the image. The mini-
mum size the image can be is approximately 24" (0.61 m)
measured diagonally when the projector is roughly1.0 m
(3 feet) from the wall or screen. The largest the image can
be is 300" (7.6 m) when the projector is about 12.0 m
(39.37 feet) from the wall or screen.
Note: Adjust with the adjustors so that the lens surface is parallel to the screen. If you use the projector with the screen tilted, the picture will
be distorted.
I N S T A L L A T I O N
