E – 16

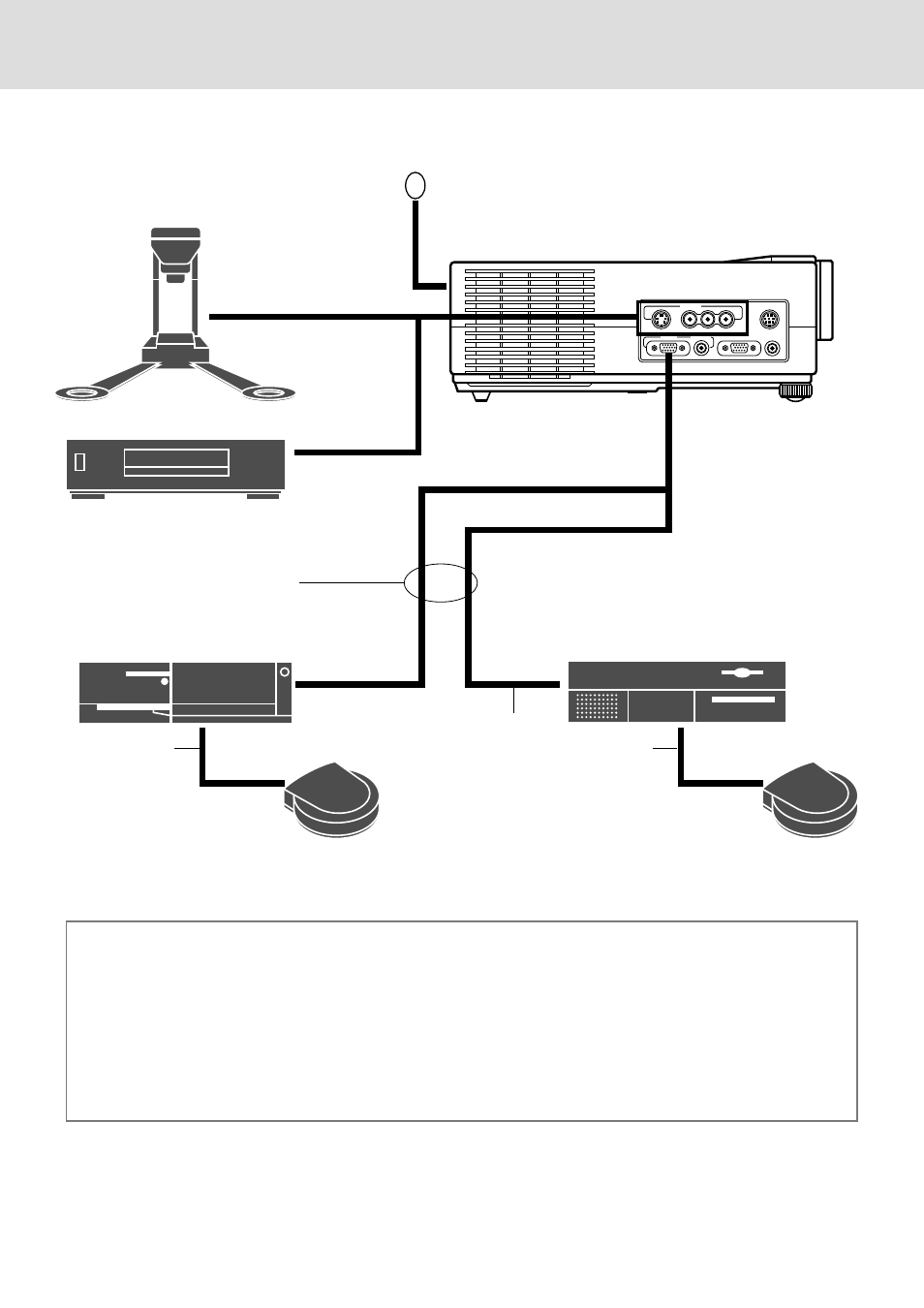

Wiring Diagram
Remote Control Guideline
1. Plug the serial cable with the remote mouse receiver into your computer's mouse port and restart your computer to gain
remote mouse control.
2. When using the remote control's built-in infrared mouse on a laptop computer, the laptop's mouse, trackball or trackpad
will be disabled. Disconnect the infrared receiver and restart your computer to regain trackball or trackpad mouse
control.
3. If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power
management software. If you accidentally hit the OFF button on the remote control, wait one full minute and then press
the ON button to resume.
PC CONTROL VIDEO IN
S-VIDEO VIDEO L/MONO · AUDIO · R
AUDIO IN AUDIO OUT RGB IN RGB OUT
c
Document Camera
To AC power output
VCR or LaserDisk Player
IBM VGAor Compatibies
Remote Mouse Receiver Remote Mouse Receiver
Macintosh or Compatibles
To video,S-video,
and audio inputs on
the LCD projector.
IBM/MAC MultiCable
To mini D-Sub 15-pin connector on the
Data projector.
PS/2 mouse adapter
(supplied)
Mac ADB adapter
(supplied)
Monitor adapter
To video,S-video,
and audio inputs on
the Data projector.
