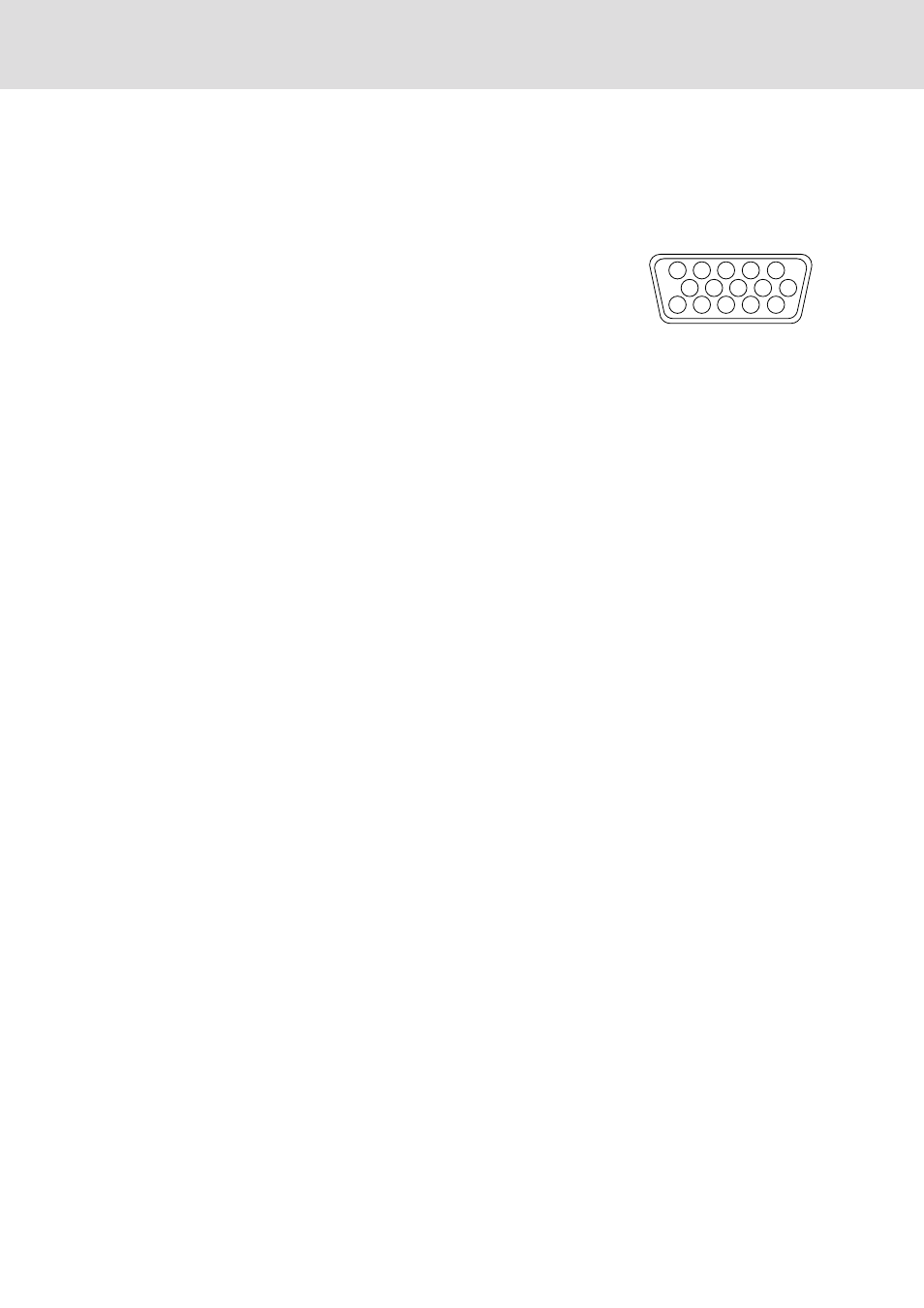

D-Sub Pin Assignments

PC 15-Pin mini D-Sub

Pin No.

Signal to be connected

1

Red

2

Green

3

Blue

4

GND

5

GND

6

Red GND

7

Green GND

8

Blue GND

9

No Connection

10

Digital GND

11

GND

12

No Connection

13

Horizontal Sync

14

Vertical Sync

15

No Connection

1

2

3

4

5

11

12

13

14

15

6

7

8

9

10

PC 15-Pin mini D-Sub
