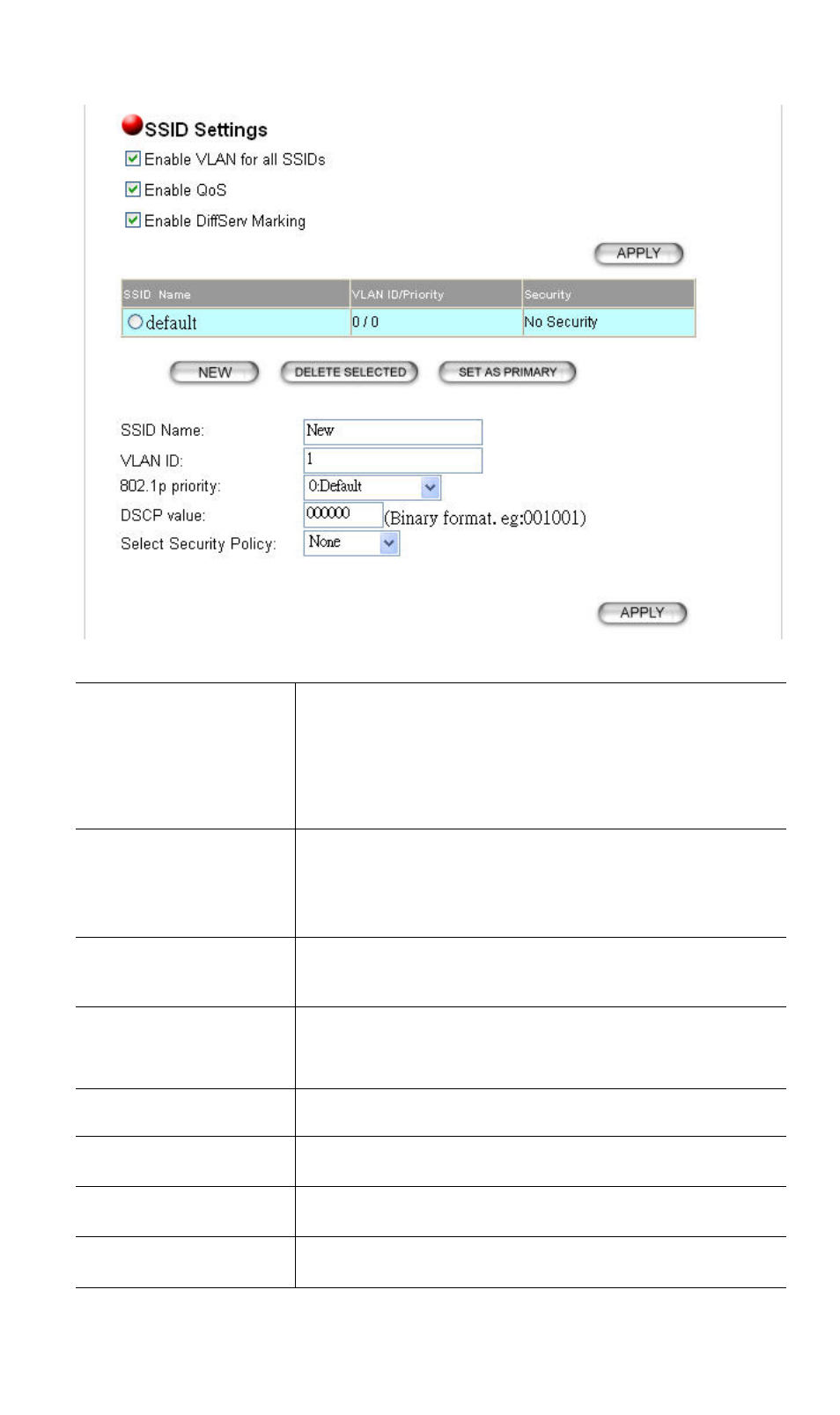

Enable VLAN for all SSIDs

Once this function is enabled, you can specify an individual VLAN
ID and priority tag for each SSID. In this way, you can separate
traffic from stations using different SSIDs and so protect the wired
network from being accessed by unauthorized stations using
certain SSIDs. If this function is enabled, packets from a SSID will
be forwarded to the Ethernet with the corresponding configured
VLAN tag.

Enable QoS

Enable QoS function allows you to assign a priority for each SSID.
Then the traffic to/from a WLAN station will have a priority set for
the SSID the station is using. If the VLAN function is enabled, the
priority is given by the 802.1p priority configured. Otherwise, the
priority is set by choosing one of the four service levels.

Enable DiffServ Marking

When this function is enabled, you can configure a DSCP value
for each SSID. Then a packet from a station using this SSID to
get associated will be forwarded with the DSCP value labeled.

NEW, DELETE SELECTED,

SET AS PRIMARY

These buttons allow you to CLEAR the content of the SSID
configuration items currently displayed, DELETE the selected
SSID entry, and SET the selected SSID to be the primary SSID.

SSID name

The string of SSID.

VLAN ID

The VLAN ID for this SSID. This item is available only when the
VLAN function is enabled.

802.1p priority

The 802.1p priority for this SSID. This item is available only when
the VLAN function is enabled.

DSCP value

The DSCP value (a 6-bit pattern) for this SSID when the DiffServ
Marking function is enabled.
