Pioneer AVH-P6450CD - Manual (Page 7)

6
ENGLISH
ESPAÑOL
DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
This product
AV-BUS cable
Black
Not used.
Black
Blue
IP-BUS cable
DVD player
(sold separately)
AV-BUS Output (Black)
IP-BUS cable (supplied with TV tuner)
IP-BUS cable
AV-BUS cable (supplied
with TV tuner)
Blue
AV-BUS
cable
AV-BUS cable
(sold separately)
40 cm
*1
AV-BUS Input
(Blue)
Blue
IP-BUS cable
Hide-away TV Tuner
(sold separately)
Blue Black
Black
When a DVD player (e.g. SDV-P7) is not used,
use the AV-BUS cable (supplied with TV tuner)
instead of the AV-BUS cable
(sold separately)*1 in the figure.
AV-BUS cable (supplied with TV tuner) AV-BUS cable
(supplied with TV tuner)
Black
Blue
40 cm
Multi-CD player
(sold separately)

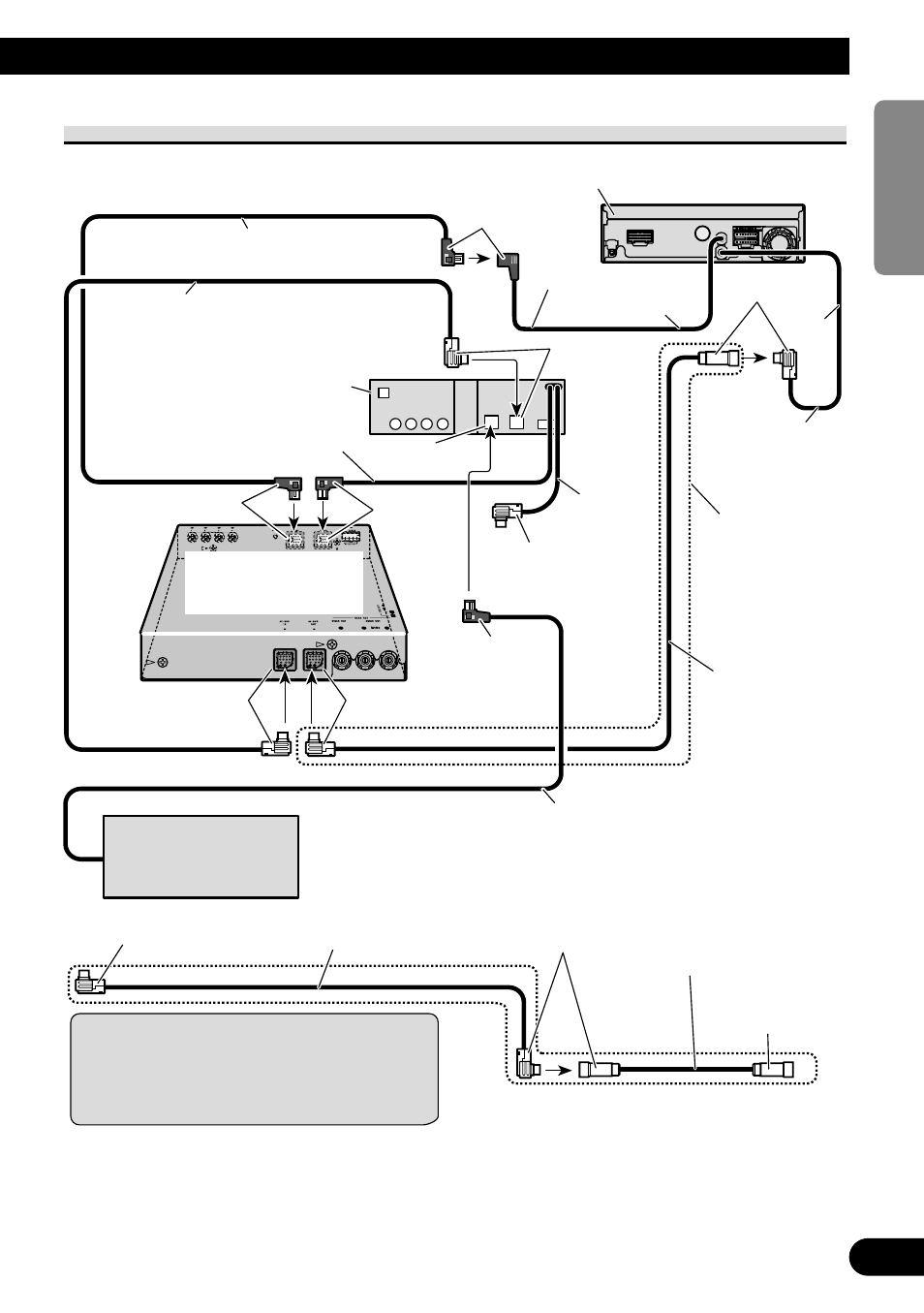

Connecting the system (A)
Perform [VIDEO SETTING] correctly while referring to the Operation
Manual.
Fig. 4
