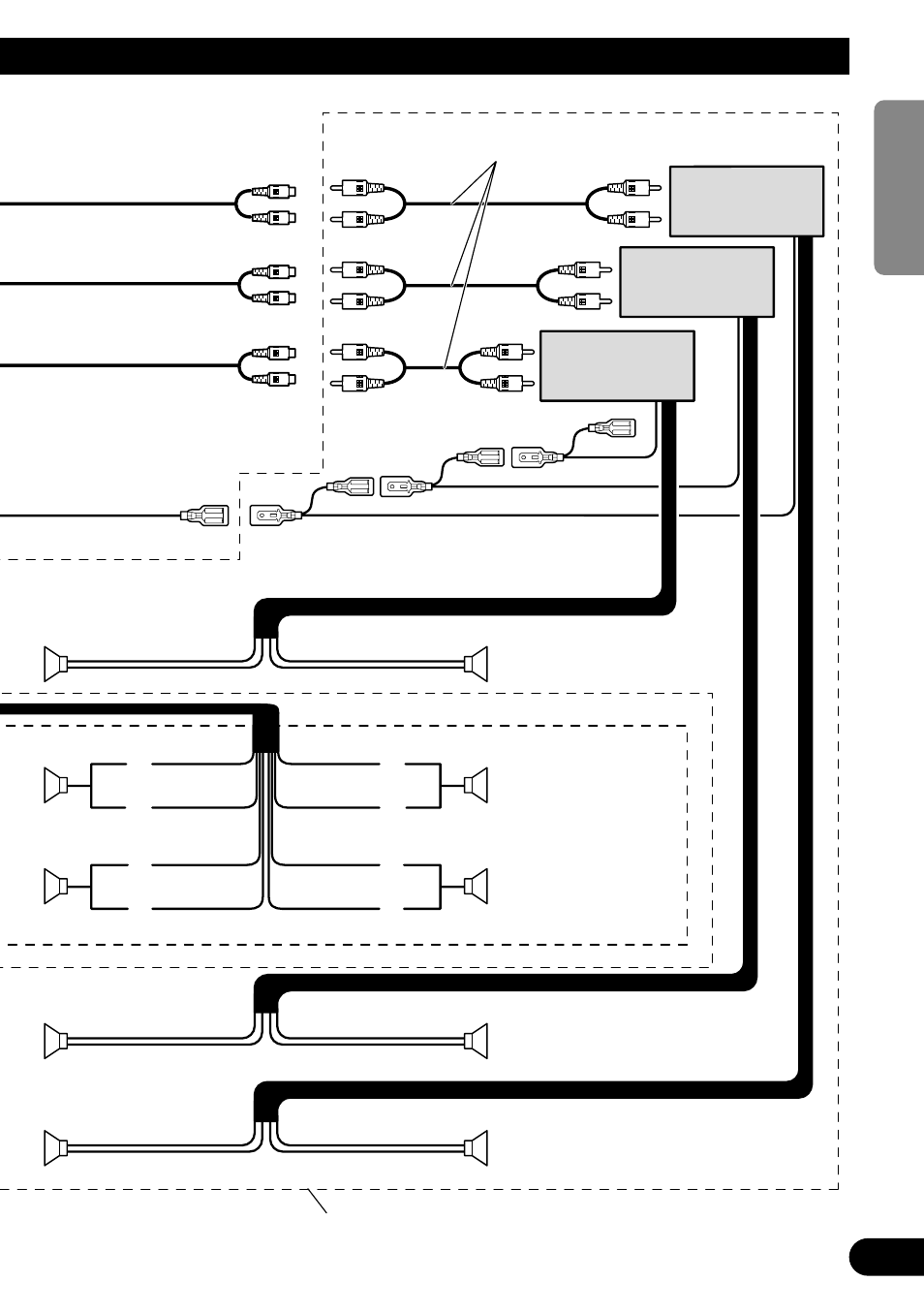

Gray/black White/black
Green
System remote control
Right
White Gray
Green/black
Connecting cords with RCA
pin plugs (sold separately)
Front speaker
Front speaker
Rear speaker
Rear speaker
Subwoofer
Subwoofer output or non-fading
output (SUBWOOFER OUTPUT
or NON-FADING OUTPUT)
Rear output
(REAR OUTPUT)
Front output
(FRONT OUTPUT)
Perform these connections when using
a different amp (sold separately).
Violet
Violet/black
Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
Fig. 2
