11
Installation

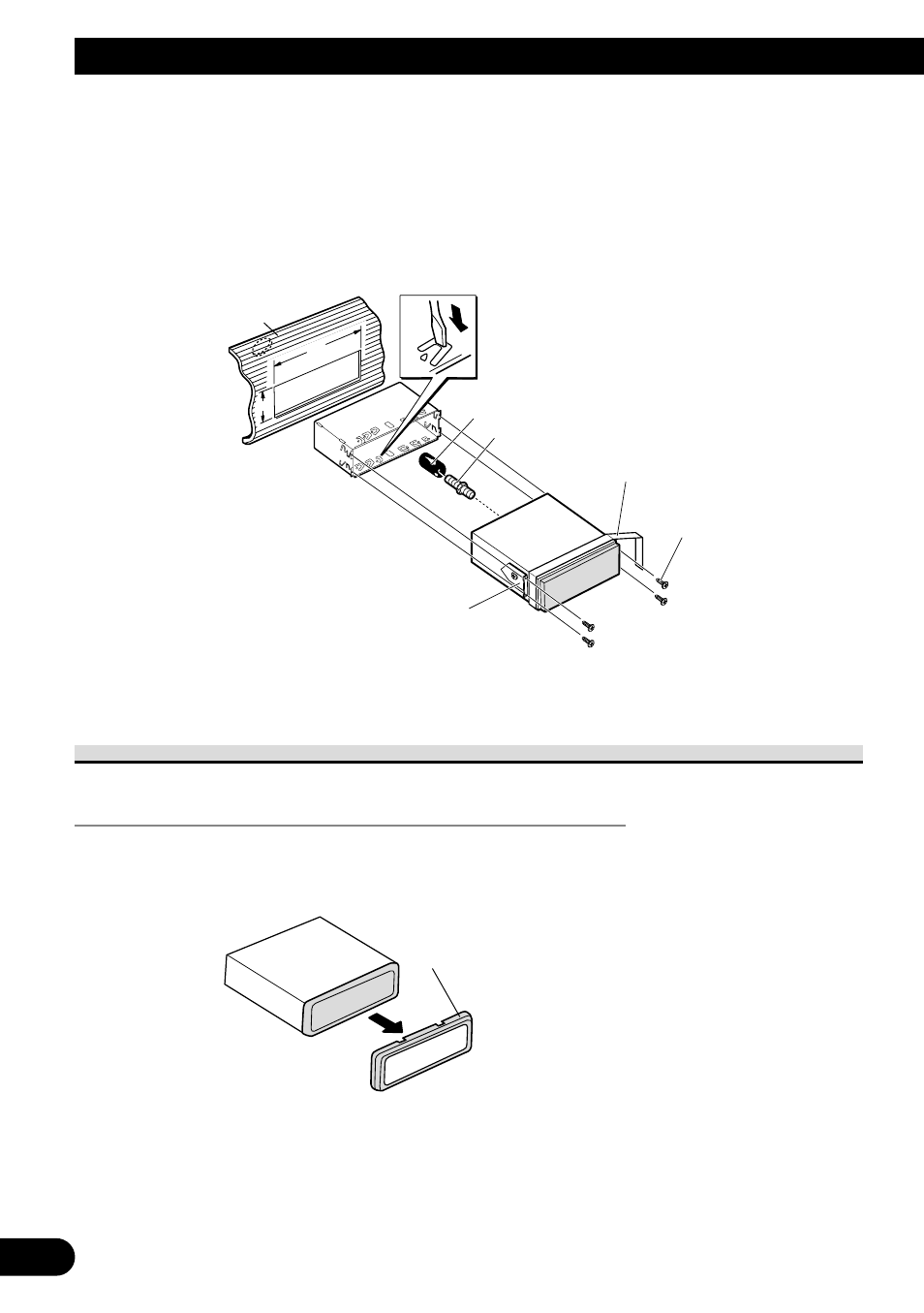

7 When the installation space is not very deep
When installing in a shallow space, secure with side brackets (small). In this case, stick
conceal tape on parts that protrude from the dashboard.
Fig. 11
DIN Rear-mount
Installation using the screw holes on the side of the unit
1. Remove the frame. (Fig. 12)
Fig. 12
Frame
Pull out to remove the frame.
(When reattaching the frame, point the
side with a groove downwards and
attach it.)
Holder
After inserting the holder into the dash-
board, then select the appropriate tabs
according to the thickness of the dash-
board material and bend them.
(Install as firmly as possible using the
top and bottom tabs. To secure, bend
the tabs 90 degrees.)
182
53
Rubber bush
Screw
Dashboard
Attach screw
Side bracket
(small)
Conceal tape
