2. Install side brackets. (Fig. 9)

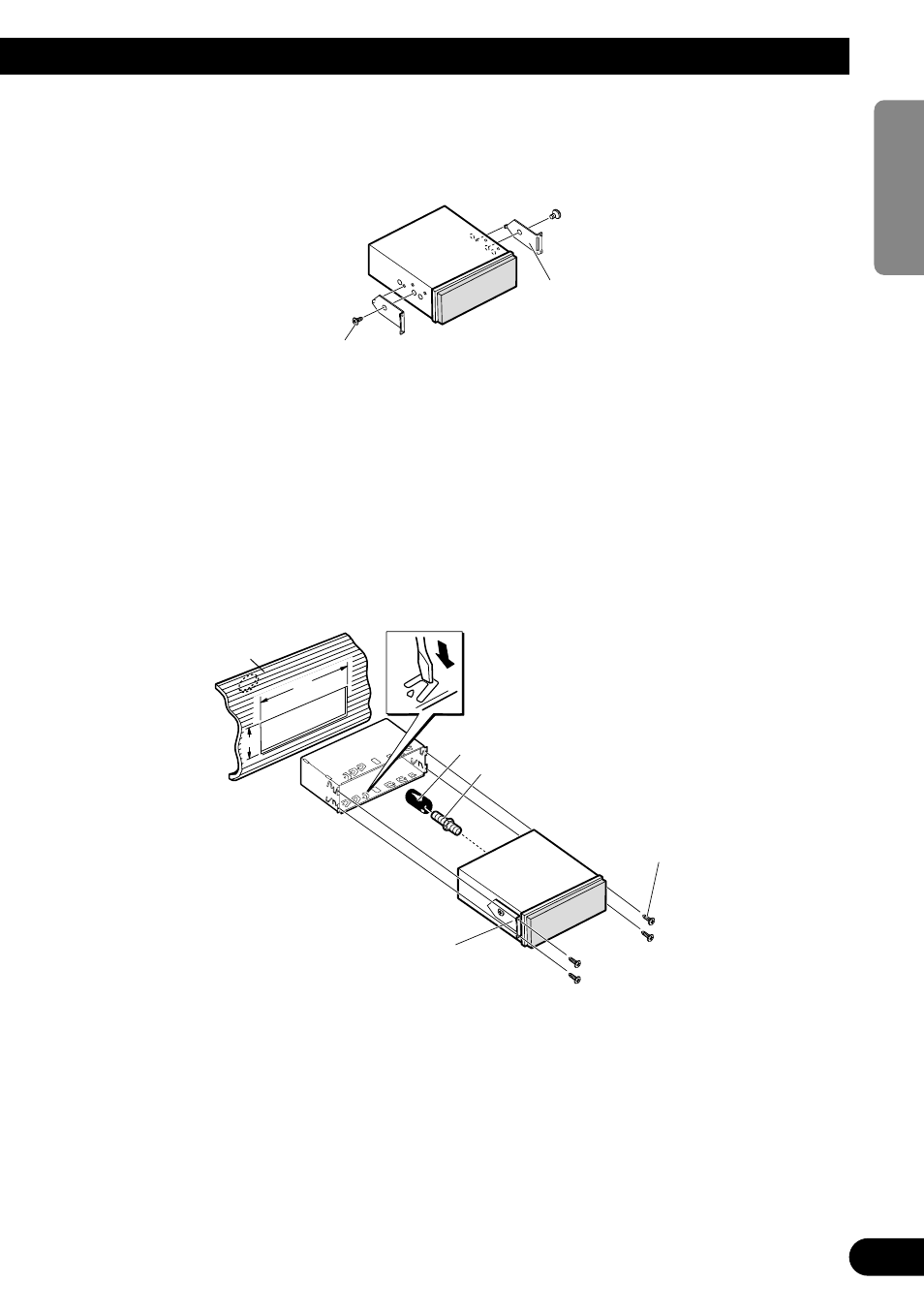

Fig. 9

3. Fastening the unit. (Fig. 10)

As a rule, secure with side brackets (large).

Fig. 10

Holder
After inserting the holder into the dash-
board, then select the appropriate tabs
according to the thickness of the dash-
board material and bend them.
(Install as firmly as possible using the
top and bottom tabs. To secure, bend
the tabs 90 degrees.)

182

Rubber bush

Screw

Dashboard

Side bracket
(large)

Attach screw

Flush surface screw (5

× 6 mm)

Side bracket
