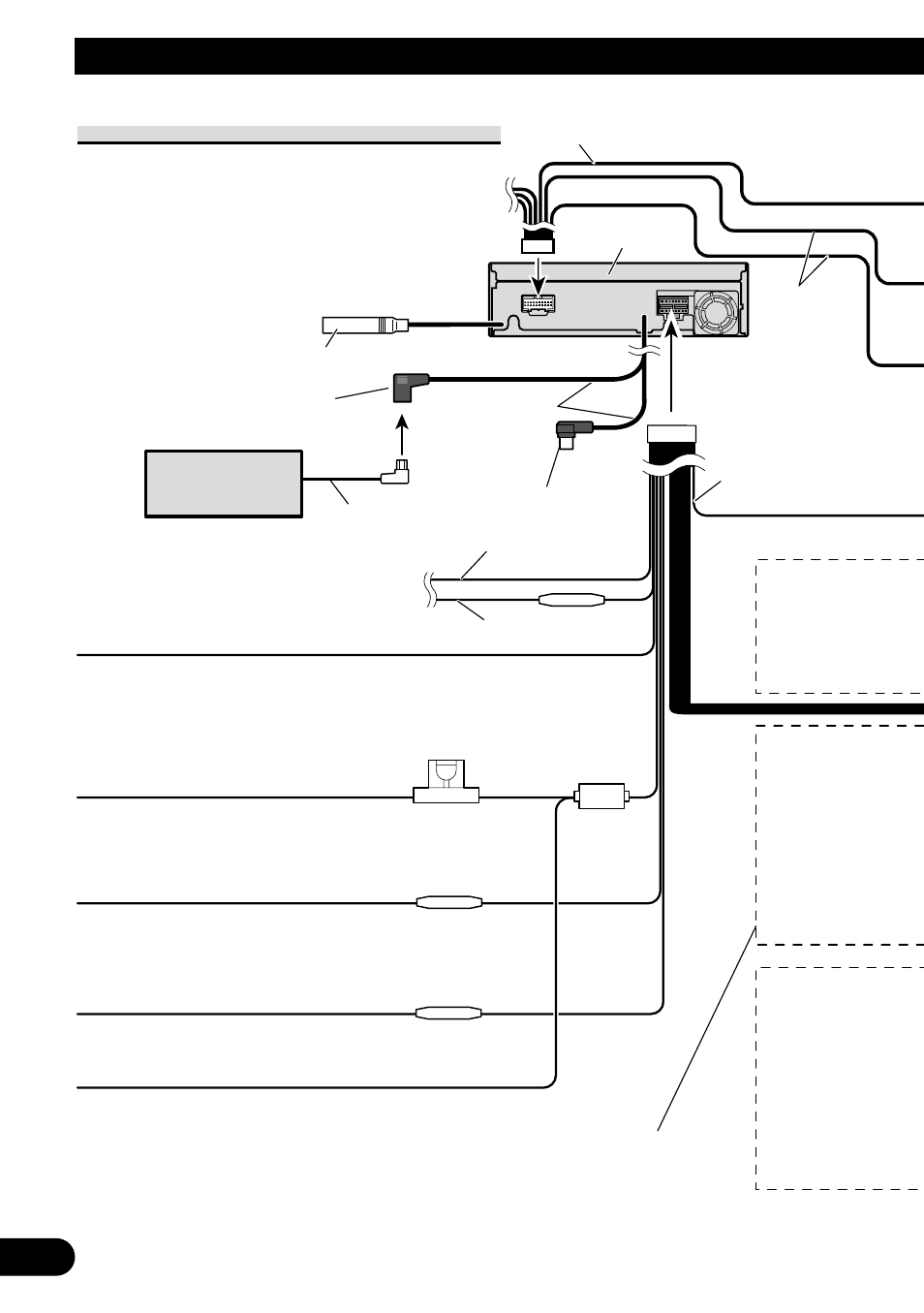

Connecting the Units
Connecting the power cord (1)
Left
Fuse resistor
Yellow
To terminal always supplied with
power regardless of ignition
switch position.
Red
To electric terminal controlled by
ignition switch (12 V DC)
ON/OFF.
Black (ground)
To vehicle (metal) body.
Orange/white
To lighting switch terminal.
Yellow/black
If you use a cellular telephone, connect it via the Audio Mute lead on the
cellular telephone. If not, keep the Audio Mute lead free of any connections.
With a 2 speaker system, do not
connect anything to the speaker leads
that are not connected to speakers.
Front speaker
Front speaker
Rear speaker
Rear speaker
Subwoofer
IP-BUS cable
Blue/white
To system control
terminal of the power
amp or Auto-antenna a
relay control terminal
(max. 300 mA 12 V DC)
IP-BUS input
(Blue)
AV-BUS input
40 cm
Multi-CD player
(sold separately)
This product
Antenna jack
11 cm
Refer to page 8.
15 cm
23 cm
Fuse holder
Violet/white
Lightgreen
Refer to page 5.
Fuse resistor
Fuse resistor
