12

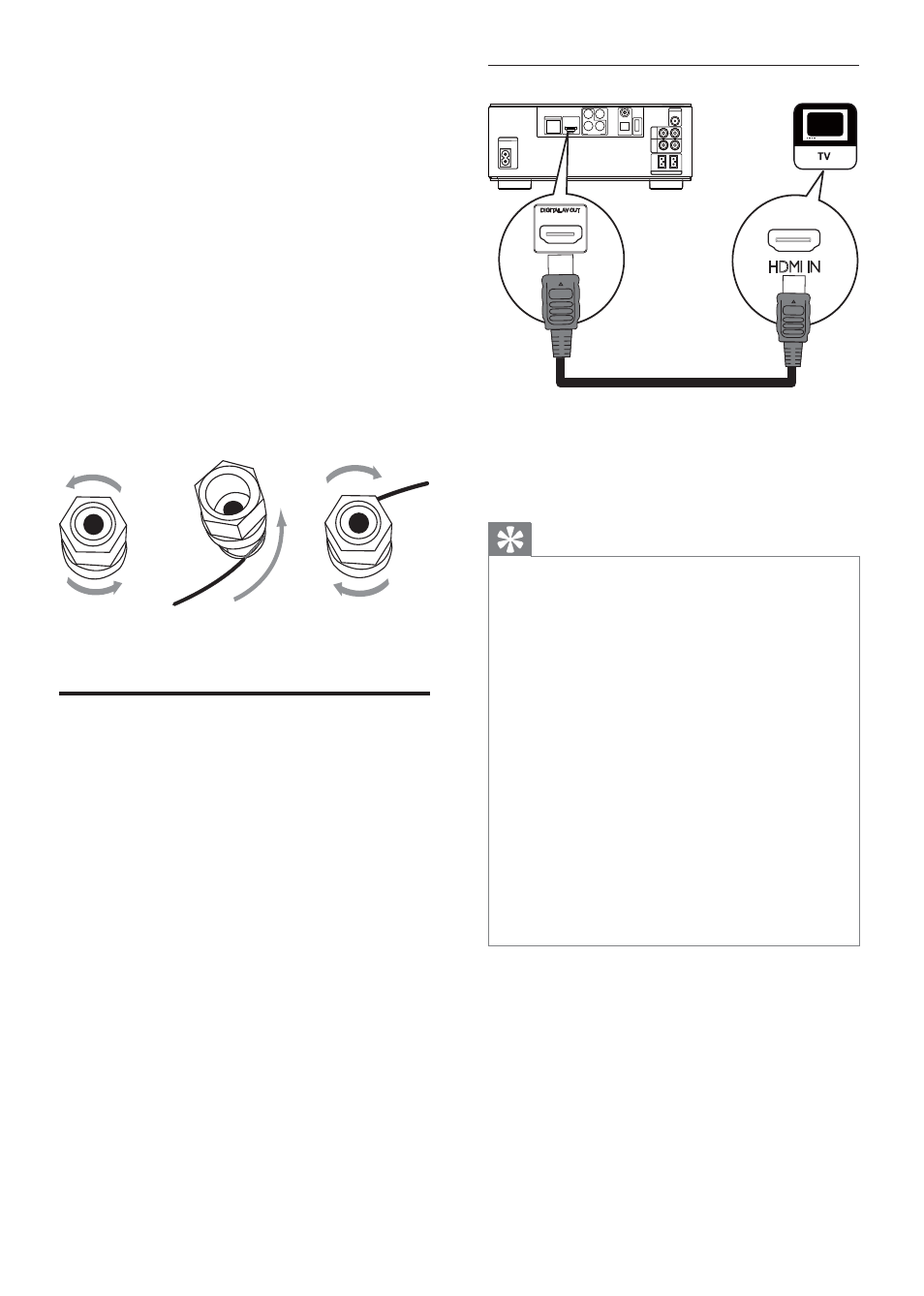

Option 1: Connect to the HDMI jack
1
Connect an HDMI cable (not supplied)
to:
the • HDMI jack on this product.
the HDMI input jack on the TV. •
Tip
If the TV has a DVI connector only, connect via •
an HDMI/DVI adaptor. Connect an audio cable
for sound output.
You can optimize the video output. Press the
•
HDMI button repeatedly to select the best
resolution the TV can support.
If this product connects to a TV compatible
•
with 1080p or 1080p/24Hz, Philips
recommends HDMI category 2 cable, also
known as High Speed HDMI cable, for optimal
video and audio output.
To play the digital video images of a BD-video
•
or DVD-video via an HDMI connection, it
is necessary that both this product and the
display device (or an AV receiver/amplifier)
support a copyright protection system called
HDCP (high-bandwidth digital content
protection system).
This type of connection provides best picture
•
quality.
COAXIAL Pr/Cr
Pb/Cb COMPONENT W i - F i Y OPTICAL DIGITAL AUDIO OUT
O E D I V T U O
DIGITAL AV OUT L AN
AC ~
AUX IN
LINE
OUT
L R
L R
ANTENNA
FM
S P E A K E R O U T
R L
HDMI IN
HDMI
For the speaker side:
1
Unscrew the speaker connectors.
2
For the left speaker, identify the speaker
cable that is connected to the left
connectors on the main unit.
3
Insert fully the red end of the speaker
cable into the red (+) connector.
4
Screw the red (+) connector to secure
the cable.
5
Insert fully the silver end of the speaker
cable into the black (-) connector.
6
Screw the black (-) connector to secure
the cable.
7
Repeat steps 2-6 for the right speaker.
Connect video/audio cables
Select the best video connection that the TV
can support.
•
Option 1: Connect to the HDMI jack (for
an HDMI, DVI or HDCP-compliant TV).
• Option 2: Connect to the component
video jacks (for a standard TV or
Progressive Scan TV).
• Option 3: Connect to the composite
video jack (for a standard TV).
a c b
EN
