Ensure that car dashboard opening is
within these measurements:
5
Install the sleeve into the dashboard and
EHQGWKHWDEVRXWZDUGWRÀ[WKHVOHHYH
Note
6NLSWKLVVWHSLIWKHXQLWLVQRWÀ[HGE\VOHHYH ‡
but by supplied screws.
183 mm
53mm
5mm
Tip
The pin arrangement for the ISO connectors ‡
depends on the type of vehicle you drive.
Make sure to make the proper connections to
prevent damage to the unit.

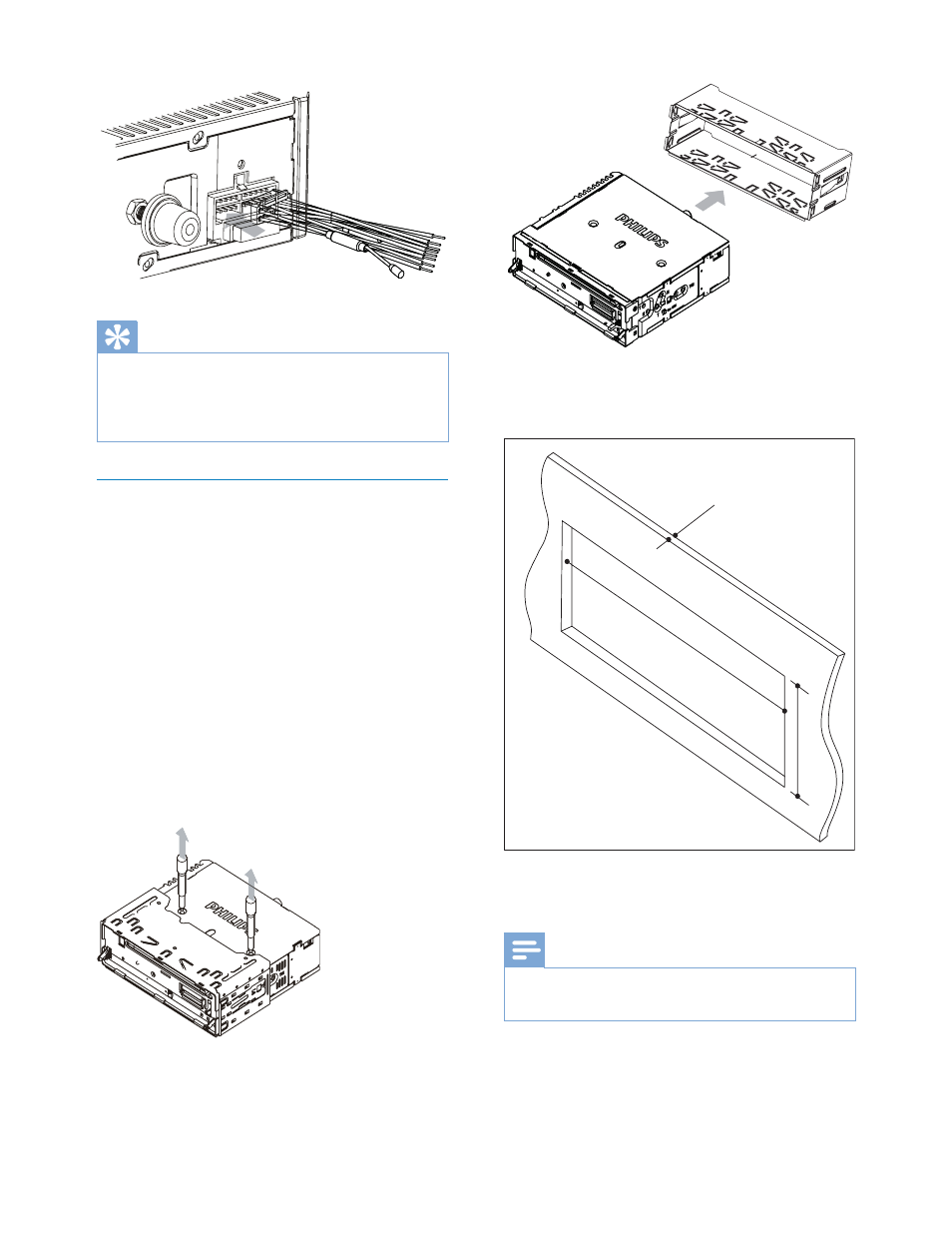

Mount in the dashboard
1
If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car battery.
If you disconnect the car battery in ‡
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
If the car battery is not disconnected,
‡
to avoid short-circuit, ensure that
bare wires do not touch each other.
2
Remove the two screws on the top of the
unit.
3
Remove the mounting sleeve with the
supplied disassembly tools.
