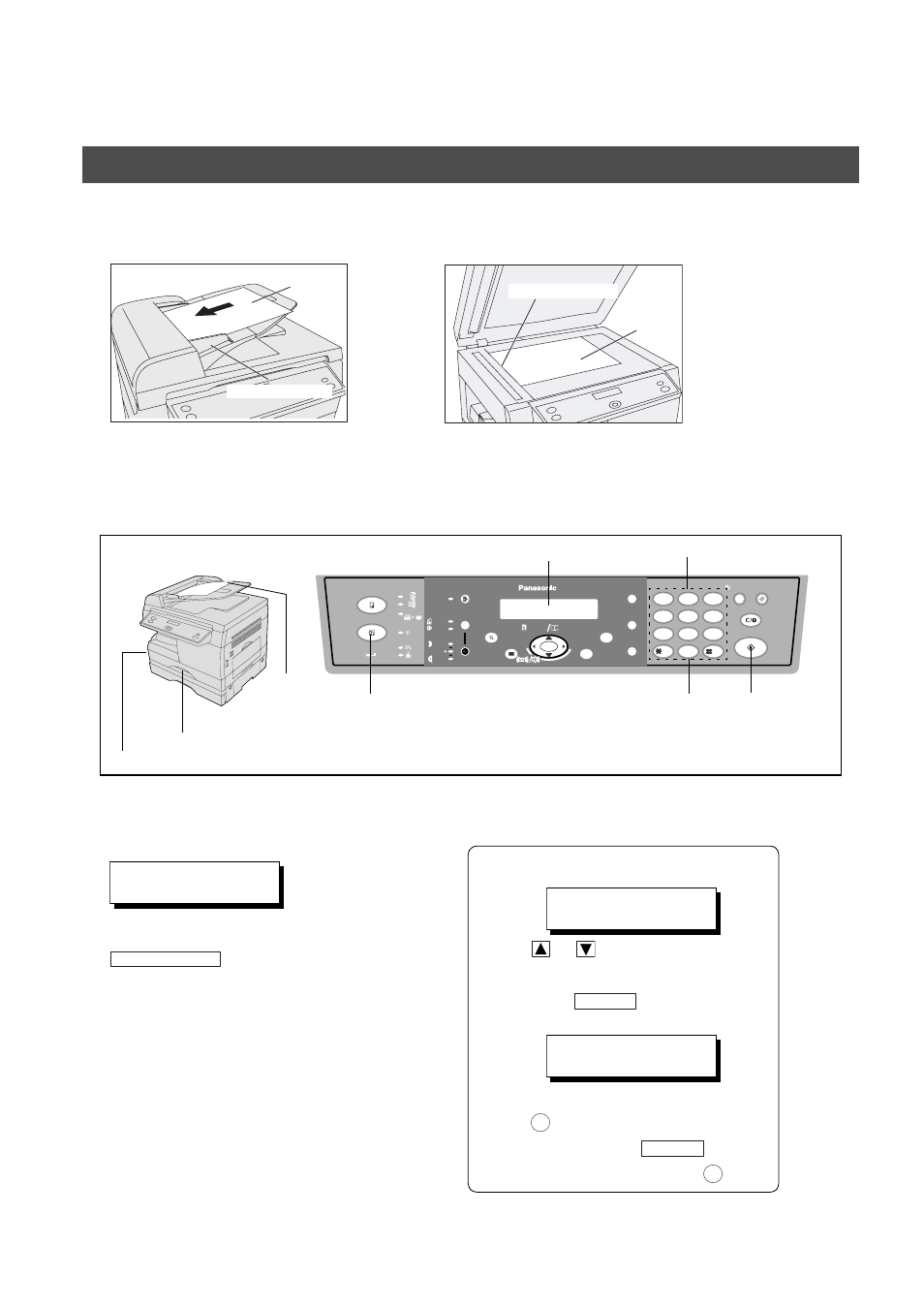

INSTALLING YOUR MACHINE
4
Operation Chart (For Facsimile)
■ ■ ■ ■ How to Load Document(s)
■ ■ ■ ■ Basic Operation
■ ■ ■ ■ How to Dial (Manual Number Dialing)
(1) ADF (2) Platen (Original Glass)
Place the documents Face Up.
Adjust the document guides to
center the documents on the ADF. Place the document Face Down.
Adjust it to the document guide.
Enter the station number from the keypad .
If you enter an incorrect number, press
and re-enter the correct
number.
When the document is set on the Platen
This message appears.
Press or to select the document
size on the platen.
Then, press to start scanning.
If you have more than one document,
press and place another document on
the platen, then press . If there
are no other documents, press .
Face Up
Document Guide
Face Down
Document Guide
2SIDED DP-150FX
START
1 2
4 5
7 8
0
3
6
9
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
PAPER TRAY
SELECT FUNCTION
CLEAR/STOP
SET
2 in 1
ZOOM
(50~200%)
SEARCH
DIRECTORY abc..
DATA
COPY
FAX PHOTO
AUTO
SORT REDIAL
PAUSE/
FLASH/
MONITOR
SAVER
ENERGY
RESET
DARKER
LIGHTER
ON LINE
SUB-ADDR
+ -
2 SIDED
TONE -/()
Press
4 3 2
1
Enter Select Fax
Place
Document(s)
Load Paper
Turn the Power Switch On
Keypad Message Display
Station(s) START
TEL. NO.
5551234 ❚
CLEAR/STOP
ORIGINAL=LETTER
PRESS START
START
SCAN ANOTHER PAGE?
1:YES 2:NO
1
START
2
(Max: 36 digits)
