EN 15
English
Connect
Connect other devices
To connect this recorder to other devices,
you can use these suggested connections for
common used cases. Other solutions may be
possible, depending on the features of the
device.

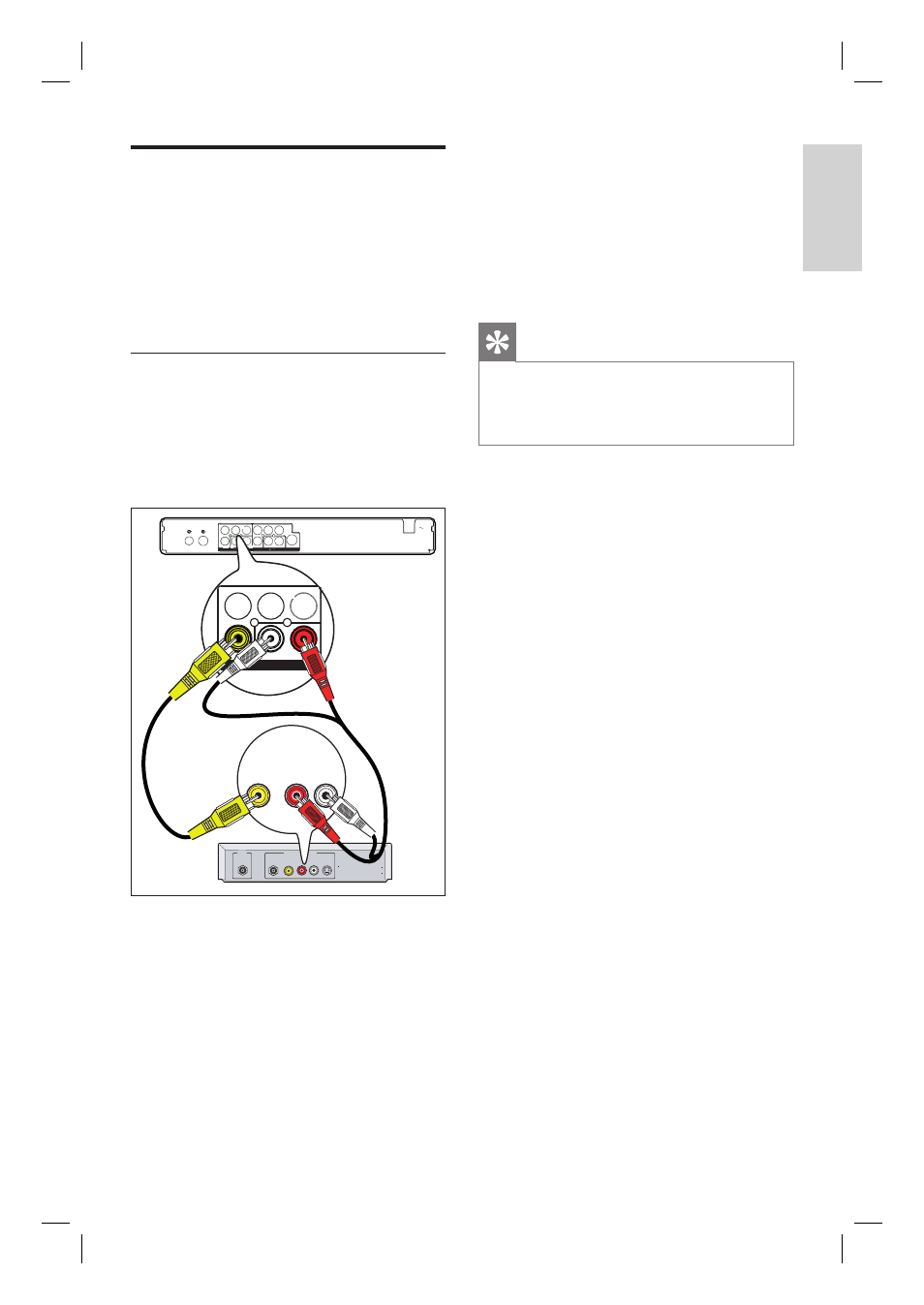

Connect to cable box/ satellite
receiver
1
Ensure that the cable box/ satellite
receiver is connected to the TV with an
antenna cable.
TV -OUT ANTE NNA-IN
MAINS
Y P r P b VIDE O
OUTPUT A U D IO L R CVBS INPUT S-VIDE O
Y P b P r VIDE
A U D IO L R CVBS
O
RF S-VIDEO
IN
AUDIO R L VIDEO
OUTPUT
OUTPUT
VIDEO
INPUT
Y P b P r
VIDE
A U D IO L R CVBS
O
R L
AUDIO
2
3
3
INPUT
2
Connect a composite video cable (yellow
end) from the CVBS INPUT socket to
the video output socket on the cable
box/ satellite receiver.
3
Connect an audio cable (red/white ends)
from the AUDIO INPUT sockets to the
matching audio output socket on the
cable box/ satellite receiver.
To view the video input, press
SOURCE repeatedly until ‘CVBS’ is
displayed.
Tips
With this connection, automatic channel search is
not required. See chapter ‘Get Started’.
The CVBS sockets on the device may be labelled as
TV OUT or TO TV. •
•
•
