14 EN

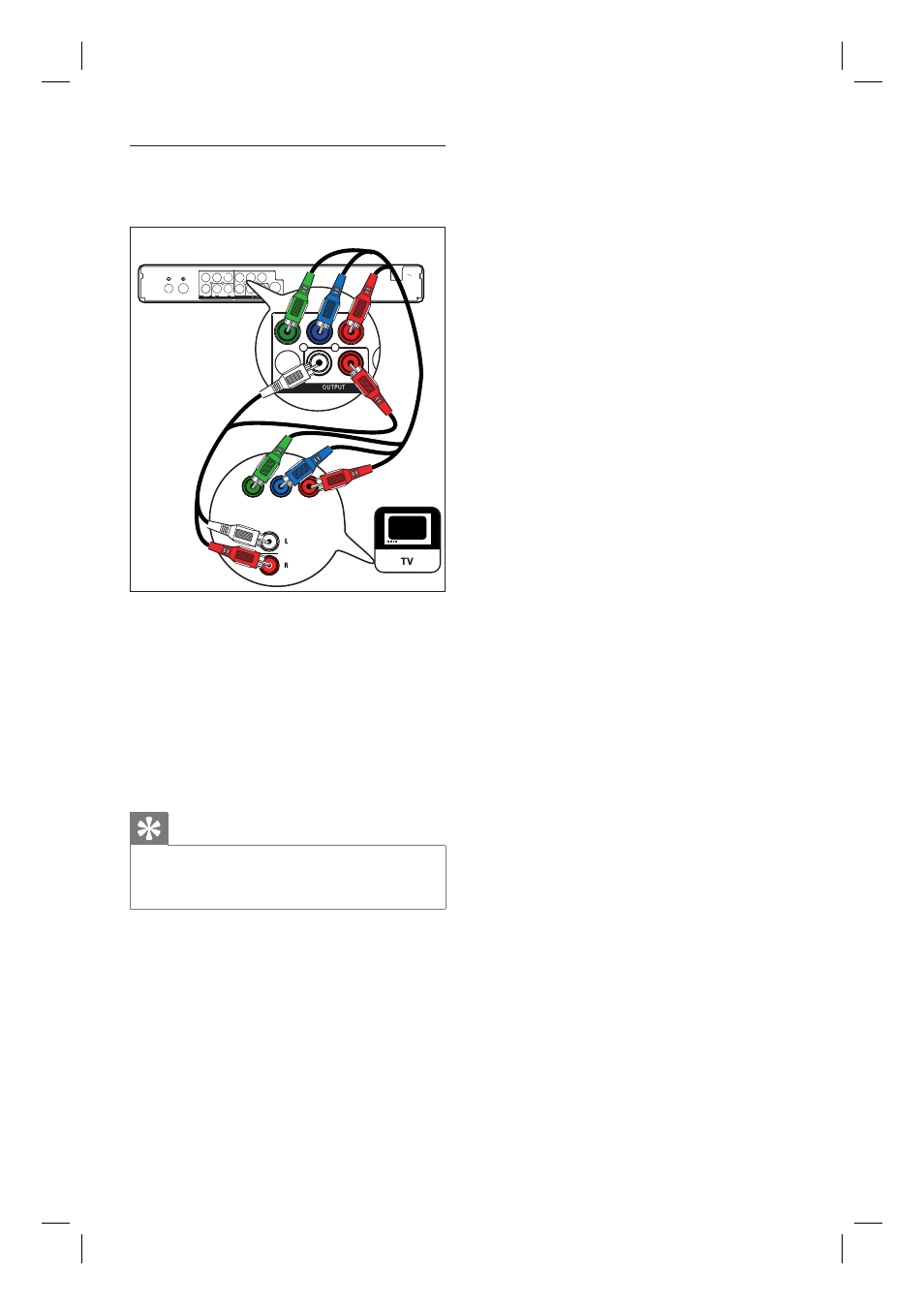

Option 3: Connect to component
video sockets
TV -OUT ANTE NNA-IN
MAINS
Y P r P b VIDE O
OUTPUT A U D IO L R CVBS INPUT S-VIDE O
Y P b P r VIDE
A U D IO L R CVBS
O
Y PB PR
COMPONENT VIDEO INPUT
AUDIO IN
Y P r P b
VIDE
OUTPUT
A U D IO L R CVBS S
1
2
2
1
Connect component video cables (red/
blue/green - not supplied) from the
Y Pr Pb OUTPUT sockets to the
component input sockets on the TV.
2
Connect an audio cable (red/white ends)
from the AUDIO OUTPUT sockets to
the matching audio input sockets on the
TV.
Tip
Select the supported video resolution progressive
scan. See chapter “Adjust Settings – Video settings
– Set video format”, •
