94

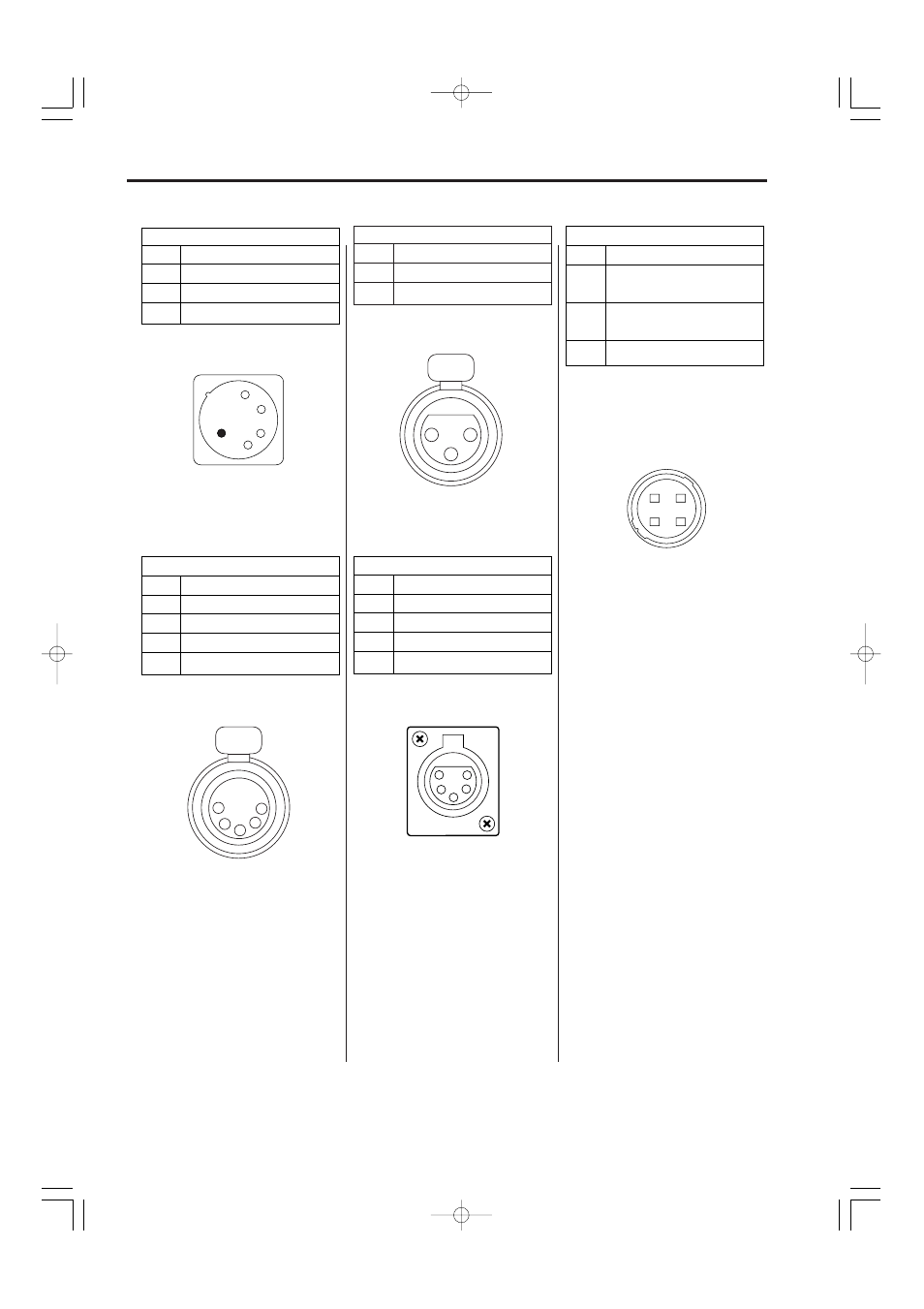

6-2-6 Connectors and signals
AUDIO IN
1 GND
2 AUDIO IN(H)
3 AUDIO IN(C)
Matsushita part number K1AB103A0011
Maker part number HA16PRM-3SG
(Hirose Denki)
PUSH
1
3
2
FRONT MIC IN
1 GND
2 L CH IN(H)
3 L CH IN(C)
4 R CH IN(H)
5 R CH IN(C)
Matsushita part number K1AB105B0002
Maker part number NC5FBH
(NEUTRIK)
PUSH
1 5
2
3
4
DC IN
1 GND
2 NC
3 NC
4 +12V
Matsushita part number K1AA104H0038
Maker part number HA16RX-4P (SW1)
(Hirose Denki)
1
2
3
4
DC OUT
1 GND
2 R TALLY
(Open collector)
3 REC START SW
(Max. 1.5 A)
4 +12V OUT
Matsushita part number K1AY104J0002
Maker part number HR10A-7R-4S (74)
(Hirose Denki)
Connector at the cable side
Maker part number HR10A-7R-4P (73)
(Hirose Denki)
1
2 3
4
5
4
3
2
1
AUDIO OUT
1 GND
2 L CH OUT (H)
3 L CH OUT (C)
4 R CH OUT (H)
5 R CH OUT (C)
Maker part number HA16RD-5P (76)
(Hirose Denki)
Ensure that the polarities are used
correctly for a power supply from an
external source.
Chapter 6 Maintenance and inspections
(continued)
