6.5.1. Motor Position Sensor

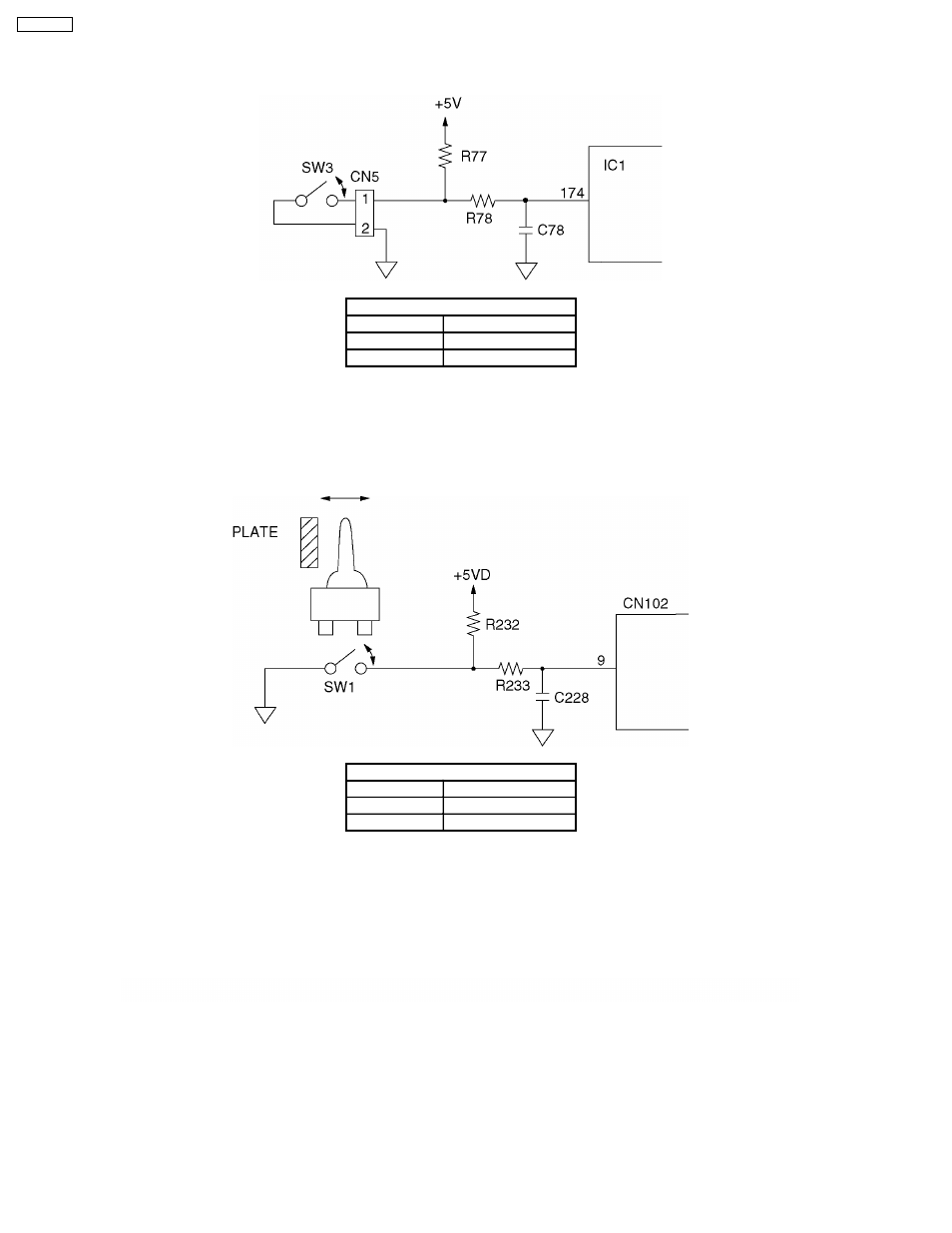

This sensor is a detection switch for recording the position of the CAM.
Digital Board
Signal (IC1-174 Pin)
Home position Low level
Other High level
6.5.2. Recording Paper Sensor (SW201)
When there is no recording paper, the plate is separated from the switch lever and the switch turns off.
Pin 9 of CN102 (Analog board) becomes a high level.
When there is recording paper, the plate pushes the switch lever and the switch turns ON.
Pin 9 of CN102 (Analog board) becomes a low level.
Analog Board
Signal (CN102-9 Pin)
Paper Low level
No paper High level
