6.5. SENSORS AND SWITCHES

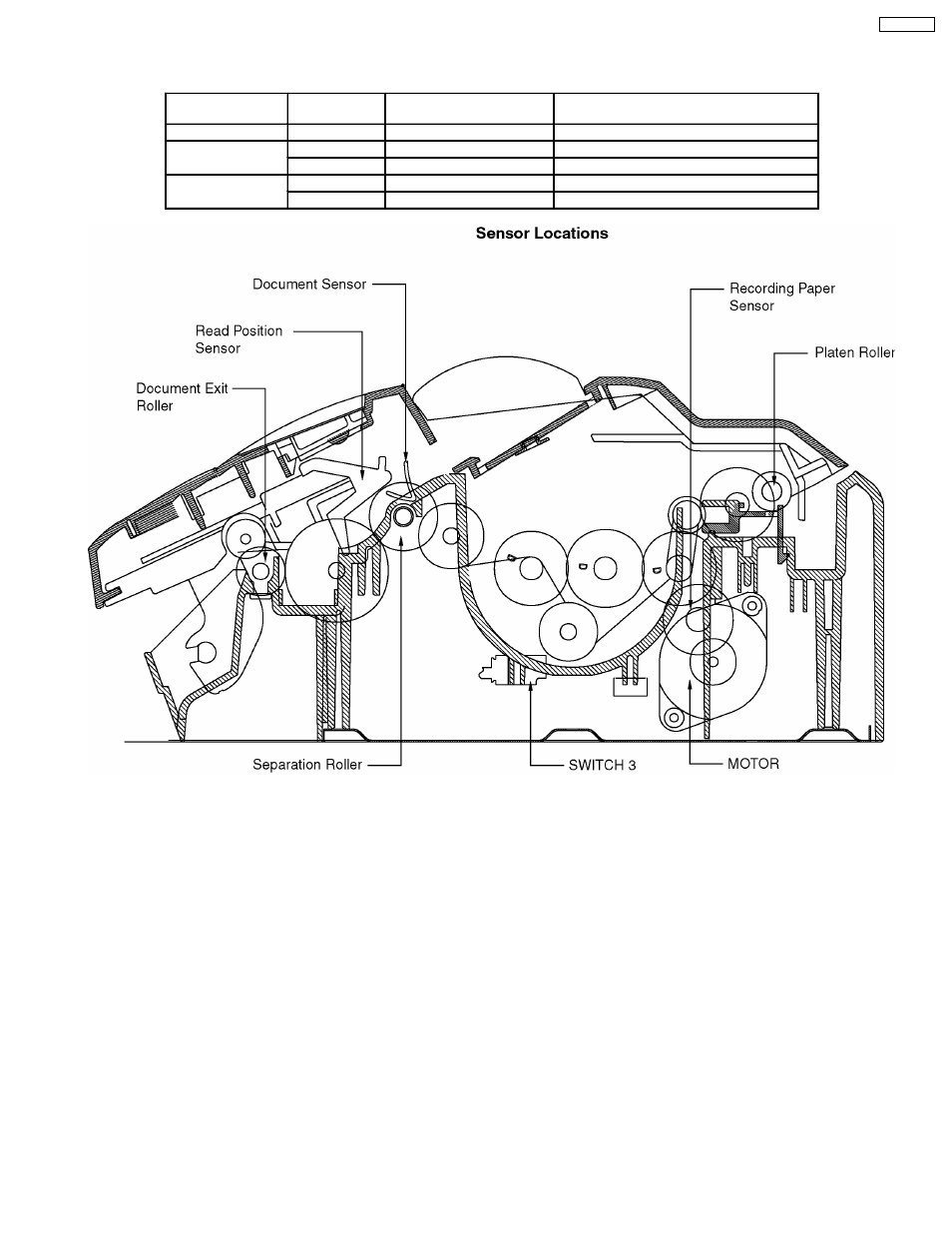

All of the sensor and switches are shown below.

Sensor Circuit

Location

Sensor

Sensor or Switch Name

Message Error

Digital

SW3

Motor Position

————

Analog

SW1

Cover Open and Paper set

[CHECK COVER] and [OUT OF PAPER]

SW2

Hook SW

————

Operation Panel

PS2

Document Read Position

[REMOVE DOCUMENT]

PS1

Document

[CHECK DOCUMENT]
