89 Adjustments and Settings for Recording: Selection of video output signals
Ad
justment
s
and S
ett
ings
fo
r Recor
ding
The unit employs the HD SDI A · B connector and the MON OUT connector as connectors for outputting video signals.
Change the characters of the signal output from the HD SDI
A · B connector using the screen from the
menu. The character content output from the HD SDI A · B
connector and MON OUT is the same.
The signals output from the HD SDI A · B connector are
switched with the HD SDI A · B switch.
However, the switching operation is not acknowledged
during the recording operation.
MEM: During EE, such as recording, video images
taken by the camera are output. Meanwhile,
signals on the P2 card are output during
playback.
CAM: The camera images are output at all times.
OFF: No signal is output from the HD SDI A · B
connector.

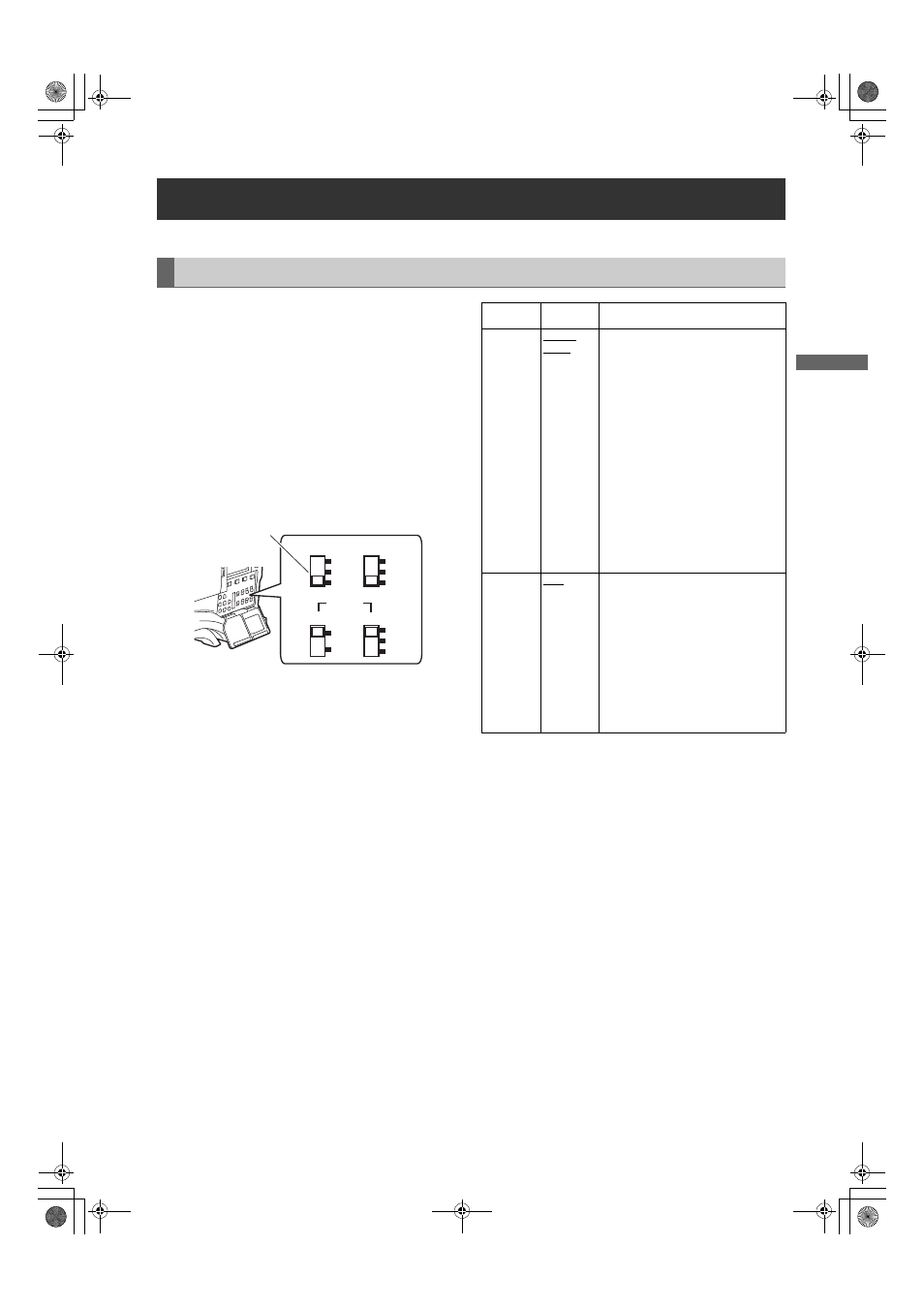

a. HD SDI A · B switch
Selection of video output signals
Settings of signals output from HD SDI A · B connector
a
HD SDI A B TCG
CHARACTER OUTPUT SEL
MEM
CAM
OFF F-RUN
SET
R-RUN
ON
OFF
MEM
CAM
OFF
MON OUT
Item
Variable
range
Remarks
OUTPUT
ITEM MENU
ONLY
TC
STATUS Set the characters to be superimposed
on the output signals from the HD SDI A
· B connector and MON OUT connector.
MENU ONLY:
The menu screen is
superimposed only when the
menu is accessed. This normally
displays nothing.
TC: Time codes are superimposed.
(When the menu is accessed,
the menu screen is
superimposed.)
STATUS:
The characters that are the
same as the characters
superimposed in the viewfinder
screen are superimposed.
(When the menu is accessed,
the menu screen is
superimposed.)
HD SDI A ·
B CHAR OFF
A
B
BOTH OFF: The characters are not
superimposed on the HD SDI A ·
B connector.
A: The characters are
superimposed on the HD SDI A
connector.
B: The characters are
superimposed on the HD SDI B
connector.
BOTH: The characters are
superimposed on the HD SDI A
connector and the HD SDI B
connector.
