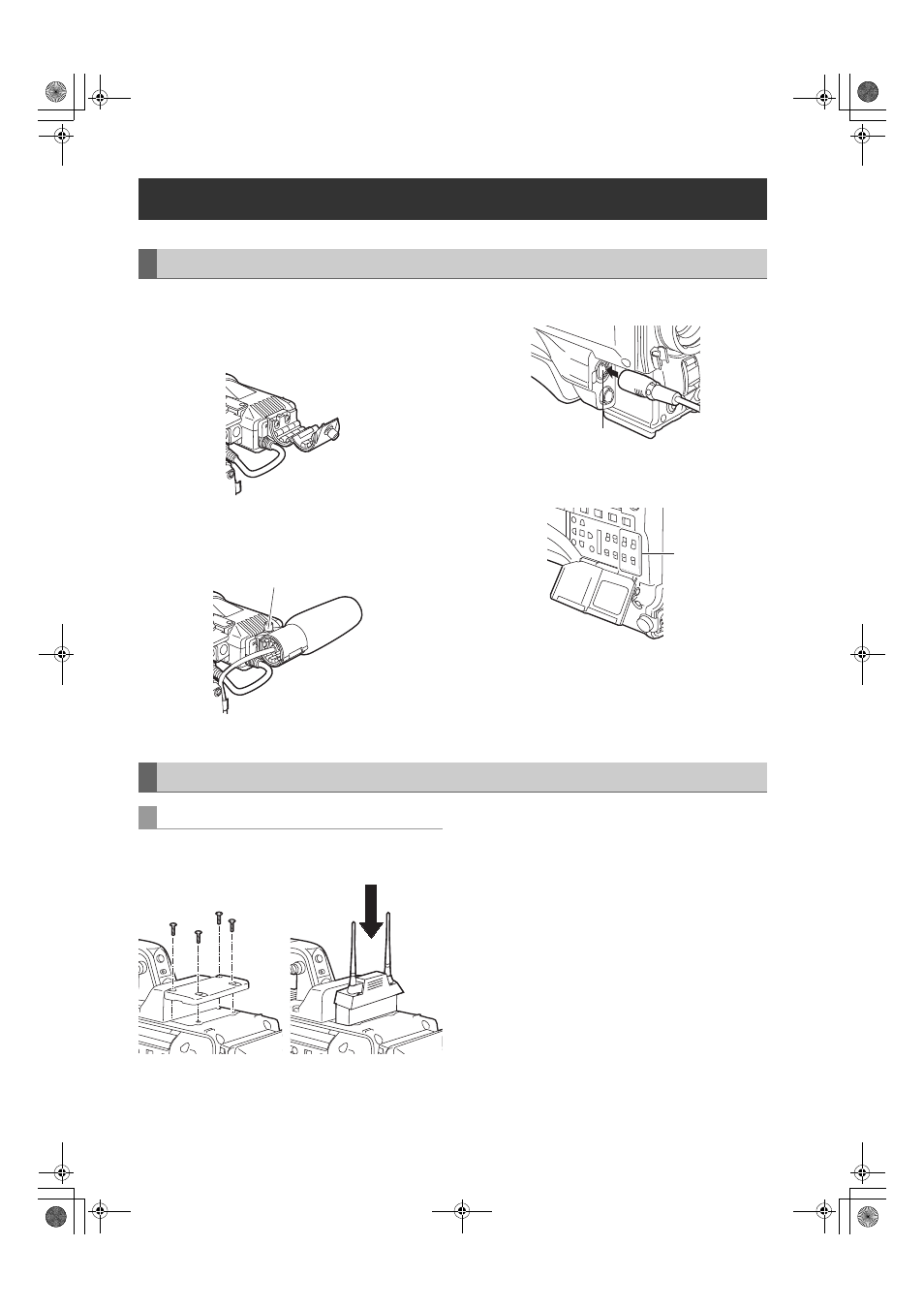

120 Preparation: Preparing for Audio Input
Take the following steps to prepare the camera for connecting audio input devices.
The unit can be equipped with the AJ-MC900G stereo
microphone kit (optional).
1
Open the microphone holder.
2
Mount the microphone and tighten the clamping screw.
The microphone must be attached with the UP mark on
the microphone facing up.
a. Clamping screw
3
Connect the microphone cable to the MIC IN jack on the
camera.
b. MIC IN jack
4
Set the AUDIO IN switch to [FRONT] depending on the
audio channel to be recorded.
c. AUDIO IN switch
1
Remove the cover to insert the wireless receiver and
secure it with the screws.
2
Set the AUDIO IN switch to [W.L.] depending on the
audio channel to be recorded.
3
When using a 2-channel wireless receiver, select
“DUAL” in the WIRELESS TYPE menu option. The
menu option WIRELESS TYPE can be found in the
screen on the MAIN OPERATION
page.
Preparing for Audio Input
When Using the Front Microphone
a
b
c
When Using a Wireless Receiver
When Using the Unislot Wireless Receiver
