Preparations
Using a battery pack made by
Anton Bauer
1
Attach the battery pack made by Anton
Bauer.
2
Insert the battery pack and slide it in the
direction of the arrow.
Power output connector for lighting
Battery pack made by Anton Bauer
Before use, charge the battery pack using the exclusive battery
charger made by Anton Bauer.
For the charging time and other details, refer to the operating
instructions of the battery charger used.
Lighting control switch
A battery holder made by Anton Bauer is equipped with a power
output connector for the lighting and a lighting control switch to
enable a light to be easily attached. For details on the lighting
systems available, contact Anton Bauer.
3
Set the battery type.
Select the battery type using on the sub-menu
screen.
Example: Select “NiCd13” if the TRIMPAC13 is to be used;
select “NiCd14” if the TRIMPAC14 is to be used.
(See page 34)
3
Set the battery type.
Select the battery type using on the sub-menu
screen.
Select “NiCd12” if the NP-1B is to be used. (See page 34)
To remove the battery pack, slide it in the opposite direction to the
one in which it was attached while keeping the release lever on the
battery holder pulled down all the way.
Release lever
2
Using the NP-1B battery pack
made by Sony
Before use, charge the battery pack using the exclusive battery
charger made by Sony.
For the charging time and other details, refer to the operating
instructions of the battery charger used.
Refer to step 1 on page 14.
1
Remove the battery holder.
2
Attach the battery made by Sony to the
unit.

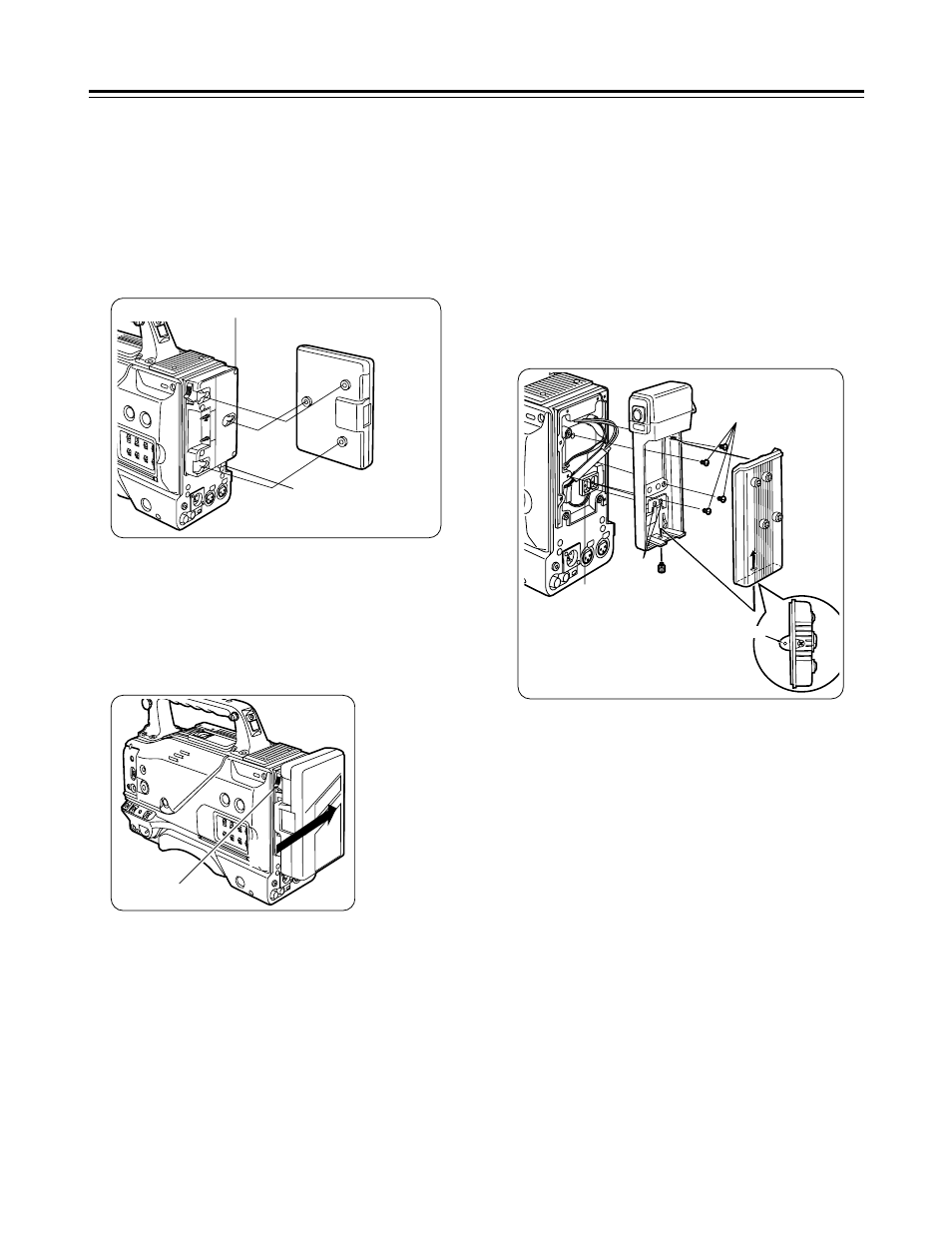

Screw provided
with mounting
connector for
NP-1B Mounting
connector for
NP-1B
Cover
2
1
3
4
5
Battery case
Hole
First, remove the battery holder cover.
1Attach the mounting connector for the NP-1B.
2Use the mounting screws to mount the battery case.
3Tighten the screw for the power supply contact.
4Insert the top of the cover in the direction of the arrow.
5Align the hole in the bottom of the cover (metal part) with the
hole in the bottom of the battery case, and attach using the
screw provided with mounting connector for NP-1B.
