PILOT CONTROLLER
The Pilot controller is an integral controller. This means that
the joystick is housed in the same enclosure as the controller
module. See figure 23. This assembly is mounted on the seat
arm. The Pilot controller is connected to the motors, the bat-
teries, and the battery charger through a cable that connects to
the utility tray.
Joystick Functions
The joystick functions are similar for all controller configura-
tions. The joystick controls the direction and speed of the power
chair. See figure 24. When you move the joystick from the
neutral (center) position, the electromagnetic brakes release
and allow the power chair to move. The further you push the
joystick from its neutral position, the faster your Jazzy moves.
When you release the joystick and allow it to return to the
neutral position, you engage the electromagnetic brakes. This
causes the chair to decelerate and come to a complete stop.
Speed and Response Adjustment
The Pilot joystick controller is equipped with a speed and re-
sponse adjustment knob that allows you to select the speed
and response settings best suited to your requirements and environ-
ment. See figure 23. When you increase the speed (clockwise) or decrease the speed (counterclockwise),
appropriate changes are automatically made to the sensitivity.
Note: We recommend that the first few times you operate your Jazzy 1105 you turn the speed and response
adjustment knob to the slowest setting until you to become familiar with your new power chair.
Battery Condition Meter
The battery condition meter is located immediately in front of the joystick. See figure 23. This enables you
to monitor battery life. The battery condition meter indicates the approximate amount of battery life left.
n Red, yellow, and green bars indicate that the batteries are fully charged.
n Red and yellow bars indicate that you should charge the batteries if possible.
V I I I . O P E R A T I O N
Figure 24. Joystick Movement
BATTERY
CONDITION
METER ON/OFF
KEY
SPEED AND
RESPONSE
ADJUSTMENT
KNOB

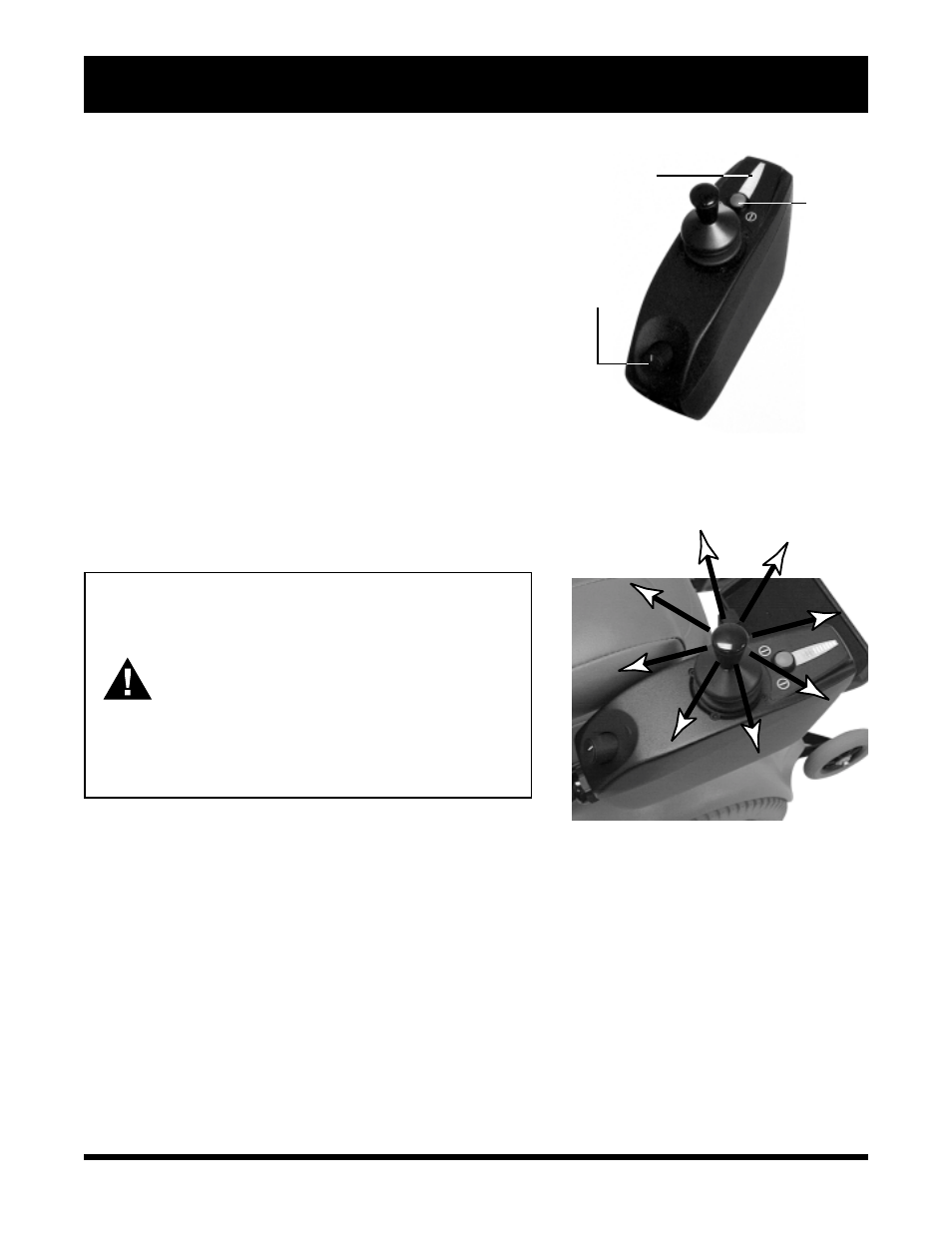

Figure 23. Pilot Joystick Features
WARNING! If your power chair begins to move
in an unexpected manner, immediately re-
lease the joystick. Unless the joystick is
damaged, this action should stop your power
WARNING! Unless faced with an emergency
situation, do not use the on/off key to stop
the chair. This will cause the power chair to
stop abruptly.
WARNING! Always turn the power off when
you are stationary to prevent unexpected
movement.
