FOOT PLATFORM ANGLE
You can adjust the angle of the foot platform with a 3/16-in. hex
wrench. See figure 12.
To adjust the foot platform angle:
1. Turn the set screw clockwise to raise the front of the footrest.
2. Turn the set screw counterclockwise to lower the front of the
footrest.
SWING-AWAY FOOTREST OPTION
Swing-away footrests are an option. They enable you to move the
leg rest to the side before getting off or on the Jazzy.
To move the swing-away footrests:
1. Push in the release lever.
2. Move the swing-away footrests.
ELEVATING LEG REST OPTION
Elevating Leg Rests (ELRs) offer a wide range of adjustments for
leg comfort.
To adjust the ELR angle:
1. Press the release lever.
2. Move the leg rest to the desired angle.
To adjust the ELR footrest height:
1. Loosen the 13-mm bolt on the bottom of the foot plate.
2. Slide the footrest in or out to the desired length.
3. Tighten the 13-mm bolt.
HIGH BACK WITH HEADREST
If your Jazzy is equipped with the deluxe high back seat, you can
adjust the headrest height.
To adjust the headrest height:
1. Push in the headrest release button.
2. Move the headrest up or down to the desired position.
V I . C O M F O R T A D J U S T M E N T S

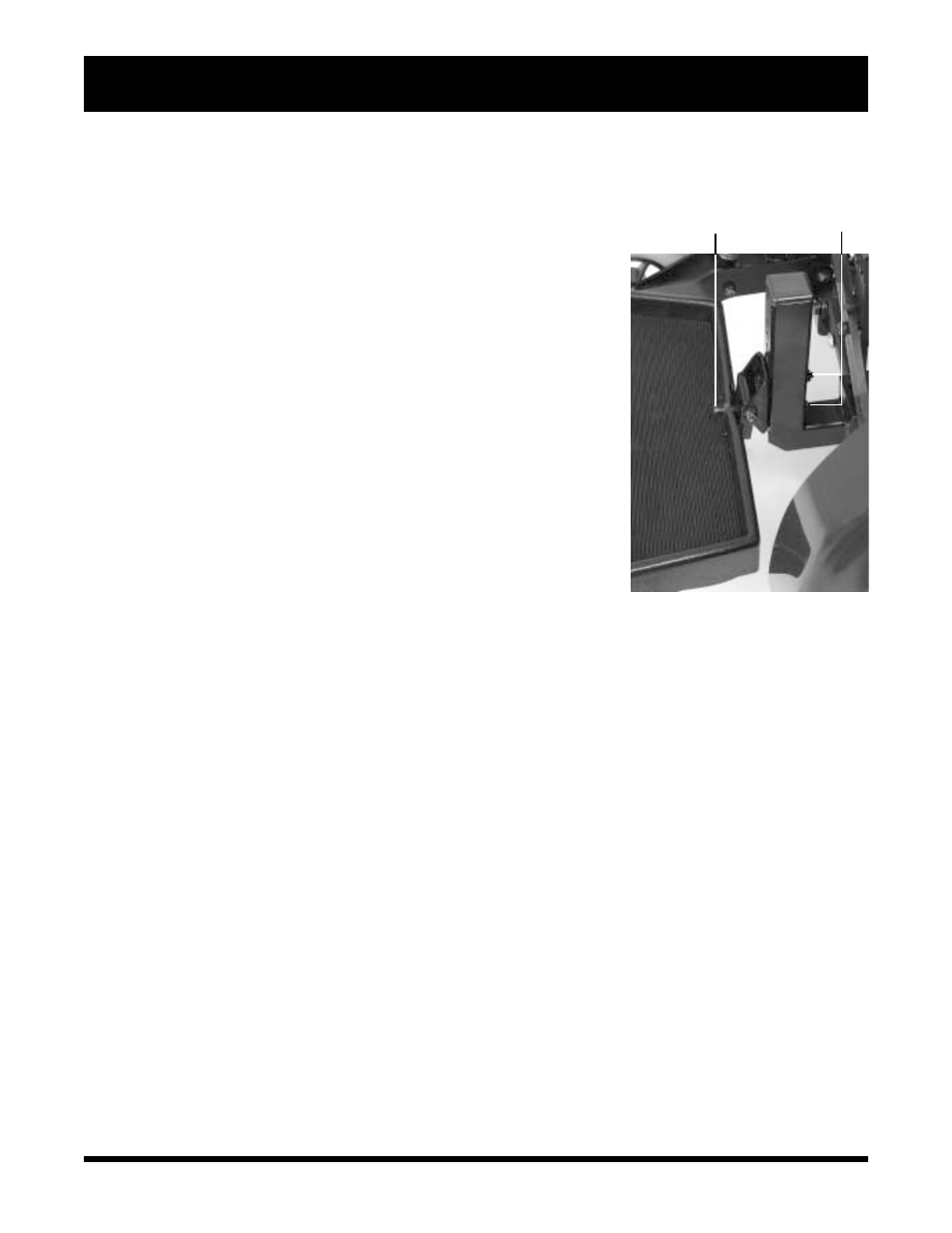

Figure 12. Foot Platform
Angle and Height
LOOSEN THIS
SETSCREW TO
ADJUST FOOT
PLATE ANGLE
REMOVE THESE
SCREWS TO
ADJUST FOOT
PLATE HEIGHT
