I V . T H E J A Z Z Y 1 1 0 5
SEATBACK
JOYSTICK CONTROLLER
ARMRESTS
BODY SHROUD
ANTI-TIP WHEELS
DRIVE WHEEL
REAR CASTER WHEEL

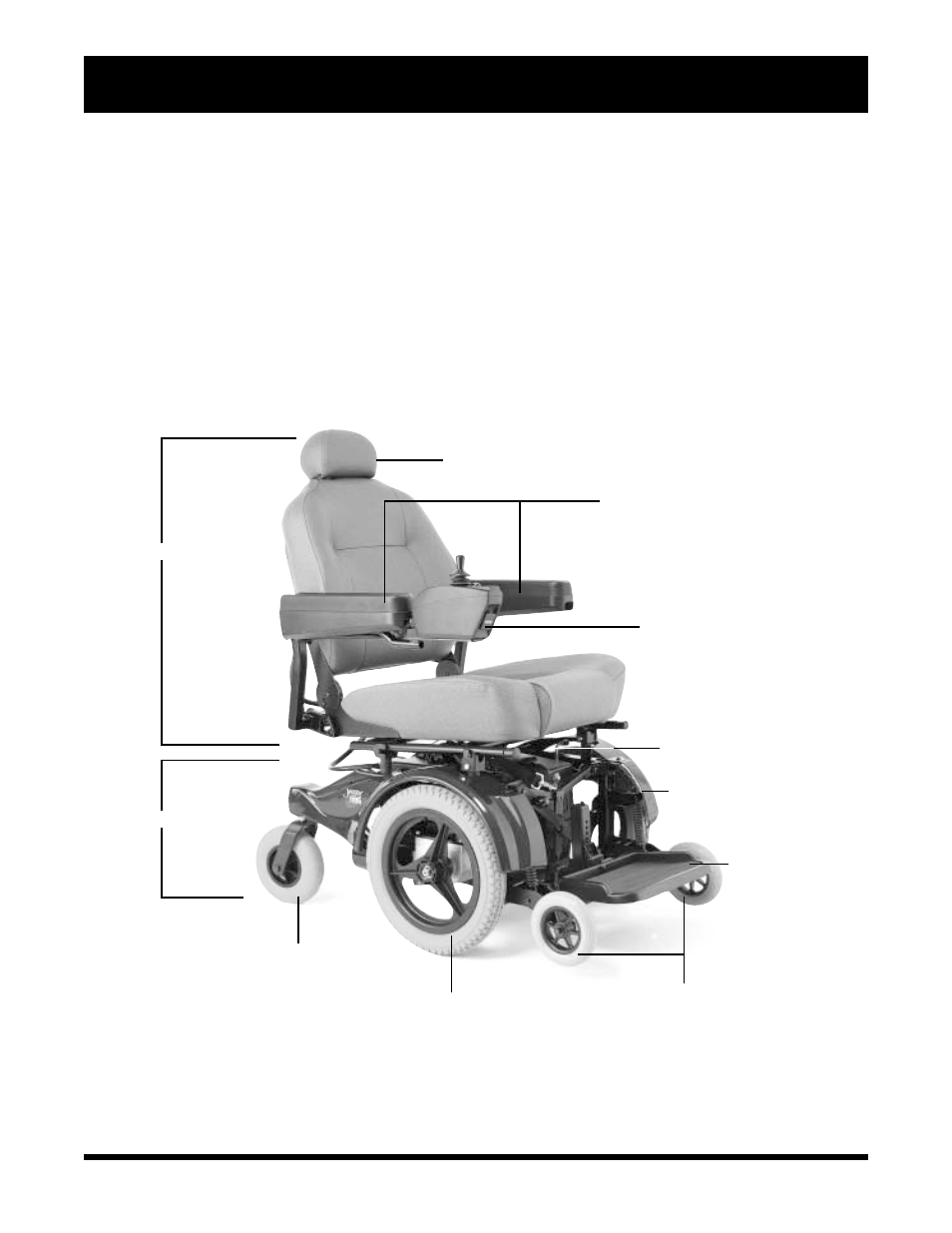

Figure 1. The Jazzy 1105
POWER BASE ASSEMBLY
SEAT ASSEMBLY
FOOTREST
FREEWHEEL LEVER
THE JAZZY 1105
Your Jazzy 1105 has two main assemblies: the seat and the power base. See figure 1. There are a variety of
seating options that are designed to accommodate most users. Typically, the seating assembly includes the
armrests, seatback, seat base, and joystick controller. Your Jazzy seat may also have some optional acces-
sories attached to it, such as a basket, a cane/crutch holder, a cup holder, or a power seat switch. See XI.
“Optional Accessories” in this manual.
The power base is the heart of your Jazzy 1105. The power base assembly includes a frame, two drive wheels,
two anti-tip wheels, two rear caster wheels, wiring harnesses, and a body shroud. See figures 2 and 3.
