ARMREST ANGLE

You can adjust the armrest angle to fit your specific needs.

To change the armrest angle:

1. Lift the armrest straight up so that it is perpendicular to

the floor.

2. Use a 5/32-in. hex wrench to loosen the hex screw. See

figure 10.

3. Turn the screw counterclockwise to raise the front of the

armrest and clockwise to lower the front of the armrest.

4. Lock into place by tightening the 7/16-in. nut.

JOYSTICK EXTENSION

The joystick control can easily be adjusted out away from the

armrest or in toward the armrest.

To extend the joystick:

1. Use a 3/16-in. hex wrench to loosen the setscrew. See figure

11.

2. Slide the joystick mounting bracket into or out of the

armrest to the desired position.

3. Retighten the setscrew by turning clockwise.

SWING-AWAY JOYSTICK

Your Jazzy may be equipped with a swing-away joystick. This

option enables you to move the joystick from the front of the

armrest to the side of the armrest without disconnecting it.

FOOT PLATFORM HEIGHT

The foot platform height is easily adjusted to six different

heights. See figure 12.

To raise or lower the platform:

1. Remove the two 7/16-in. bolts from the platform.

2. Raise or lower the platform to your desired height.

3. Reinstall the two 7/16-in. bolts into the platform.

V I . C O M F O R T A D J U S T M E N T S

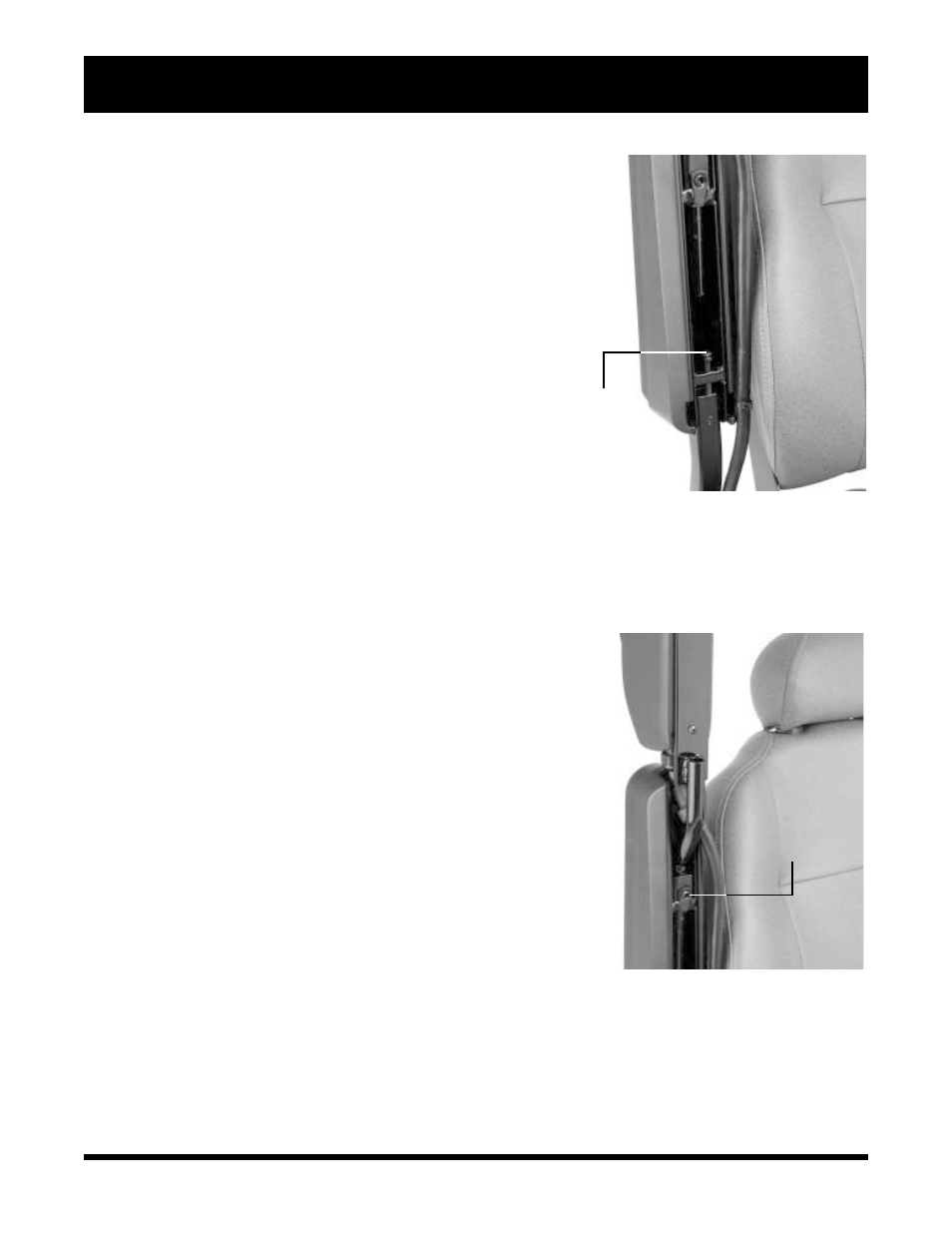

Figure 11. Joystick Extension

LOOSEN THIS

SETSCREW

TO ADJUST

JOYSTICK

BRACKET

Figure 10. Armrest Angle

ARMREST

ANGLE

ADJUSTMENT

SCREW
