24

www.pridemobility.com

Jazzy 1105/RevH/Feb03

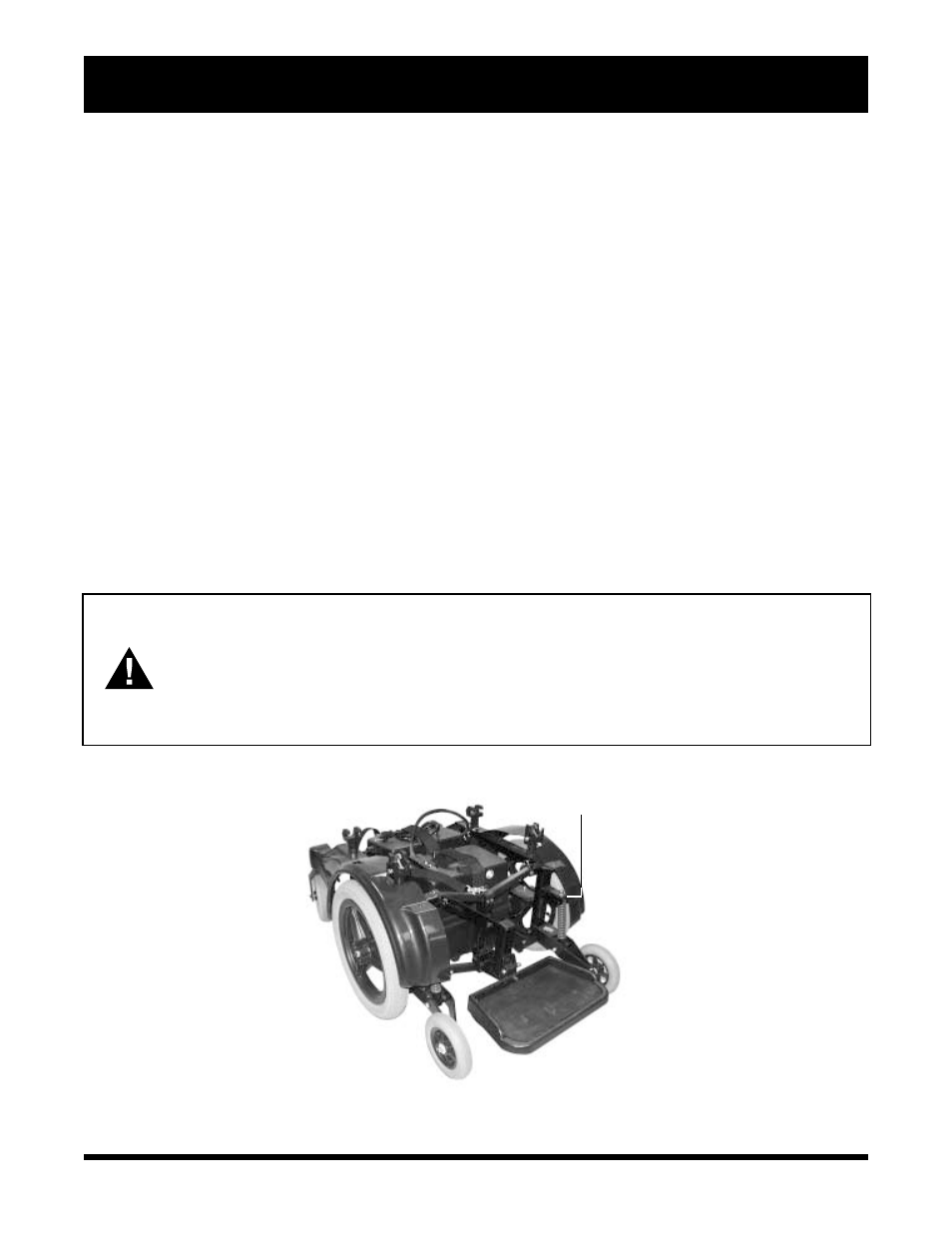

Figure 13. Anti-tip Wheel Adjustment

ANTI-TIP

ADJUSTMENT

NUT

ANTI-TIP WHEEL ADJUSTMENT

The anti-tip wheels are designed to give the Jazzy increased stability on rough surfaces. The anti-tip wheels

are preset at the factory to a ground clearance height of 3/4-in. This setting is only for smooth surfaces or

indoor use. If you plan on using your Jazzy on rough surfaces, it may be necessary to adjust the anti-tip

wheels to better suit your needs.

The anti-tip wheels may need adjustment if either of the following occurs:

n When coming to a stop, the Jazzy tips forward excessively

n The anti-tip wheels constantly rub the ground

Each drive tire must have 30–35 lbs. of pressure in order to adjust the anti-tip wheels properly.

To adjust the anti-tip wheels:

1. Remove the seat.

2. Use a 5/32-in. hex wrench to loosen and remove the hex screws that fasten the body shroud to the

frame.

3. Remove the both body shrouds.

4. Adjust the 13-mm nut so that the anti-tip wheel is 1/2 to 1 inch off the ground. See figure 13.

5. Turn the nut clockwise to lower the anti-tip wheel and counterclockwise to raise the anti-tip wheels.

V I . C O M F O R T A D J U S T M E N T S

WARNING! Consult your authorized Pride provider before attempting to change the anti-tip wheel

height! Changing the anti-tip wheel height affects handling under deceleration!

WARNING! The higher you raise the anti-tip wheels, the more you increase your power chair’s

tendency to tilt forward when coming to a stop. You can compensate for this by having your

authorized Pride provider make a small adjustment to the pre-programmed deceleration setting in

the controller or by moving the seat assembly further to the rear of your power chair.
