5.0.2 External L-Band to Fiber Interface
The External L-Band to Fiber Interface is a machined aluminum watertight enclosure, with
N-type connectors for L-Band RX and TX and fiber-optic connectors for the Fiber TX and RX
signals. The enclosure is powered via a +15 VDC Input port connected to a Compact Outdoor
SSPA’s 15VDC Output port (J8). An outline drawing of the enclosure is shown in Figure 5-2.
The external interface allows connection between a
Teledyne Paradise Datacom Compact Outdoor SSPA
with integrated Block Up Converter and a RCPF-1000
Fiber-Optic Control Panel via a fiber-optic cable run.
Figure 5-3 shows a block diagram of a Compact
Outdoor SSPA with an external L-Band to fiber
enclosure connected to a RCPF-1000 controller.
Figure 5-4 shows an example of a transceiver system utilizing an Evolution Series L-Band
modem, an RCPF-1000 fiber-optic controller, an external fiber to L-Band converter and a
Compact Outdoor SSPA with integral ZBUC. This example allow an optional connection to a
remote PC via RS-485, RS-232 or 10Base-T Ethernet connection.

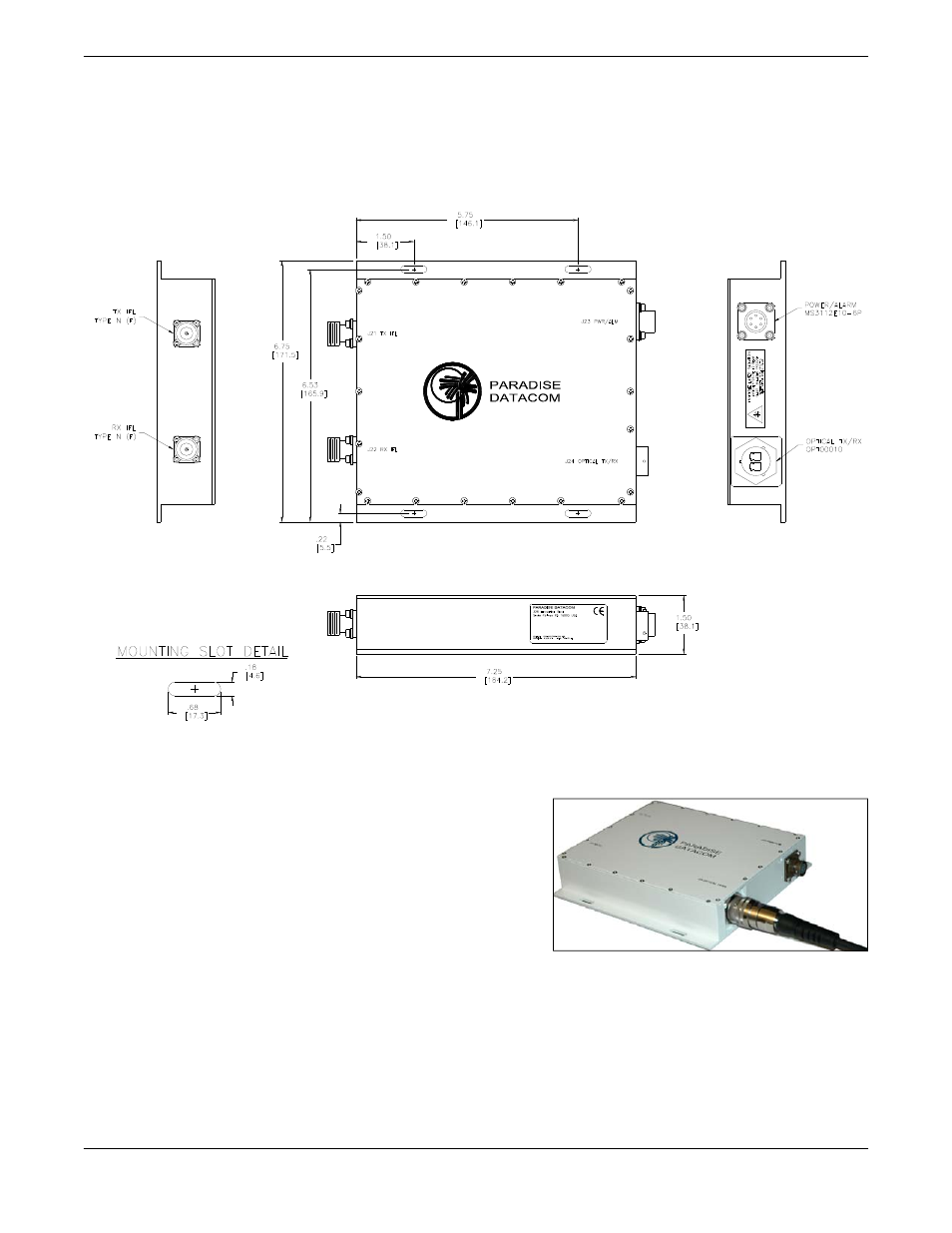

Figure 5-2: Outline Drawing, External L-Band to fiber interface
P/N: LXXXXXX-X S/N: XXXX
MODEL: XXXXXXXXXXXX
