Operations Manual, HPA2, Compact Outdoor SSPA 208495 REV C 15
2.0 Introduction
This section provides information for the initial inspection, installation, external connections,
and shipment of the Compact Outdoor SSPA unit.
2.1 Inspection
When the unit is received, an initial inspection should be completed. Ensure that the shipping
container is not damaged. If it is, have a representative from the shipping company present
when the container is opened. Perform a visual inspection of the Compact Outdoor Amplifier
to make sure that all items on the packing list are enclosed. If any damage has occurred or if
items are missing, contact:
Teledyne Paradise Datacom LLC
328 Innovation Park, Suite 100
State College, PA 16803
Phone: 1 (814) 238-3450
Fax: 1 (814) 238-3829
2.2 Connector Pin-Outs
The following section details the connector pin-outs for the Mini Compact Outdoor SSPA.

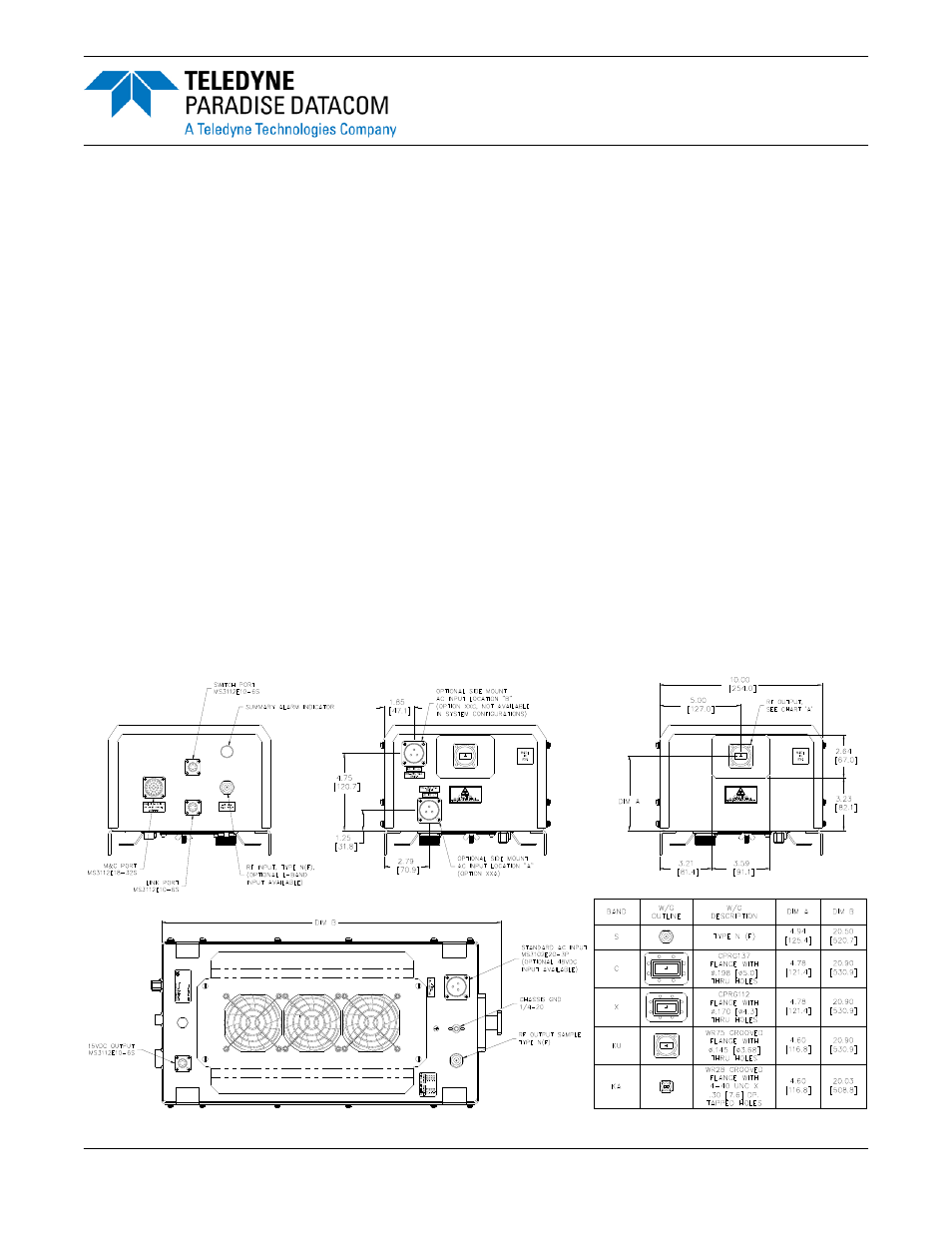

Figure 2-1 shows the overall dimensioned outline of a Compact Outdoor Amplifier. The
connector locations can be found in Figures 2-2 through 2-4.
Section 2: Installation
Figure 2-1: Outline, Compact Outdoor Solid State Amplifier
SWITCH
M & C
J4
STATUS SSPA
RF IN
J6
J1
J5 LINK
AU
X P O W E R
J8
M O D E L : XXXXXXXXXXXX
P/ N : L X X X XXX-X
S /N : XXXX
SA
MPL
E
J3
J7
RF OUT
J2
AC I
N
RF OUT
J2
