Operations Manual, HPA2, Compact Outdoor SSPA
208495 REV C
17
Caution should be observed here to ensure that the antenna or a suitable termination is
connected to this port before operating the amplifier. The amplifier is protected against full
reflection but dangerous levels of microwave energy can be present at this port.
2.2.3 RF Output Sample Port (J3) [N-type (F)]
The RF Output Sample port, J3, is located on the bottom of the amplifier as shown in Figure
2-4. This connector provides a -40 dBc sample of the amplifier’s output signal. It is a N-type
female connector.

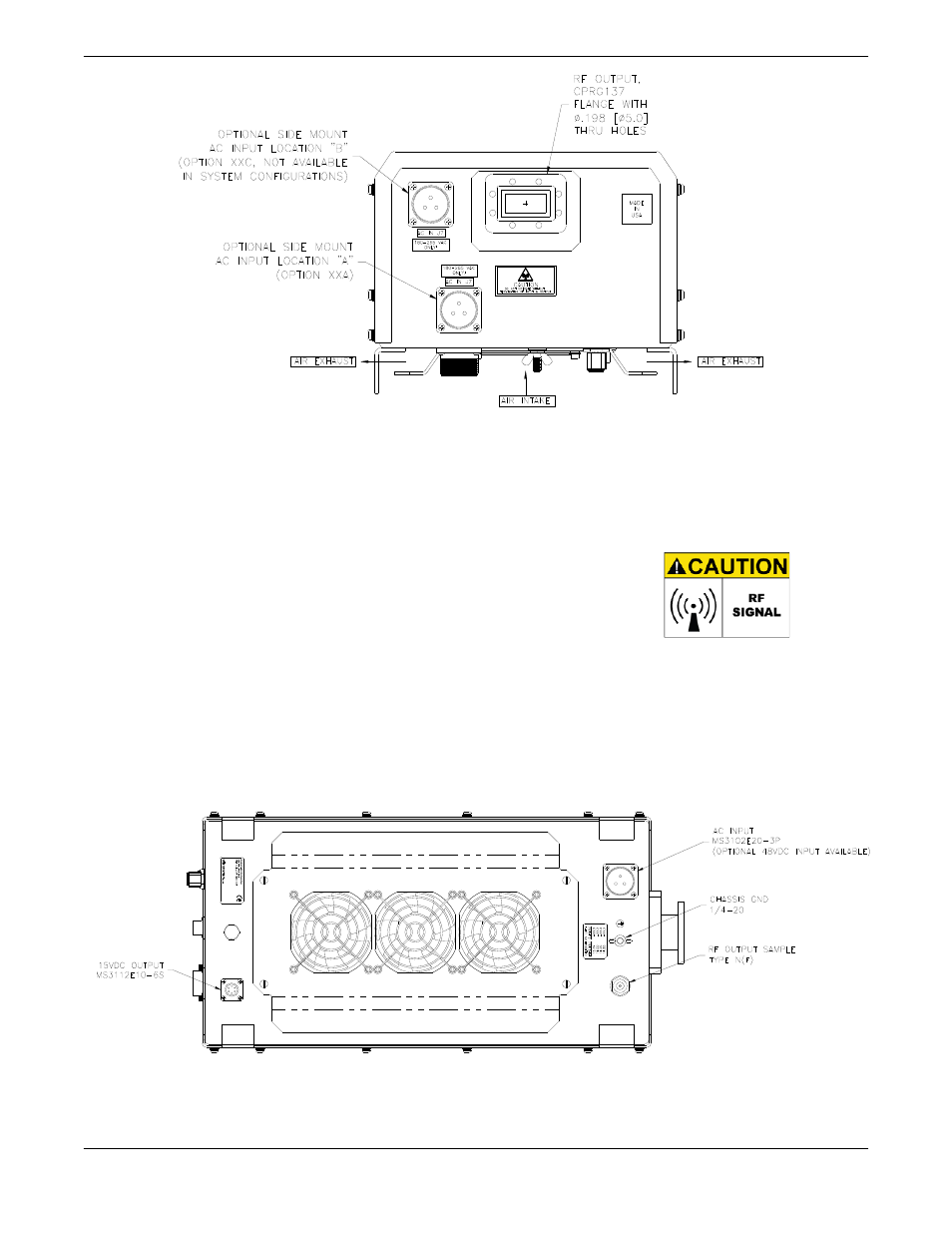

Figure 2-3: RF Output Side of C-Band Compact Outdoor SSPA
RF OUT
J2
WARNING! Radiation hazard when un-terminated. Do
not operate the SSPA without terminating the RF Output
(J2). Do not look directly into the RF Output waveguide.
Figure 2-4: Bottom View, Compact Outdoor Amplifier
AUX
P
O
W
E
R
J8
M
O
D
E
L
: XX
XX
XX
XX
XXX
X
P/
N
: L
X
X
X
XXX
-X
S/
N:
XX
XX
SA
MP
L
E
J3
J7
AC IN
