VoIP Status

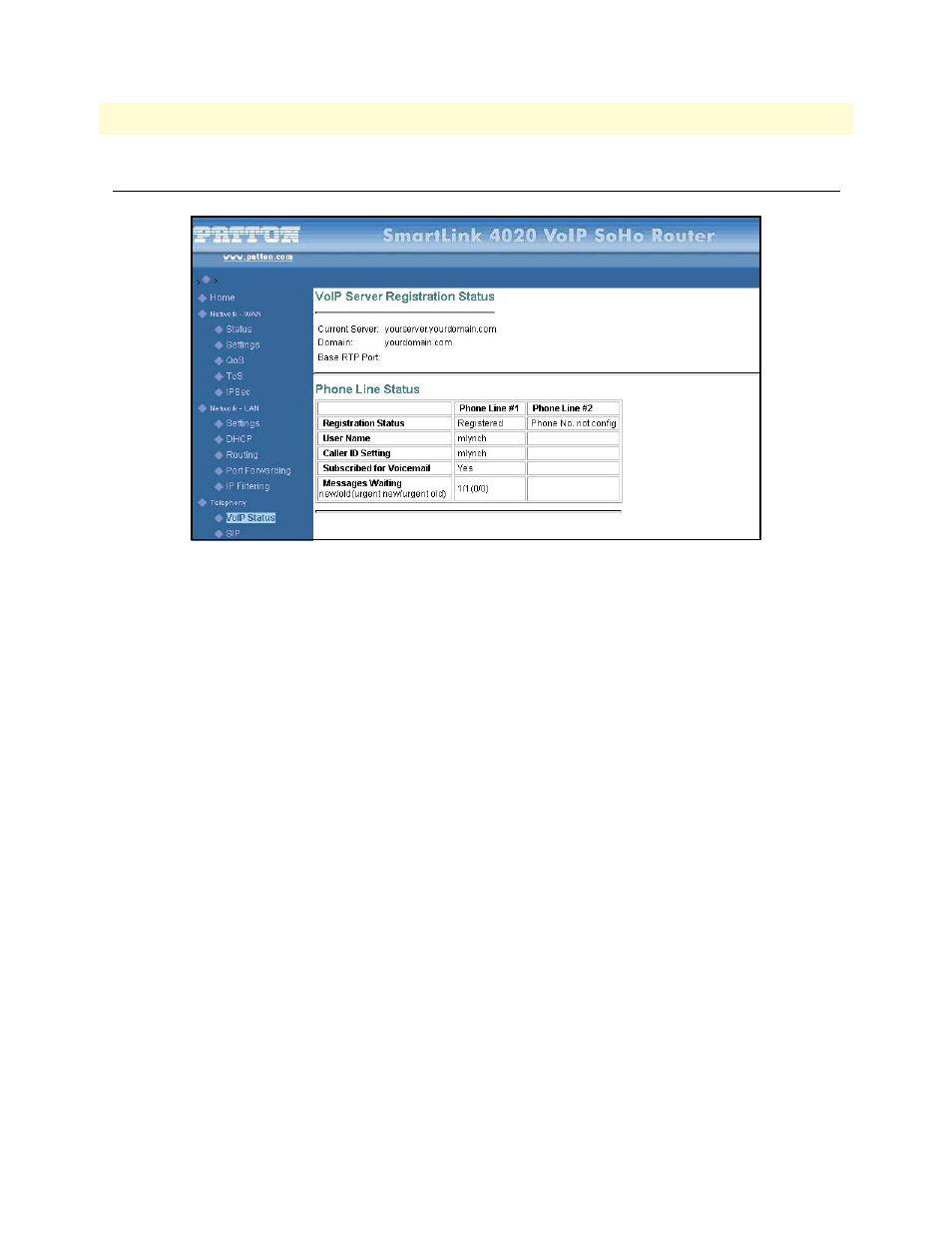

Figure 21. VoIP Status window
VoIP Server Registration Status
Current Server
Shows the current VoIP server that has been pre-defined or has been discovered using DNS service records
(DNS-SRV).
Domain
The VoIP domain name is the domain name that is hosting the VoIP server.
Base RTP Port
Displays the base RTP port number for the RTP-RTCP port pair.
Phone Line Status
The Phone Line Status table shows the current operational status of phones 1 and 2. It displays the VoIP regis-
tration status, the configured VoIP usernames, if the usernames are subscribed to voicemail and have messages
waiting, and the caller ID setting. The messages waiting will indicate the number of new messages, old mes-
sages, new urgent messages and old urgent messages.
Registration Status
Shows the currently operational status of the phones 1 and phones 2. The following registration status values
may be displayed:
• Online—The phone line is online, registered with the SIP server and ready to send and receive phone calls
using the SIP server.
• Registering—The SmartLink 4020 is in the process of registering with the VoIP server.
