Polycom RMX DOC2557C User Manual
Page 26
Chapter 1-Hardware Description
1-22
Modem
LNK
Green
ON with an active network
connection, flickers with activity.
Amber
ON when the active network is
10/100Mb, flickers with activity.
Additional LEDs
(4)
ERR
Red
ON - Major error on RTM IP
1500.
Flashes - During system
startup.
ACT
Red
ON - Packet flow to and from
the MCU chassis.
Flashes - During system
startup.
STBY
Green
ON - CPU & System are in a
standby (OFF) mode.
RDY
Green
ON - RTM IP 1500 has
successfully completed startup.
Flashes - During system
startup.

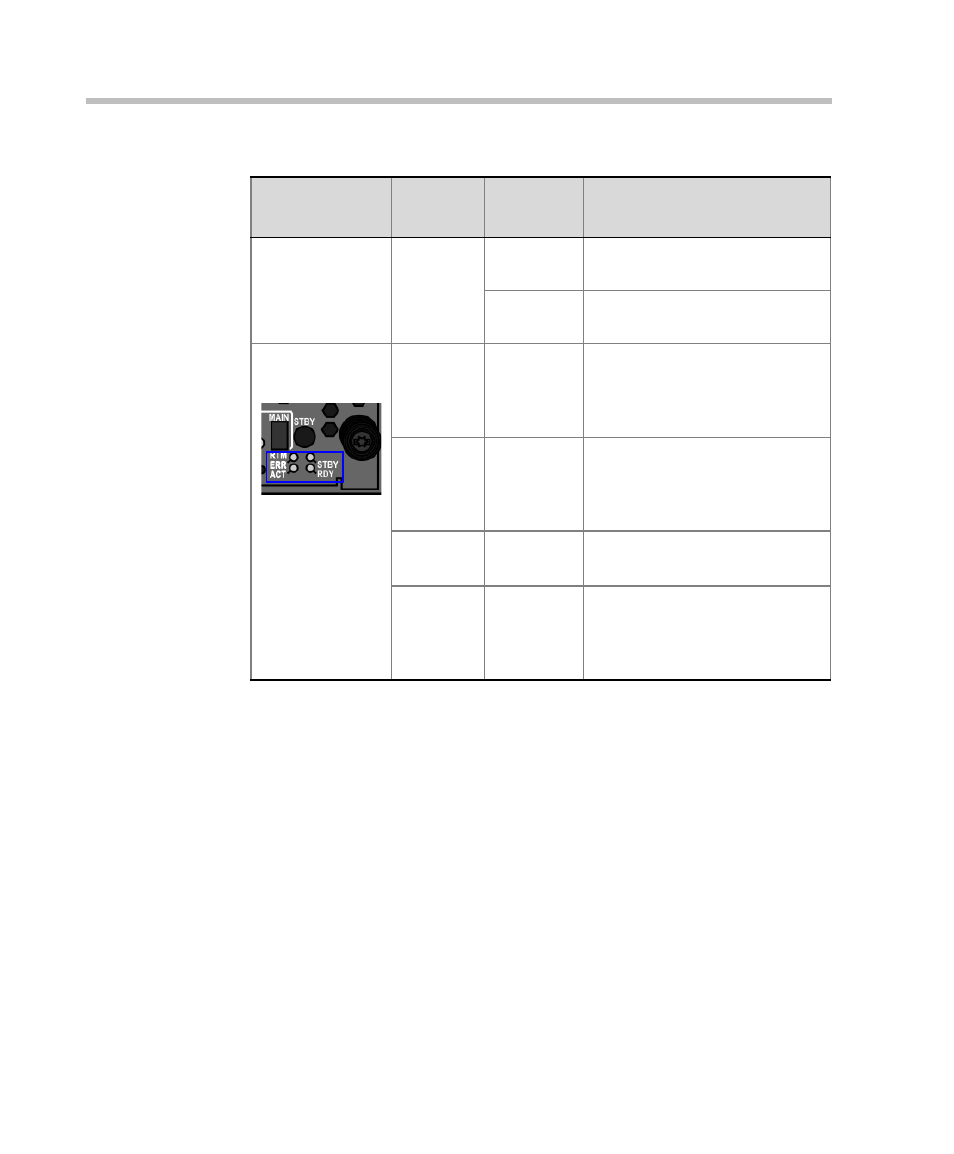

Table 1-10
RTM IP 1500 LEDs (Continued)
Component
LED
Name
LED Color
Indication
