Front panel components, Front panel components -15 – Polycom RMX DOC2557C User Manual
Page 19
Polycom RMX 1500 Hardware Guide
1-15
Front Panel Components
VGA Slot
Keyboard Slot
Mouse slot
ON/OFF
button
Front
LEDs
USB Slot

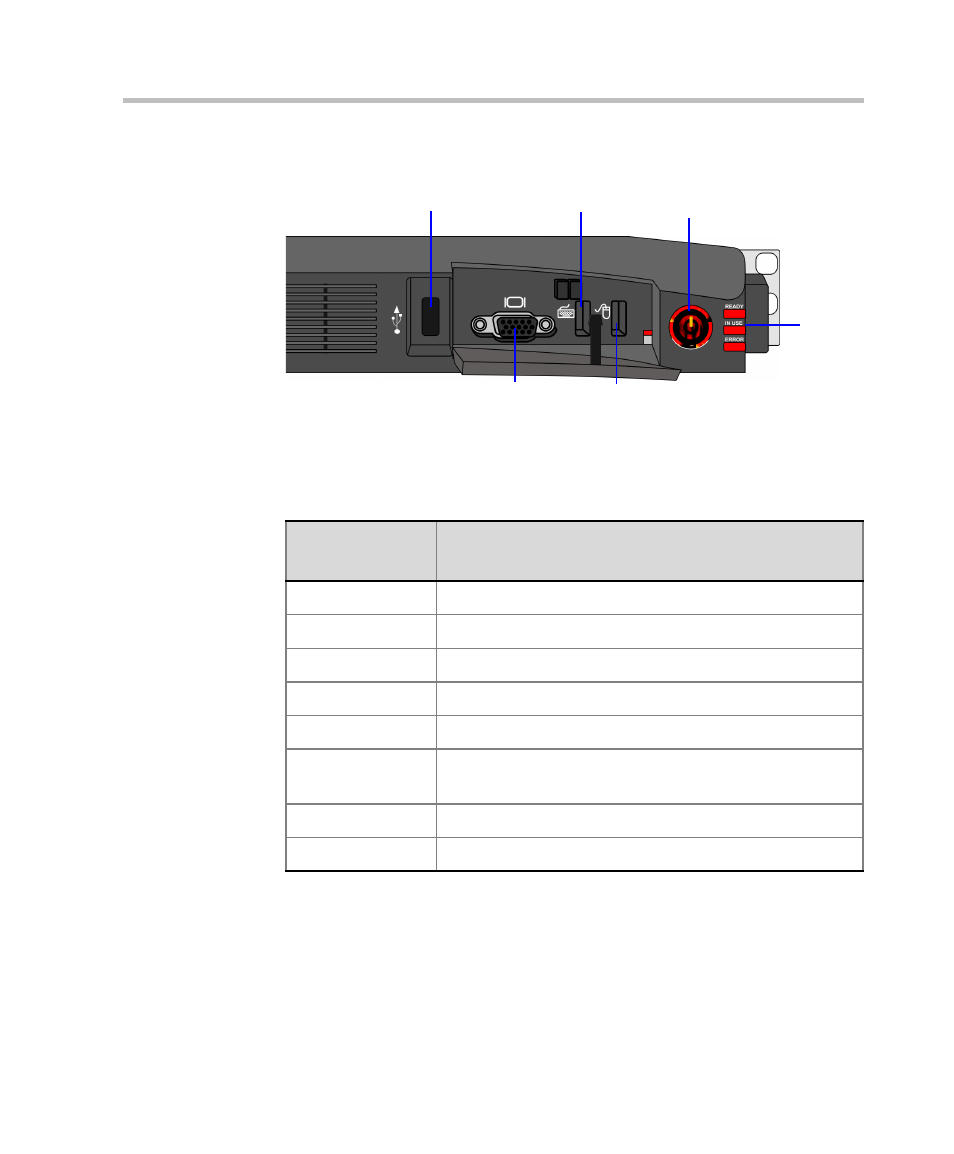

Figure 1-2
RMX 1500 Front Panel
Table 1-6
Polycom RMX 1500 Front Panel Description
SLOT/Button/
LED
Description
USB Slot
USB key connection, used for First time configuration.
VGA Slot
Monitor connection.
Keyboard Slot
Keyboard connection.
Mouse Slot
Mouse connection.
ON/OFF Button
Turn the RMX ON or OFF.
READY Led
Orange - RMX Starting up.
Green - RMX ready/online.
IN USE Led
Amber - In use, when a conference is active.
ERROR Led
Red - Error.
