Chapter 1-Hardware Description

1-12

Connecting Cables to the RMX 1500

To connect the cables:
•

For the RTM-IP 1500 module:
—

Connect the Media cable to LAN 2 port.

—

Connect the Network cables to the MNG (Signaling) port &

MNGB (Management Network) port.

—

(Optional) Connect the Shelf Management cable to the Shelf port.

•

For the RTM ISDN 1500 module:
—

Connect the E1/T1 cables to their PRI (1-4) ports.

E1/T1 PRI
Connection(s)

Power Cable

LAN 2; media, MNG; signaling,
MNGB; management & Shelf

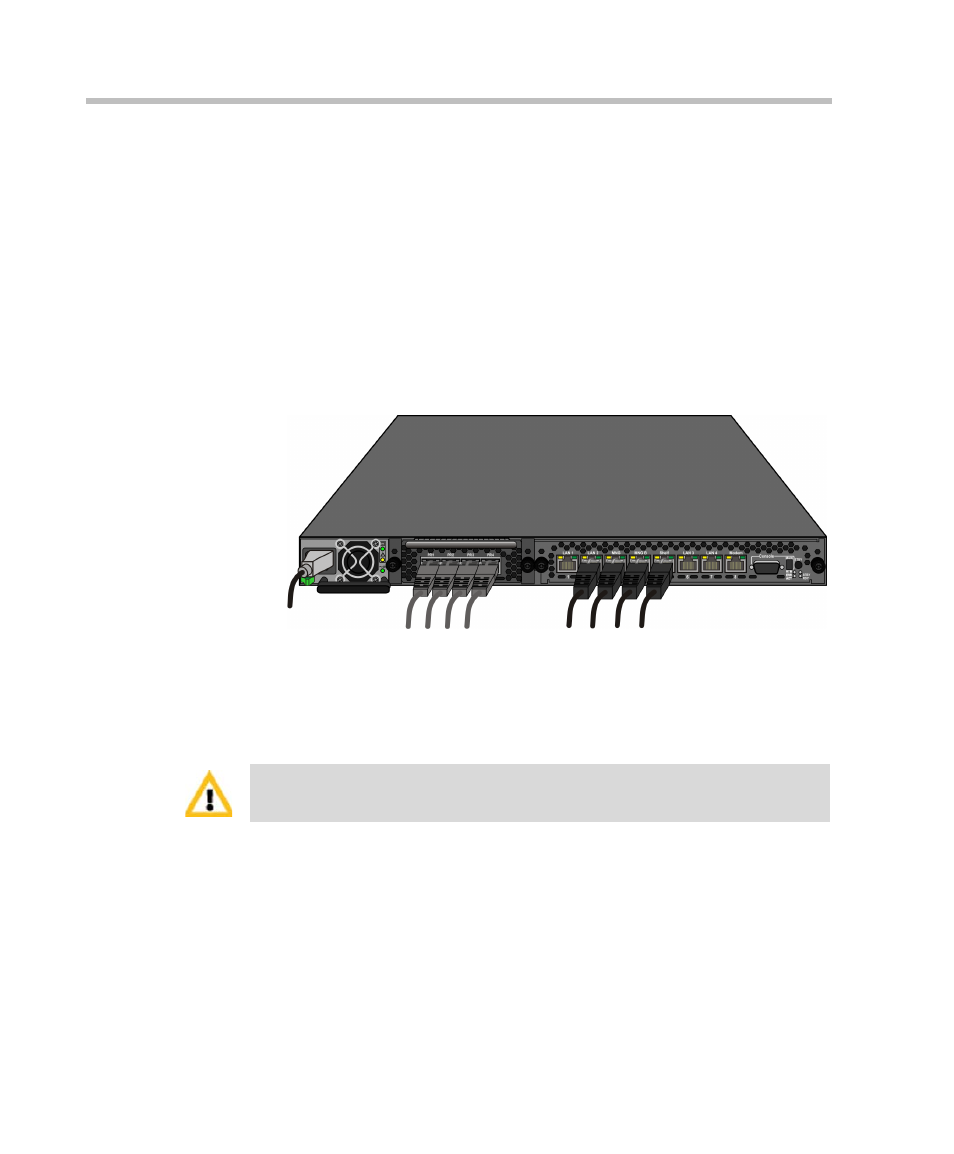

Figure 1-1

RMX 1500 Rear Panel View with AC Power and Communication

Cables

The LAN 1, LAN3, LAN4 and Modem ports are not be used and the plastic caps
covering those ports should not be removed.

First-time Power-up

For first entry installation, you must insert the USB key containing the
modified IP addresses in USB slot on the RMX’s front panel. For more
information see, the RMX 1500/2000/4000 Getting Started Guide,
"Procedure 1: First-time Power-up” on page

2-19

Turn ON the power by pressing on the power switch located on the
front panel of the RMX 1500.
