1. Introduction and Installation
13 For Fax Advantage assistance, call 1-800-435-7329.
Installation (Base Unit)

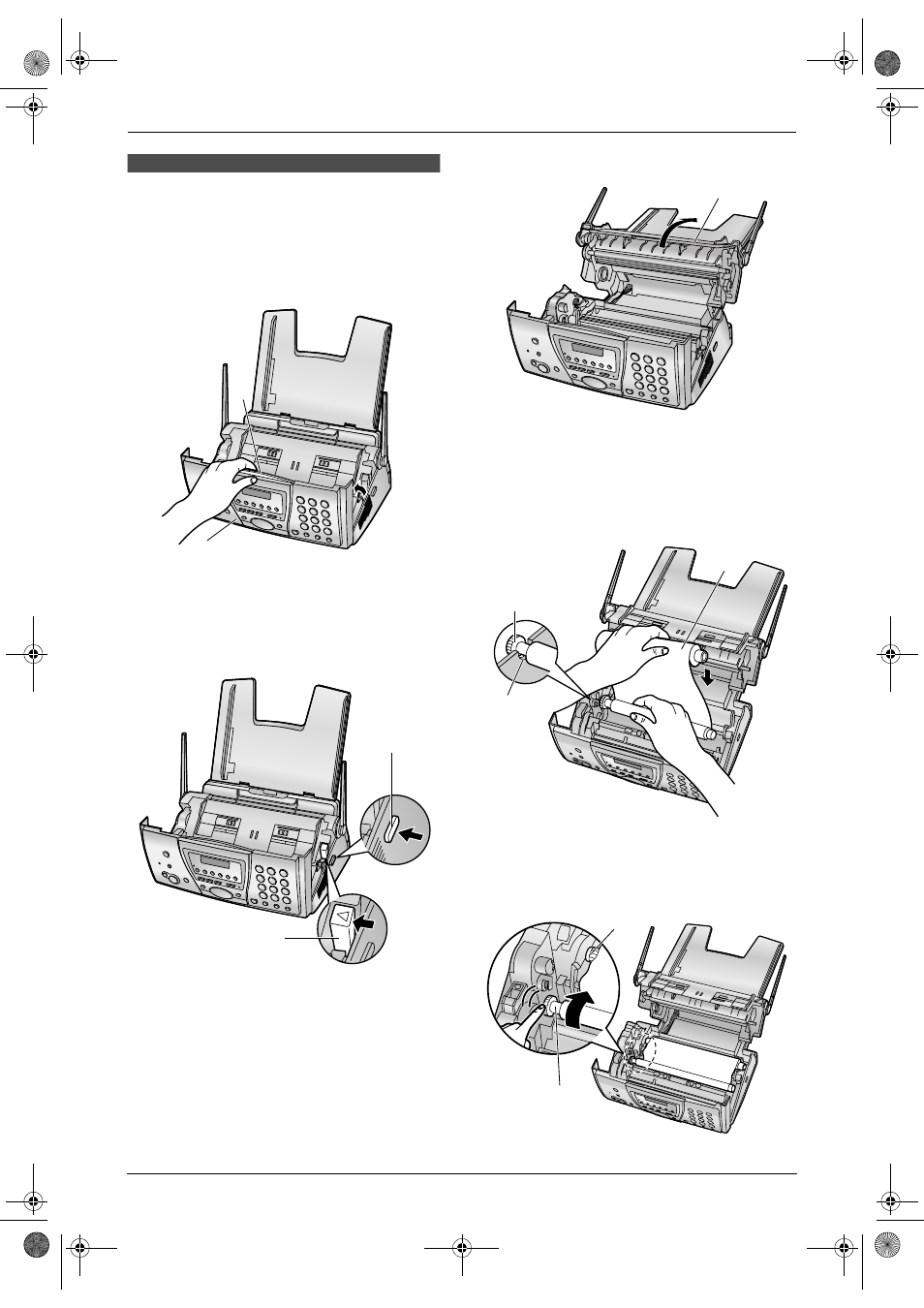

1.8 Ink film
1.8.1 Installing the ink film
1 Open the front cover ( 1) by pulling up the
center part (
2).
2 Release the back cover by pushing the green
button (
1) on the right side of the unit.
OR
Release the back cover by pushing in the
green lever (
2) in the unit.
3 Open the back cover ( 1).
4 Insert the gear of the blue core (
1) into the
left slot of the unit ( 2). Insert the rear ink film
roll (
3).
L The ink film is safe to touch, and will not
rub off on your hands like carbon paper.
5 Turn the gear of the blue core ( 1) in the
direction of the arrow until the white core (
2)
begins to turn.
1
2
2
1
1
3
2
1
1
2
